Hitachi DVPF2E - TV Connection Methods; Basic Audio and Video Connections

English
–
19
–
EN
2C15

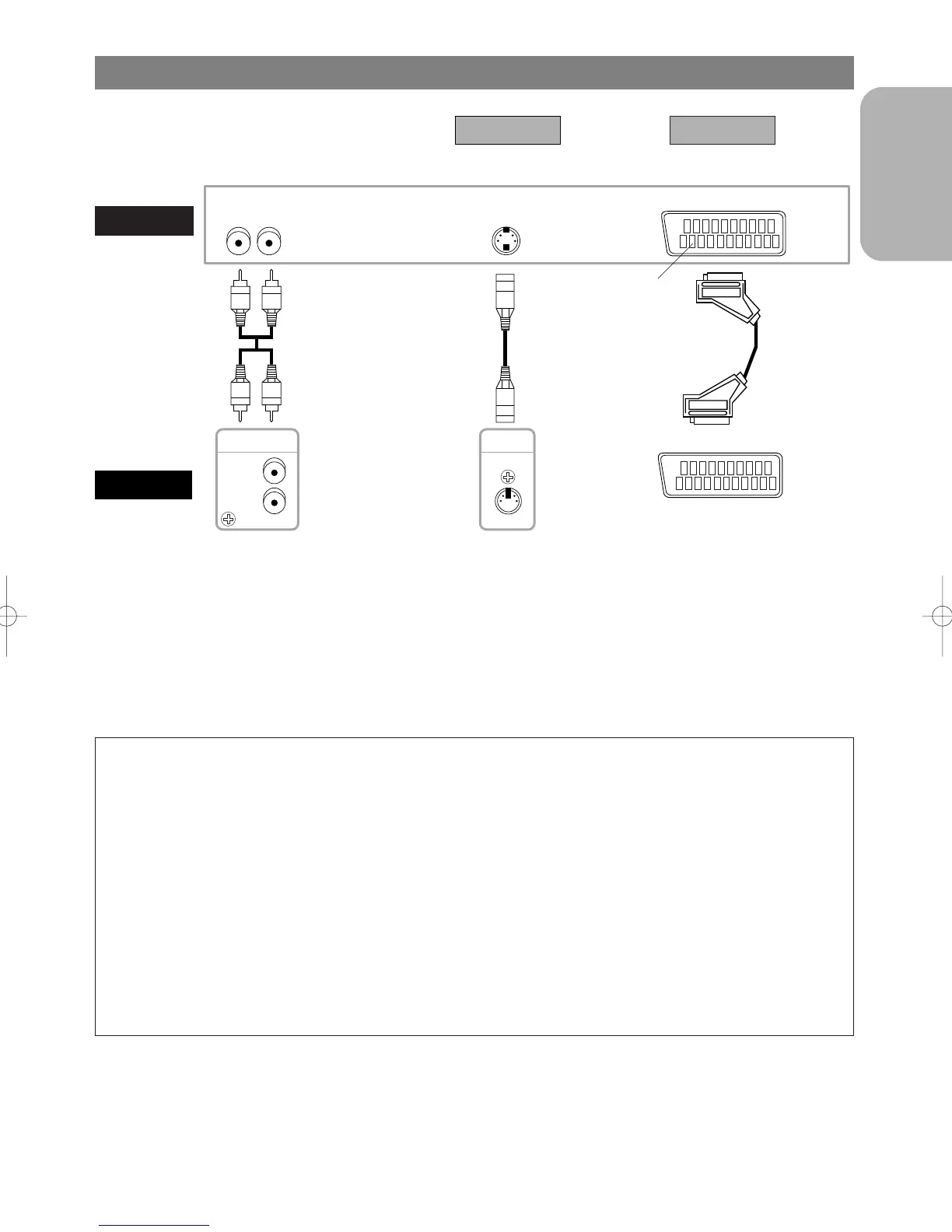

CONNECTION TO A TV (FOR DVD/VCR)
DVD/VCR
Analog Audio out
(DVD only)
• Method 1 DVD/VCR Player + TV with S-Video Input Jack
• Method 2 DVD/VCR Player + TV with 21 pin scart Jack
R L S-VIDEO IN
or
AV1 (TV)
ANALOG
AUDIO OUT
R
L
S-VIDEO
OUT
TV
Method 1
Best picture
Basic Audio
Method 2
Good picture
S-Video out
(DVD only)
EURO Audio/Video out
AV Cable
S-Video
Cable
Euro
audio/video
Cable
Notes
¡If you use the Euro audio/video cable, it is not necessary to connect the analog audio cable.
¡Connect the DVD/VCR player directly to a TV. If the A/V cables are connected to a DVD/VCR, pictures may
be distorted due to the copy protection system.
HOW TO CONNECT TO A TV WITHOUT AUDIO/VIDEO INPUT JACKS
If your TV does not have a Scart jack, it is still possible to connect this DVD/VCR player to your TV’s 75-
ohm coaxial antenna terminal using a commercially available Stereo Audio/Video RF Modulator, not includ-
ed. Connect the audio and video outputs of the DVD/VCR player to the audio and video inputs on the RF
Modulator, and then connect the coaxial output of the RF Modulator (usually marked “TO TV”) to the 75 ohm
coaxial antenna terminal on your TV. Follow the instruction supplied with the RF Modulator for more details.
If your TV’s 75 ohm coaxial antenna terminal is already occupied by an antenna or cable box connection,
remove that cable from your TV’s antenna terminal and reconnect it to the coaxial antenna input terminal
of the RF Modulator (usually marked “ANT IN”), then connect the RF modulator to your TV’s antenna
terminal as described above.
Note
¡The picture quality from DVD discs will not be as good if the DVD/VCR player is connected to the TV’s
antenna terminal through an RF Modulator.
21 pin Scart
jack
