Hitachi HCP Anywhere Edge User Manual

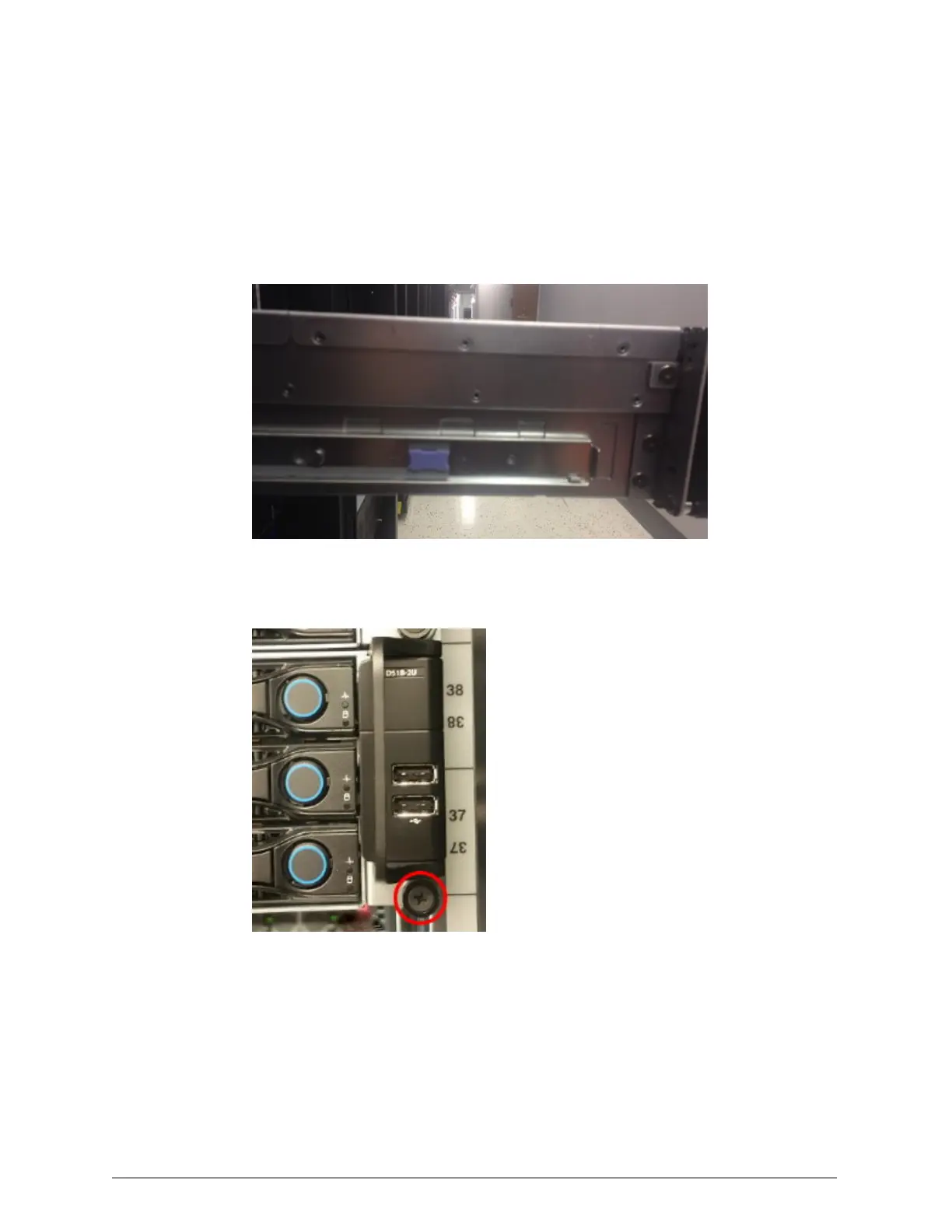

3. Fit each inner rail into the inside of the inner part of the corresponding
outer rail. Then push the server back into the rack as far as the server
goes.
4. While pushing back or pulling forward the purple tabs on the outsides of
both inner rails on the server, push back on the server to release it. Then
slide the server all the way back into the rack.
5. Using the #1 Phillips screwdriver, screw in the black locking screw below
the handle on each side of the front of the server.
Step 4: Connect the server to the PDUs
The server connects to two PDUs — one on the left side of the rack and one
on the right.
20
Chapter 2: Mounting the HCP Anywhere edge appliance into a rack
HCP Anywhere Edge Appliance On-Site Setup and Recovery
Step 4: Connect the server to the PDUs
