Hitachi HCP Anywhere Edge User Manual

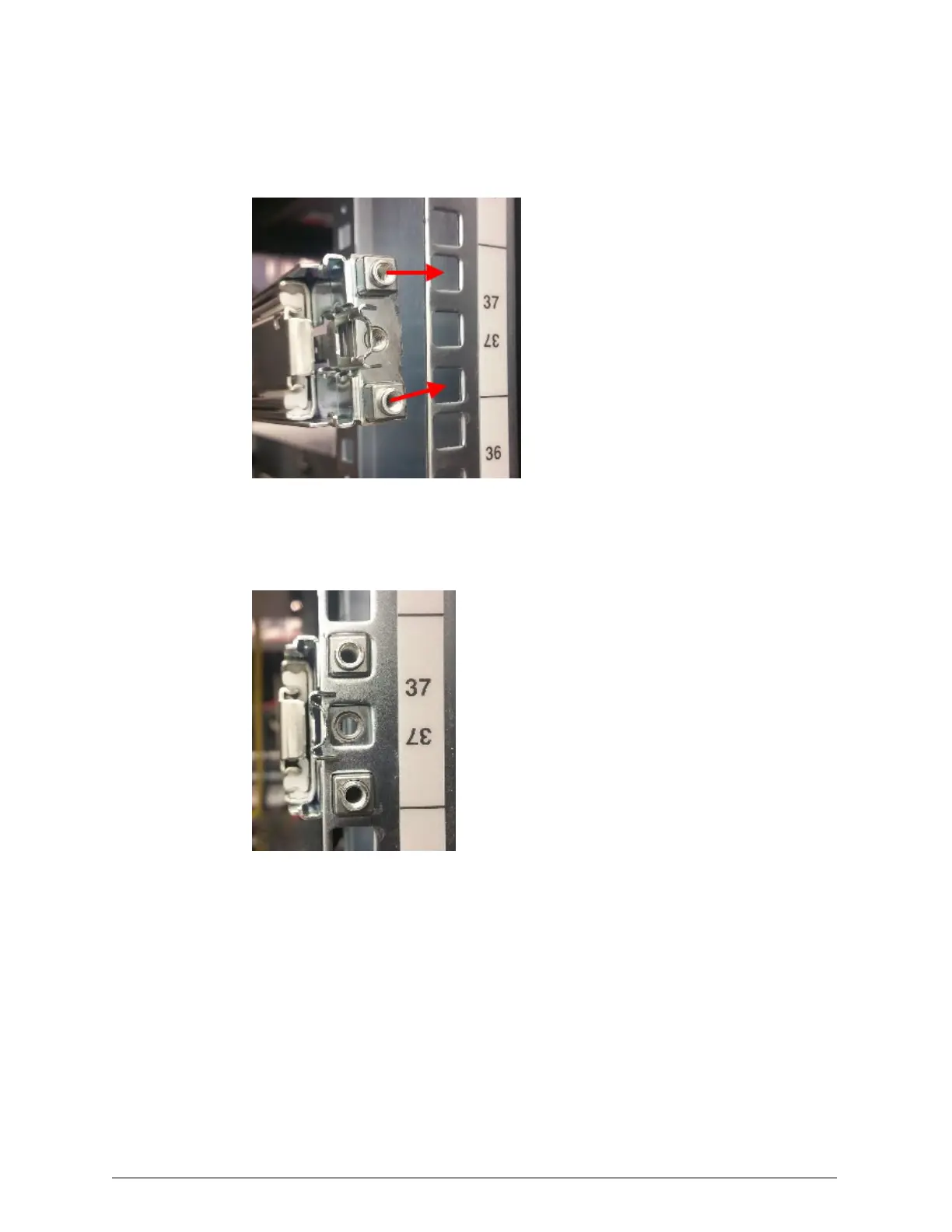

3. At the front of the rack, align the two square studs at the front of the
outer rail with the back of the top and bottom square holes for the
applicable rack unit in vertical mounting rail.
4. Fit the studs into the holes in the vertical mounting rail and pull the
outer rail toward the front of the rack until the front of the outer rail
locks into place.
Step 3: Mount the server in the rack
To mount the server in the rack:
1. Ensure that the inner part of each outer rail for the server is pushed all
the way back into the rack.
2. At the front of the rack, align the rear of the inner rails on the server
with the front of the outer rails on the rack.
Chapter 2: Mounting the HCP Anywhere edge appliance into a rack
19
HCP Anywhere Edge Appliance On-Site Setup and Recovery
Step 3: Mount the server in the rack
