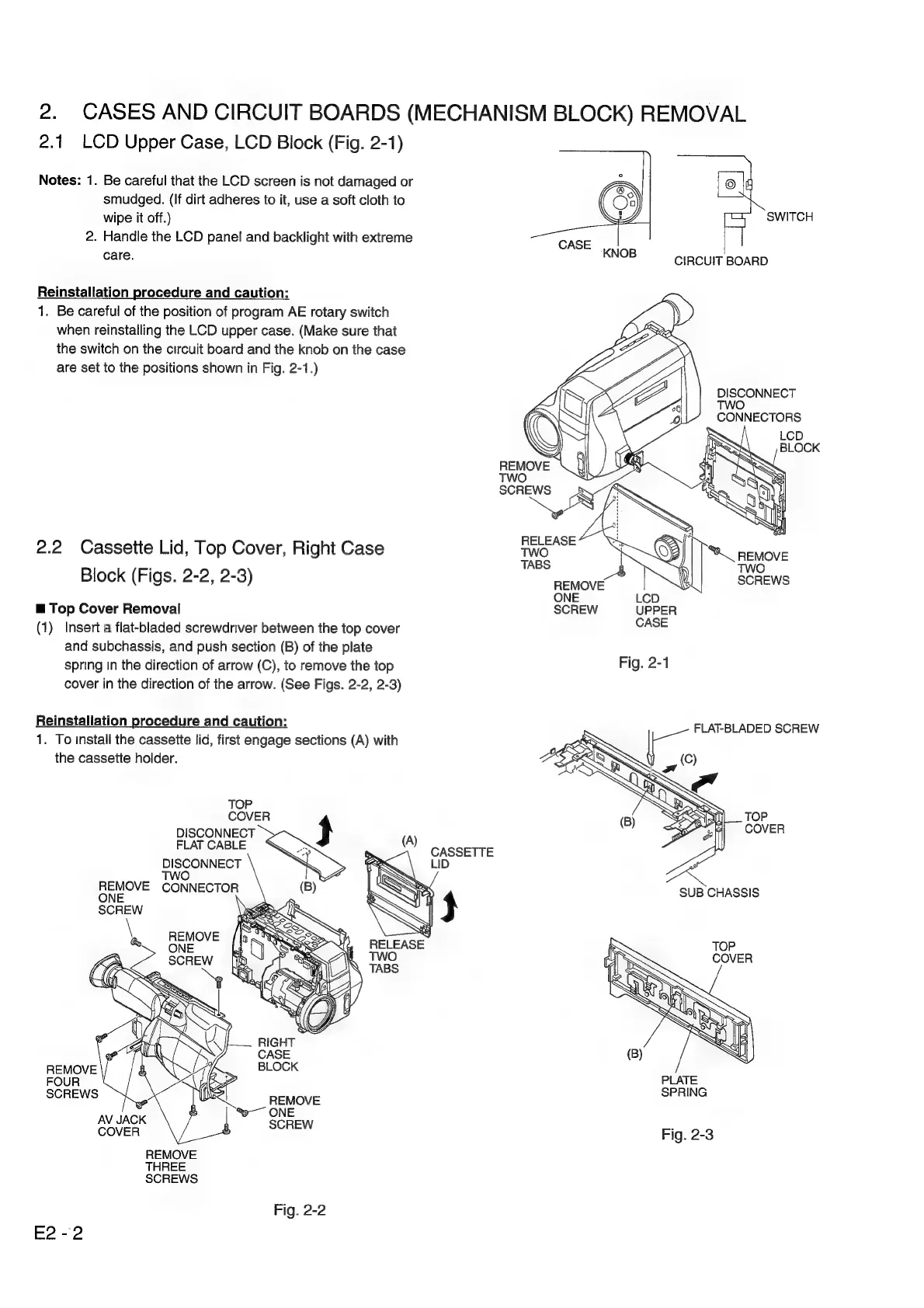

2.
CASES
AND
CIRCUIT
BOARDS
(MECHANISM
BLOCK)
REMOVAL
2.1
LCD
Upper
Case,
LCD
Block
(Fig.
2-1)
Notes:
1.
Be
careful
that
the
LCD
screen
is
not
damaged
or
©
smudged.
(If
dirt
adheres
to
it,
use
a
soft
cloth
to
wipe
it
off.)
SWITCH
2.
Handle
the
LCD
panel
and
backlight
with
extreme
care.
Oe
CIRCUIT
BOARD
Reinstallation
procedure
and
caution:
1.
Be
careful
of
the
position
of
program
AE
rotary
switch
when
reinstalling
the
LCD
upper
case.
(Make
sure
that
the
switch
on
the
circuit
board
and
the
knob
on
the
case
are
set
to
the
positions
shown
in
Fig.
2-1.)
2.2
Cassette
Lid,
Top
Cover,
Right
Case
Block
(Figs.
2-2,
2-3)
m@
Top
Cover
Removal
(1)
Insert
a
flat-bladed
screwdriver
between
the
top
cover
and
subchassis,
and
push
section
(B)
of
the
plate
spring
in
the
direction
of
arrow
(C),
to
remove
the
top
cover
in
the
direction
of
the
arrow.
(See
Figs.
2-2,
2-3)
Reinstallation
procedure
and
caution:
1.
To
install
the
cassette
lid,
first
engage
sections
(A)
with
the
cassette
holder.
TOP
COVER
DISCONNECT
~>
}
(A)
FLAT
CABLE
NS
CASSETTE
DISCONNECT
me
LID
REMOVE
CONNECTOR
ONE
ER
!
Sr
SCREWS
oe
acuevE
AV
JACK
psec
ay
COVER
Fig.
2-3
REMOVE
THREE
SCREWS
Fig.
2-2
F2-2
