Hitachi VIV-E553LE - Electrical Parts List

SYMBOL
NO
A710
711
901
902
903
904
905
906
907
912
951
953
954
955
956
957
958
959
960
961
A\ 802
A\ 802
A\ 802
804
804
805
806
807
P-NO
5242113
4344292
7775946
7778966
7775945
8619003
7773891
8650103
MJ10221
8650104
8700268
7775911
7775913
8712970
8712974
8712968
MK11551
8714026
7778394
8711105
TS15053
TS$15054
TS15055
5856293
EW10943
HL11045
TS12981
TS$14621
DESCRIPT1ON
DEFLECTION YOKE
SPACER
SCREW (2X6)
SCREW (2X6)
SCREW (2X5)
SCREW 1. 7X5
SCREW
SCREW (2X3)
SCREW
SCREW
SCREW (1. 7X3)
SCREW (1. 4X1. 6)
SCREW (1. 4X2. 0)
SCREW (1. 4X4)
SCREW (1. 4X6)
SCREW (1. 4X3P)
SCREW (1. 7X3. 0)
SCREW (1. 4X3. 5)
E RING
SCREW (2X5)
ACCESSARIES
ADAPTOR, AC (VM-ACESE)
ADAPTOR, AC (VM-ACE5E (UK) )
ADAPTOR, AC (VM-ACE5E (AU) )
AV OUTPUT CORD [TYPE 755, 855, 955]
CORD [TYPE 553, 555, 558, 658]
REMOTE HAND SET (VM-RME411AR)
AV PLUG ADAPTERLTYPE 553, 555, 755, 855, 955]
STRAP, SHOULDER

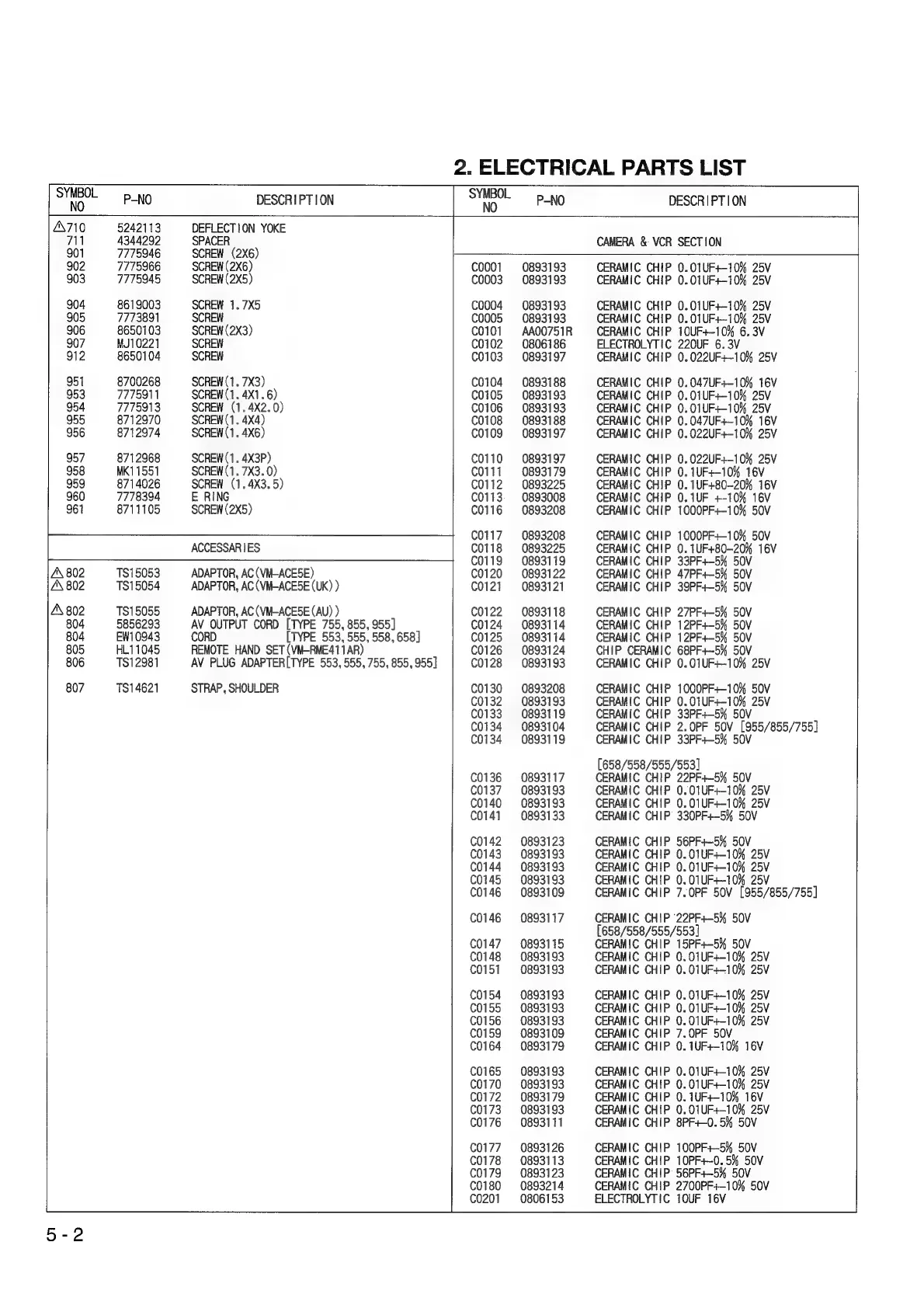

2. ELECTRICAL PARTS LIST
SYMBOL
NO
C0001
C0003
C0004
C0005
C0101
C0102
C0103
C0104
C0105
C0106
C0108
C0109
C0110
C0111
C0112
C0113
C0116
C0117
C0118
C0119
c0120
c0121
C0122
C0124
€0125
C0126
€0128
C0130
C0132
C0133
C0134
C0134
C0136
C0137
C0140
C0141
c0142
C0143
c0144
C0145
C0146
C0146
C0147
C0148
c0151
c0154
C0155
C0156
C0159
C0164
C0165
C0170
C0172
C0173
C0176
C0177
C0178
C0179
C0180
¢0201
P-NO
0893193
0893193
0893193
0893193
AAQ0751R
0806186
0893197
0893188
0893193
0893193
0893188
0893197
0893197
0893179
0893225
0893008
0893208
0893208
0893225
0893119
0893122
0893121
0893118
0893114
0893114
0893124
0893193
0893208
0893193
0893119
0893104
0893119
0893117
0893193
0893193
0893133
0893123
0893193
0893193
0893193
0893109
0893117
0893115
0893193
0893193
0893193
0893193
0893193
0893109
0893179
0893193
0893193
0893179
0893193
0893111
0893126
0893113
0893123
0893214
0806153
DESCRIPT1ON
CAMERA & VCR SECTION
CERAMIC CHIP 0.O1UF+-10% 25V
CERAMIC CHIP 0.O1UF+-10% 25V
CERAMIC CHIP 0.01UF+-10% 25V
CERAMIC CHIP 0.01UF+-10% 25V
CERAMIC CHIP 10UF+-10% 6. 3V
ELECTROLYTIC 220UF 6. 3V
CERAMIC CHIP 0.022UF+~10% 25V
CERAMIC CHIP 0.047UF+-10% 16V
CERAMIC CHIP 0.01UF+-10% 25V
CERAMIC CHIP 0.01UF+-10% 25V
CERAMIC CHIP 0.047UF+-10% 16V
CERAMIC CHIP 0.022UF+-10% 25V
CERAMIC CHIP 0.022UF+-10% 25V
CERAMIC CHIP 0. 1UF+-10% 16V
CERAMIC CHIP 0. 1UF+80-20% 16V
CERAMIC CHIP 0.1UF +-10% 16V
CERAMIC CHIP 1000PF4+-10% 50V
CERAMIC CHIP 1000PF+-10% 50V
CERAMIC CHIP 0. 1UF+80-20% 16V
CERAMIC CHIP 33PF+-5% 50V
CERAMIC CHIP 47PF+-5% 50V
CERAMIC CHIP 39PF+-5% 50V
CERAMIC CHIP 27PF+-5% 50V
CERAMIC CHIP 12PF+-5% 50V
CERAMIC CHIP 12PF+-5% 50V
CHIP CERAMIC 68PF+-5% 50V
CERAMIC CHIP 0.01UF+-10% 25V
CERAMIC CHIP 1000PF4+-10% 50V
CERAMIC CHIP 0. O1UF+-10% 25V
CERAMIC CHIP 33PF4-5% 50V
CERAMIC CHIP 2.0PF 50V [955/855/755]
CERAMIC CHIP 33PF+-5% SOV
[658/558/555/553]
CERAMIC CHIP 22PF+-5% 50V
CERAMIC CHIP 0..01UF4-10% 25V
CERAMIC CHIP 0.01UF+-10% 25V
CERAMIC CHIP 330PF4—-5% 50V
CERAMIC CHIP 56PF+-5% 50V
CERAMIC CHIP 0.01UF+-10% 25V
CERAMIC CHIP 0.01UF+-10% 25V
CERAMIC CHIP 0.01UF+-10% 25V
CERAMIC CHIP 7.0PF 50V [955/855/755]
CERAMIC CHIP 22PF+-5% 50V
[658/558/555/553]
CERAMIC CHIP 15PF+-5% 50V
CERAMIC CHIP 0.01UF+-10% 25V
CERAMIC CHIP 0.01UF+-10% 25V
CERAMIC CHIP 0.01UF+-10% 25V
CERAMIC CHIP 0.01UF4+-10% 25V
CERAMIC CHIP 0.01UF+-10% 25V
CERAMIC CHIP 7.0PF 50V
CERAMIC CHIP 0. 1UF+-10% 16V
CERAMIC CHIP 0.01UF+-10% 25V
CERAMIC CHIP 0.01UF4+-10% 25V
CERAMIC CHIP 0. 1UF+-10% 16V
CERAMIC CHIP 0. O1UF+-10% 25V
CERAMIC CHIP 8PF+-0.5% 50V
CERAMIC CHIP 100PF+-5% 50V
CERAMIC CHIP 10PF+-0.5% 50V
CERAMIC CHIP 56PF+-5% 50V
CERAMIC CHIP 2700PF+-10% 50V
ELECTROLYTIC 10UF 16V
