MECHANISM

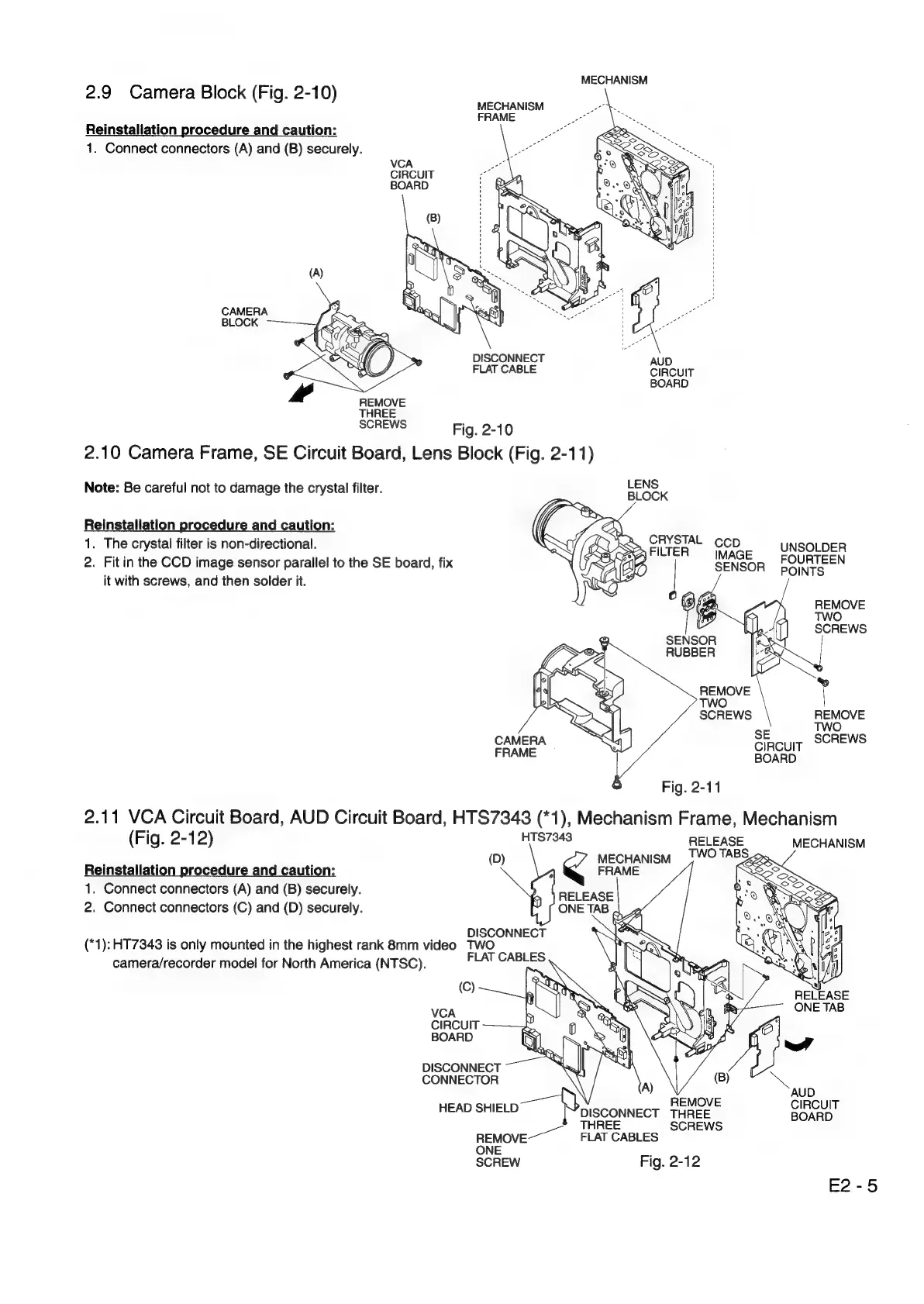

2.9 Camera Block (Fig. 2-10)
MECHANISM
FRAME
Reinstaliation procedure and caution:
1. Connect connectors (A) and (B) securely.
DISCONNECT
FLAT CABLE
Fig. 2-10
2.10 Camera Frame, SE Circuit Board, Lens Block (Fig. 2-11)
Note: Be careful not to damage the crystal filter. LENS
Reinstallation procedure and caution:
1. The crystal filter is non-directional.
2. Fit in the CCD image sensor parallel to the SE board, fix
it with screws, and then solder it.
RYSTAL
ccp
TER
Mage
—_eNSctPeR
| SENSOR pOINTS
REMOVE
TWO
REMOVE y
TWO
SCREWS aaah
E
CAMERA SCREWS
CIRCUIT
FROME BOARD
Fig. 2-11
2.11 VCA Circuit Board, AUD Circuit Board, HTS7343 (*1), Mechanism Frame, Mechanism
(Fig. 2-12) HTS7343 RELEASE MECHANISM
(D)
MECHANISM
WO
TABS
Reinstallation procedure and caution: FRAME
1. Connect connectors (A) and (B) securely. RELEASE
2. Connect connectors (C) and (D) securely. ONE TAB
DISCONNECT
(*1): HT7343 is only mounted in the highest rank 8mm video TWO
camera/recorder model for North America (NTSC). Bg siieiaerong
(C)
VCA
CIRCUIT
BOARD
DISCONNECT ha
CONNECTOR \
REMOV
HEAD suet Neconnect THREE
SCREWS
THREE
REMOVE _ FLAT CABLES
ONE
SCREW Fig. 2-12
