Hitachi VM-2300A User Manual

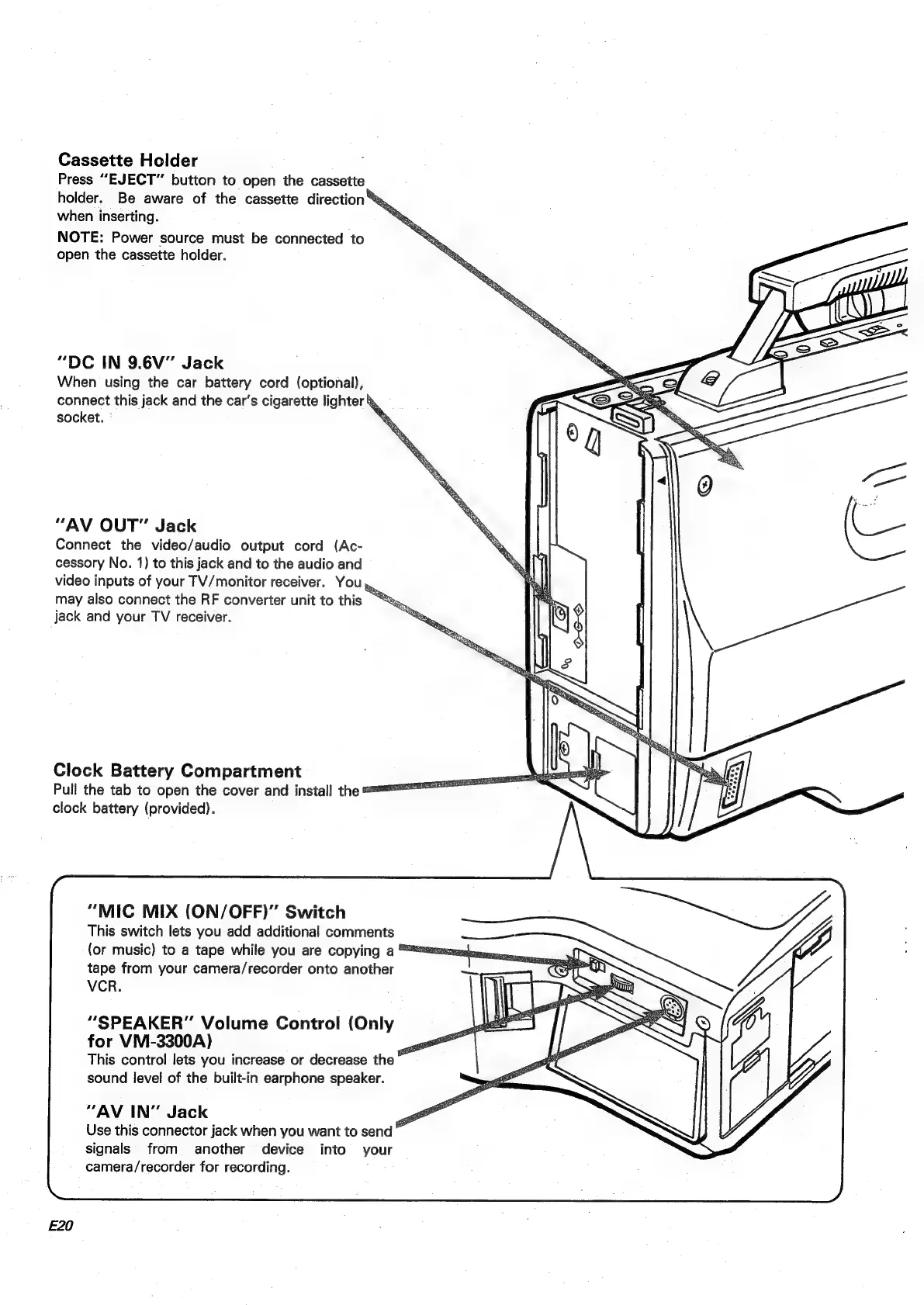

Cassette Holder
Press “EJECT” button to open the cassette |
holder. Be aware of the. cassette direction®
when inserting.
NOTE: Power source must be connected to
open the cassette holder.
“DC IN 9.6V” Jack
When using the car battery cord (optional),
connect this jack and the car’s cigarette lighter &,
socket. °
“BV OUT” Jack
Connect the video/audio output cord (Ac-
cessory No. 1) to this jack and to the audio and
video inputs of your TV/monitor receiver. You te
may also connect the RF converter unit to this =
jack and your TV receiver.
Clock Battery Compartment
Pull the tab to open the cover and install the ===
clock battery (provided).
“MIC MIX (ON/OFF)” Switch
This switch lets you add additional comments
(or music) to a tape while you are copying a ===,
tape from your camera/recorder onto another
VCR.
“SPEAKER” Volume Control (Only
for VM-3300A) os
This control lets you increase or decrease the ~
sound level of the built-in earphone speaker.
“AV IN” Jack i
Use this connector jack when you want to send —
signals from another device into your
camera/recorder for recording.
E20
