Hitachi ZAXIS 120-3 class - Fuse Box

OPERATOR'S STATION
1-57

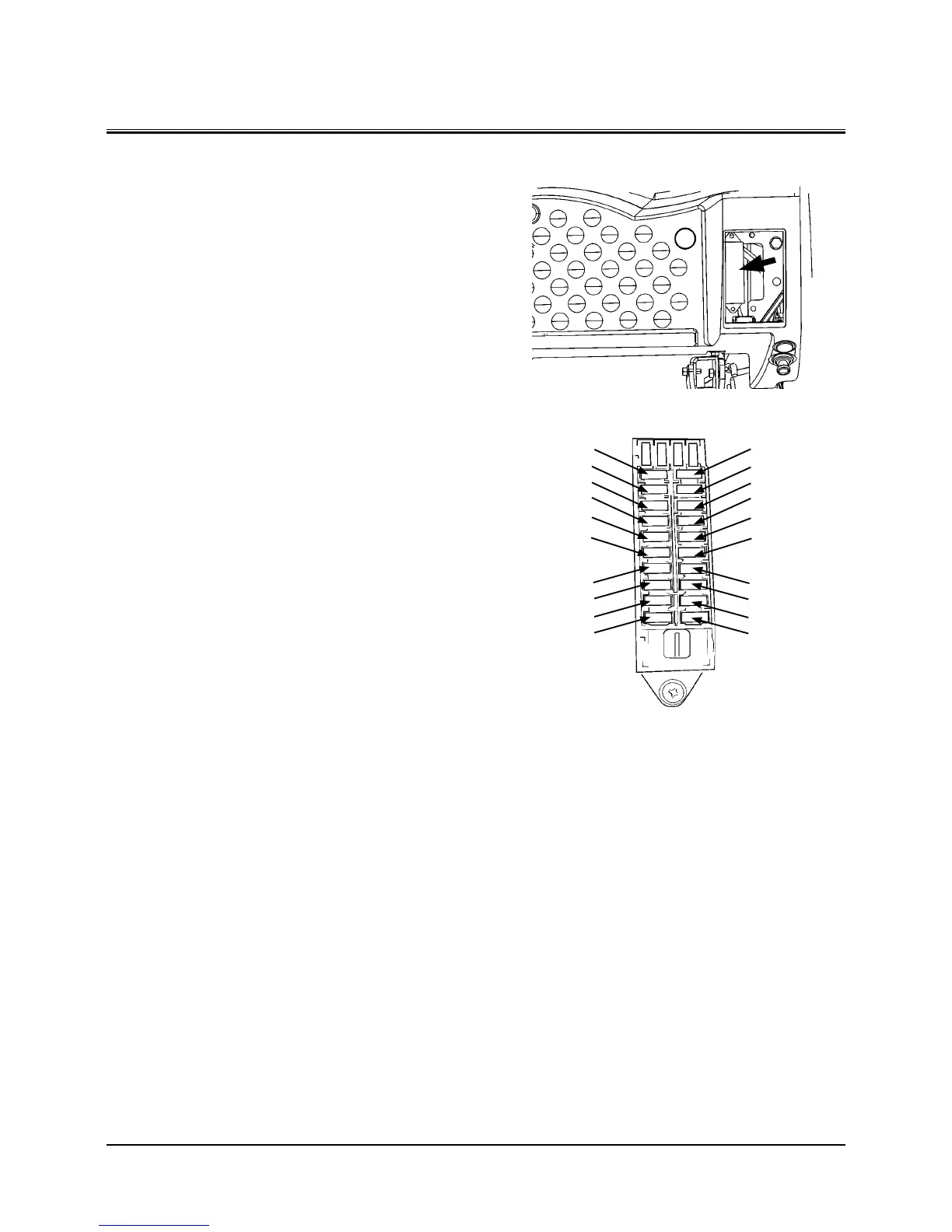

FUSE BOX
10- CONTROLLER
5A
20- OPTION3
5A
9- BACKUP
10A
19- SW. BOX
5A
8- ECM
30A
18- POWER ON
5A
7- LUBRICATOR
10A
17- AIRCON.
5A
6- OPTION2
10A
16- GLOW RELAY
5A
5- OPTION1
5A
15- AUXILIARY
10A
4- SOLENOID
10A
14- FUEL PUMP
5A
3- HEATER
20A
13- LIGHTER
10A
2- WIPER
10A
12- ROOM LAMP/RADIO
5A
1- LAMP
20A
11- HORN
10A
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
M1U1-01-026
M1GR-01-003
