SPECIFICATIONS
12-34

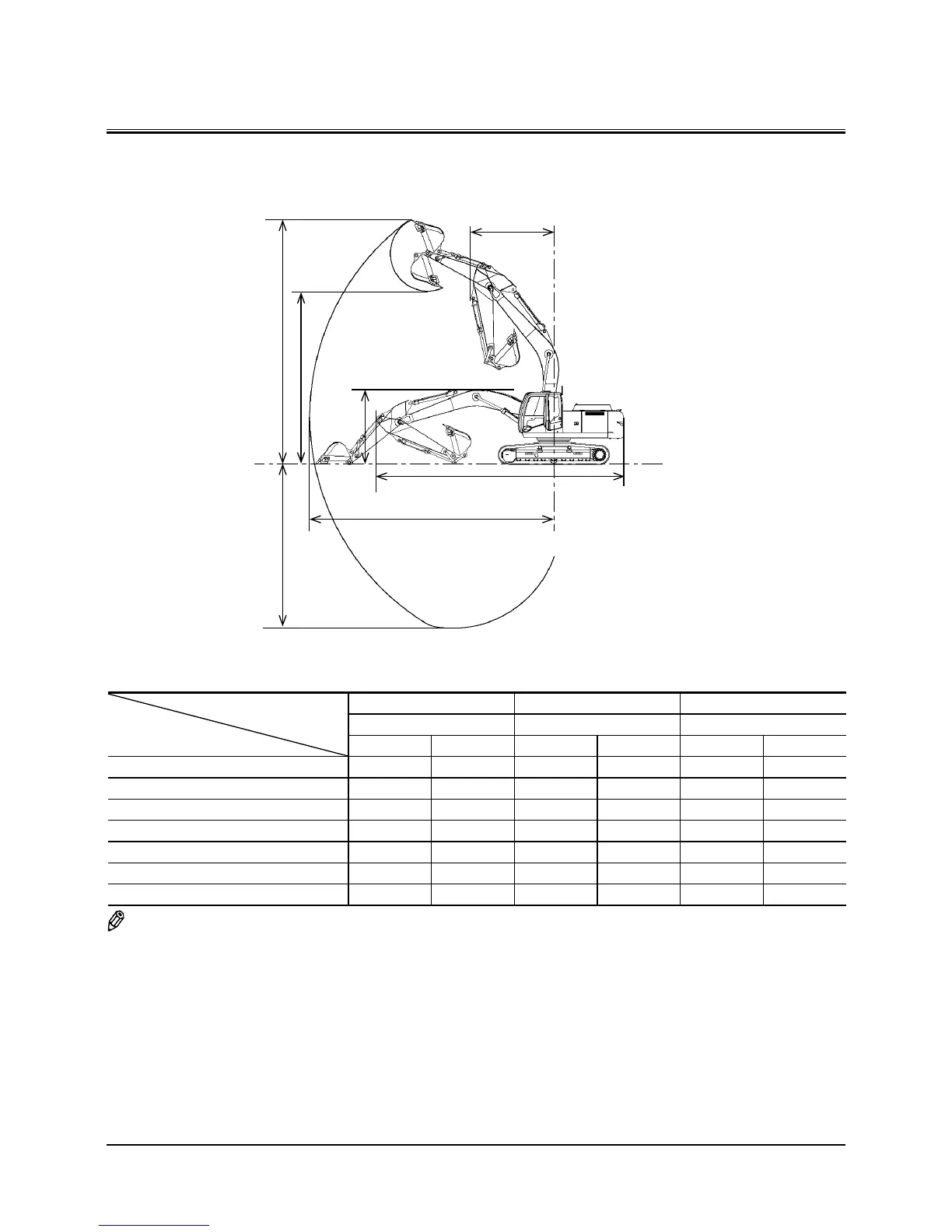

WORKING RANGES
ZX280LC-3, 280LCN-3
Category
Item
2.42 m (7 ft 10 in) Arm 3.11 m (10 ft 2 in) Arm 3.76 m (12 ft 4 in) Arm
Backhoe Backhoe Backhoe
mm ft•in mm ft•in mm ft•in
A: Maximum Digging Reach
10060 33’0” 10710 35’2” 11270 37’0”
B: Maximum Digging Depth
* 6540 * 21’5” * 7230 * 23’9” * 7880 * 25’10”
C: Maximum Cutting Height
* 9890 * 32’5” * 10260 * 33’8” * 10460 * 34’4”
D: Maximum Dumping Height
* 6970 * 22’10” * 7310 * 24’0” * 7520 * 24’8”
E: Overall Height
3410 11’2” 3170 10’5” 3310 10’10”
F: Overall Length
10440 34’3” 10340 33’11” 10390 34’1”
G: Minimum Swing Radius
4070 13’4” 3910 12’10” 3900 12’10”
NOTE: * The dimensions do not include the height of the shoe lug.
M1V1-12-002
A
G
B
D
C
F
Backhoe
E
