OPERATING THE MACHINE
5-13

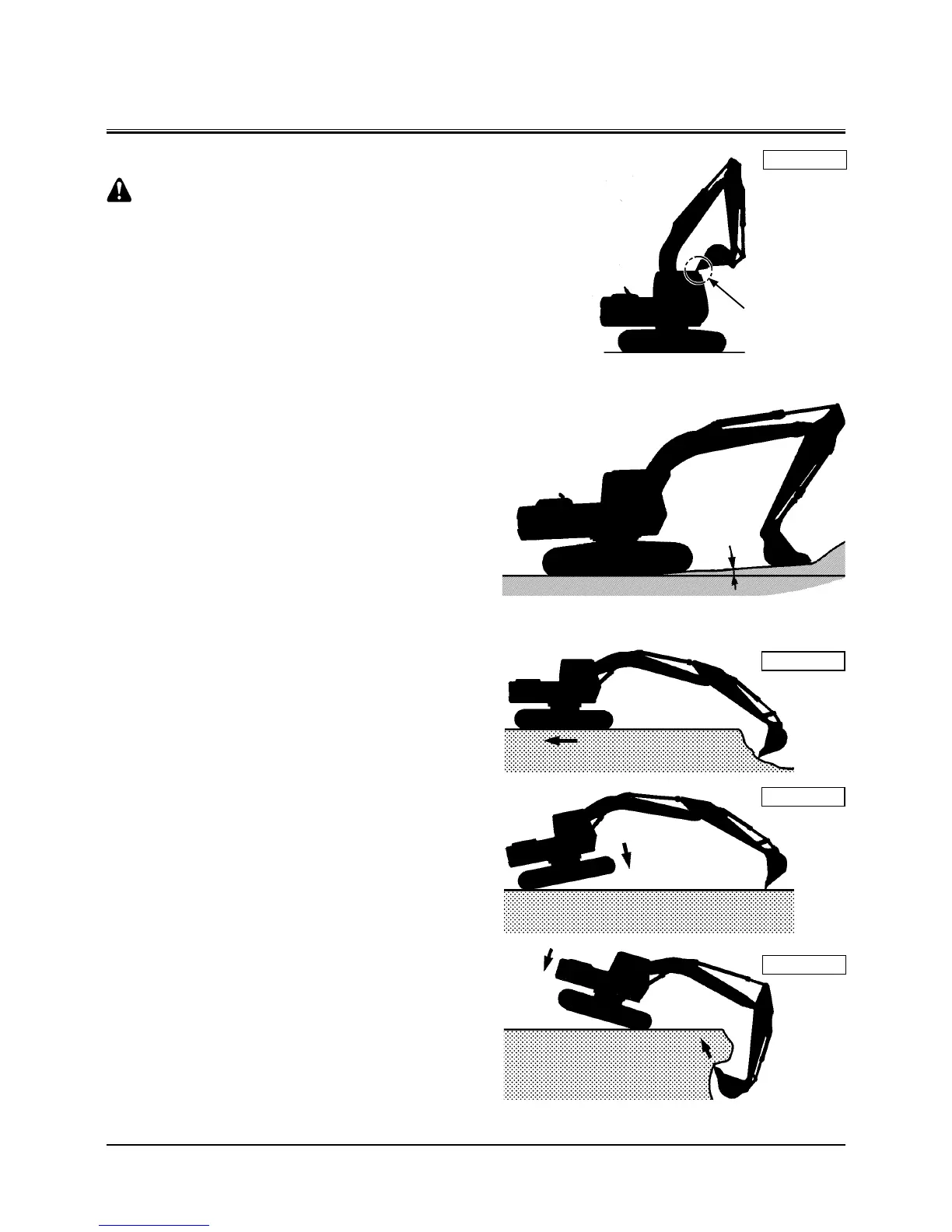

FACE SHOVEL OPERATION
WARNING: Take care not to hit the cab when rolling in
the arm with the reversed-installed bucket.
• For face shovel operation, dig the ground using the arm
cylinder in a scraping motion.
• When underground water is expected, make a slope angle
of 2 to 3° to drain this water as shown.
AVOID ABUSIVE OPERATION
Do not use travel as an additional digging force. Severe ma-
chine damage may result.
Do not raise rear of machine to use the machine’s weight as
additional digging force. Severe machine damage may result.
WRONG
WRONG
WRONG
WRONG
M104-05-020
M104-05-018
M107-05-045
Watch out!
(Take care not to hit
the cab with bucket)
2 to 3°
