OPTIONAL ATTACHMENTS AND DEVICES
13-44

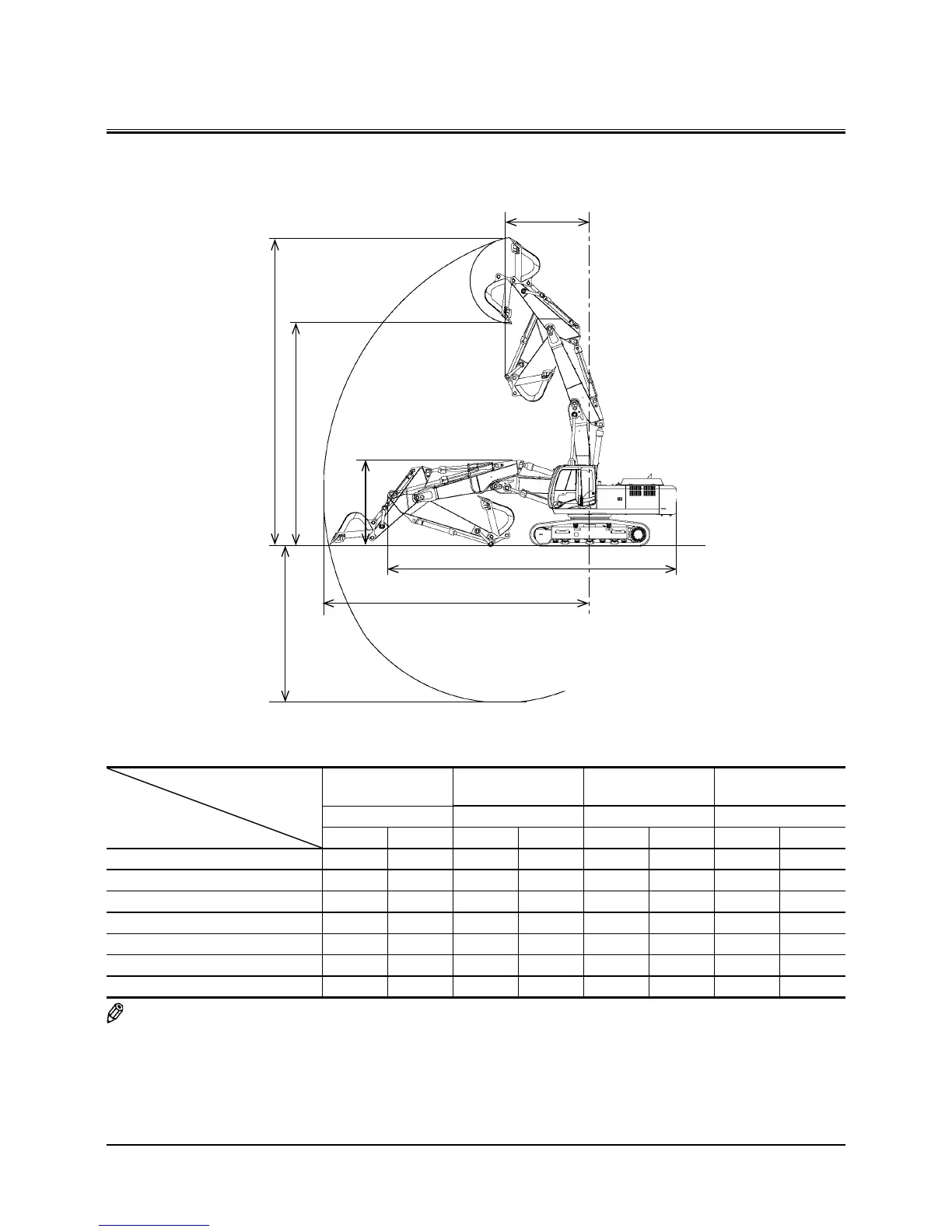

WORKING RANGES
ZX350LC-3, 350LCN-3 2-piece Boom
M1V1-13-004
Backhoe
A
G
B
D
C
F
E
Category
Item
2.33 m (7 ft 8 in)
Arm
2.67 m (8 ft 9 in)
Arm
3.20 m (10 ft 6 in)
Arm
4.00 m (13 ft 1 in)
Arm
Backhoe Backhoe Backhoe Backhoe
mm ft•in mm ft•in mm ft•in mm ft•in
A: Maximum Digging Reach
10390 34’ 1” 10680 35’ 0” 11220 36’ 10” 12000 39’ 4”
*B: Maximum Digging Depth
6040 19’ 10” 6360 20’ 10” 6900 22’ 8” 7700 25’ 3”
*C: Maximum Cutting Height
11870 38’ 11” 12060 39’ 7” 12550 41’ 2” 13210 43’ 4”
*D: Maximum Dumping Height
8550 28’ 1” 8750 28’ 9” 9240 30’ 4” 9910 32’ 6”
E: Overall Height
3380 11’ 1” 3370 11’ 1” 3310 10’ 10” 3690 12’ 1”
F: Overall Length
11150 36’ 7” 11110 36’ 5” 11070 36’ 4” 10020 32’ 11”
G: Minimum Swing Radius
3250 10’ 8” 3120 10’ 3” 2890 9’ 6” 3230 10’ 7”
NOTE: * The dimensions include the height of the shoe lug.
