MAINTENANCE
7-8
HOOD AND ACCESS COVERS
ZX200-3, 270-3, 330-3 Class
WARNING:
• Do not keep the hood and access covers open
when the machine is parked on a slope, or while
the wind is blowing hard. The hood or access cov-
ers may close accidentally, possibly resulting in
personal injury.
• When opening or closing the hood and access cov
-
ers, take extra care not to catch fingers between
the base machine and the hood or access covers.

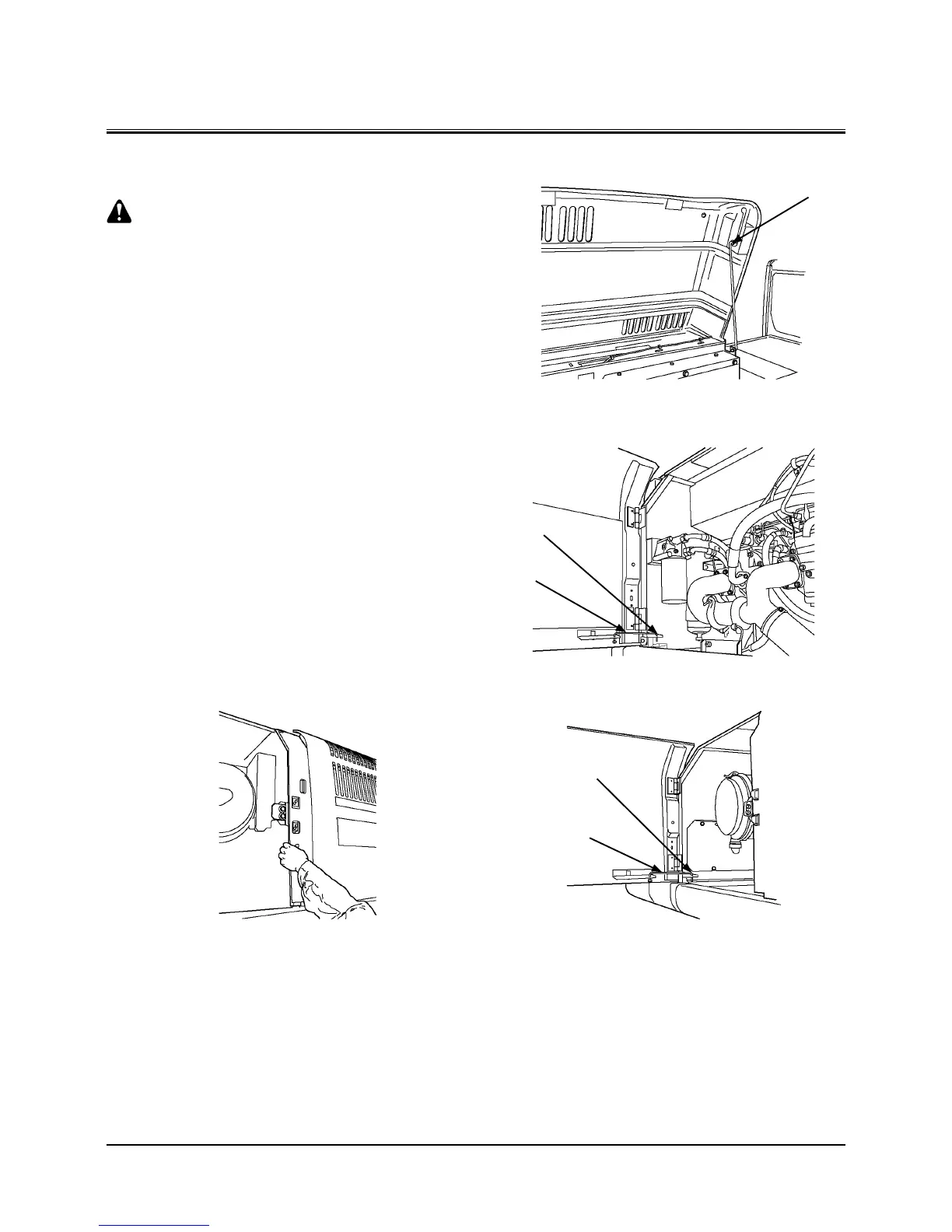

• Remove locks (2 used) to open the engine access cover.
Holding the handle on the access cover, raise the cover
until the cover is secured with catch (1).
• After opening the right and/or left access covers, be sure
to insert rods (2) into cover lock holes (3) to hold the cov-
ers.
• When opening the rear left cover, open the front left cover
first. Then, pull to open the rear left cover as illustrated.
1
3
2
3
2
M1U1-07-030
Engine Cover
M1U1-07-032
Right Cover
M1U1-07-031
Front Left Cover
M1U1-07-033
Rear Left Cover
To Next Page
