Hitachi ZAXIS 120-3 class - 2-Piece Boom; Specifications; ZX130-3, 130 LCN-3 (2-Piece Boom)

OPTIONAL ATTACHMENTS AND DEVICES
13-27

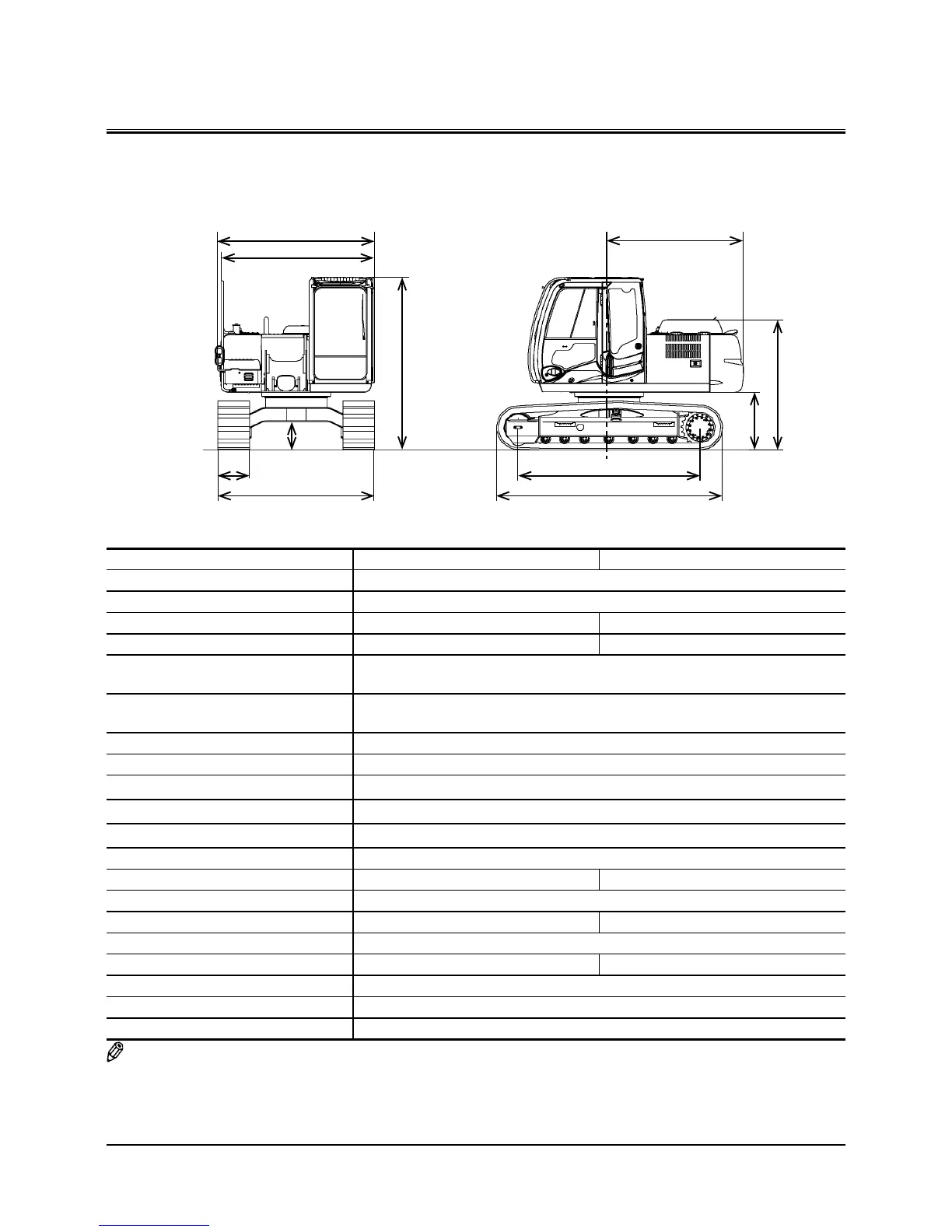

SPECIFICATIONS
ZX130-3, 130LCN-3 2-piece Boom
Model ZX130-3 2-piece Boom ZX130LCN-3 2-piece Boom
Type of Front-End Attachment 2.10 m (6 ft 11 in) Arm
Bucket Capacity (Heaped) PCSA 0.50 m
3
(0.65 yd
3
), CECE 0.45 m
3
Operating Weight 12900 kg (28400 lb) 13100 kg (28900 lb)
Base Machine Weight 9900 kg (21600 lb) 10000 kg (22100 lb)
Engine
ISUZU AJ-4JJ1XYSA-03, 66 kW (90 PS)/1800 min
–1
(rpm)
✹
69 kW (94 PS)/2000 min
–1
(rpm)
A: Overall Width
(Excluding back mirrors)
2490 mm (8 ft 2 in)
B: Cab Height
2740 mm (9 ft 0 in)
C: Rear End Swing Radius
2130 mm (7 ft 0 in)
D: Minimum Ground Clearance
*
440 mm (1 ft 5 in)
E: Counterweight Clearance
*
890 mm (2 ft 11 in)
F: Engine Cover Height
*
2050 mm (6 ft 9 in)
G: Overall Width of Upperstructure
2460 mm (8 ft 1 in)
H: Undercarriage Length
3580 mm (11 ft 9 in) 3750 mm (12 ft 4 in)
I: Undercarriage Width
2490 mm (8 ft 2 in)
J: Sprocket Center to Idler Center
2880 mm (9 ft 5 in) 3050 mm (10 ft 0 in)
K: Track Shoe Width
500 mm (20 in) (Grouser Shoe)
Ground Pressure 40 kPa (0.41 kgf/cm
2
) (5.8 psi) 39 kPa (0.40 kgf/cm
2
) (5.7 psi)
Swing Speed 13.7 min
–1
(13.7 rpm)
Travel Speed (fast/slow) 5.5/3.4 km/h (3.4/2.1 mph)
Gradeability 35° (tan θ = 0.70)
NOTE:
✹
H/P mode
* The dimensions do not include the height of the shoe lug.
M1U1-12-001
