OPTIONAL ATTACHMENTS AND DEVICES
13-101
METRIC MEASURE
ZX350LC-3 2-piece boom, Arm 3.20 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
10.5 9340 * 9340 * 4.38
9.0 9110 * 9110 * 7290 * 7290 * 6.55
7.5 8930 * 8930 * 7690 * 6840 6540 * 6180 7.86
6.0 11680 * 11680 * 9310 * 9310 * 7800 * 6970 6220 * 5120 8.72
4.5 23490 * 23490 * 14430 * 14430 * 10300 * 9580 * 8180 * 6870 6820 * 4820 6060 * 4540 9.25
3.0 19720 * 19720 * 24350 * 24350 * 18690 * 14100 11990 * 9670 * 8830 * 6670 7240 * 4740 5960 * 4240 9.52
1.5 26540 * 26180 19300 * 14040 13750 * 9130 9670 * 6390 7380 4600 6050 * 4150 9.54
0 29250 * 25050 19260 * 13020 13620 8580 9650 6060 7240 4470 6350 * 4240 9.32
-1.5 30340 * 24300 19450 * 12440 13690 8220 9490 5800 6930 * 4570 8.84
-3.0 29230 * 24220 19270 * 12260 13350 7920 8650 * 5730 5700 * 5270 8.05
-4.5 29960 * 29960 * 23730 * 23730 * 14790 * 12240 8440 * 8000 7230 * 7230 * 6.26
ZX350LC-3 2-piece boom, Arm 4.00 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
10.5 6570 * 6570 * 5.91
9.0 8220 * 8220 * 6320 * 6320 * 5500 * 5500 * 7.65
7.5 8140 * 8140 * 7060 * 7060 * 5030 * 5030 * 8.80
6.0 8500 * 8500 * 7170 * 7090 6240 * 5090 4810 * 4420 9.57
4.5 11450 * 11450 * 12100 * 12100 * 9340 * 9340 * 7560 * 6960 6410 * 5070 4750 * 3980 10.06
3.0 15070 * 15070 * 24830 * 24830 * 16760 * 14310 * 10810 * 9380 8200 * 6760 6700 * 4940 4820 * 3740 10.30
1.5 13290 * 13290 * 25400 * 25400 * 19120 * 13800 12890 * 9430 9030 * 6650 7100 * 4750 5030 * 3650 10.32
0 14890 * 14890 * 27760 * 26030 19170 * 13440 13620 8790 9610 6280 7320 4550 5390 * 3720 10.12
-1.5 18720 * 18720 * 29890 * 24650 19220 * 12630 13760 * 8310 9530 5910 7170 4390 5820 * 3950 9.68
-3.0 22880 * 22880 * 30130 * 24150 19500 * 12240 13460 8010 9380 5690 5670 * 4440 8.96
-4.5 25900 * 25900 * 27710 * 24330 17920 * 12150 12050 * 7840 6570 * 5730 5630 * 5570 7.69
-6.0 16970 * 16970 * 12010 * 12010 * 4.02

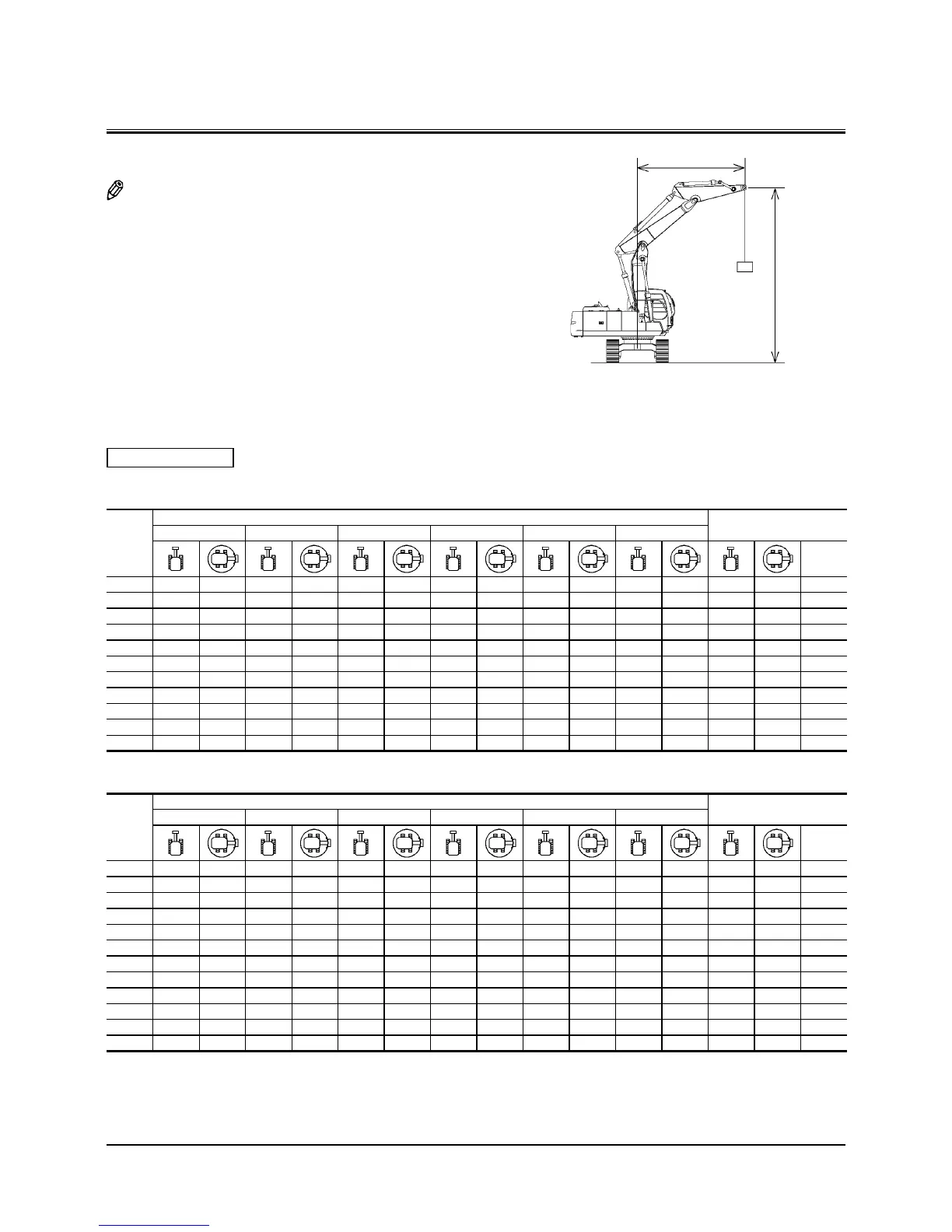

LIFTING CAPACITIES
NOTE: • Lifting capacity of the ZX series does not exceed 75%
of tipping load with the machine on firm, level ground
or 87 % of full hydraulic capacity. (ISO 10567)
• * Indicates load limited by hydraulic capacity.
A: Load radius
B: Load point height
C: Lifting capacity
C
B
M1G6-13-018
A
