OPERATOR'S STATION
1-18
•
Fuel Sensor Error Display
When the fuel sensor is faulty or if the harness between
fuel sensor and monitor unit is broken, the fuel sensor error
display is displayed on the fuel gauge.
•
Coolant Temperature Sensor Error Display
When the coolant temperature sensor is faulty or if the har-
ness between coolant temperature sensor and monitor unit
is broken, the coolant temperature sensor error display is
displayed on the coolant temperature gauge.

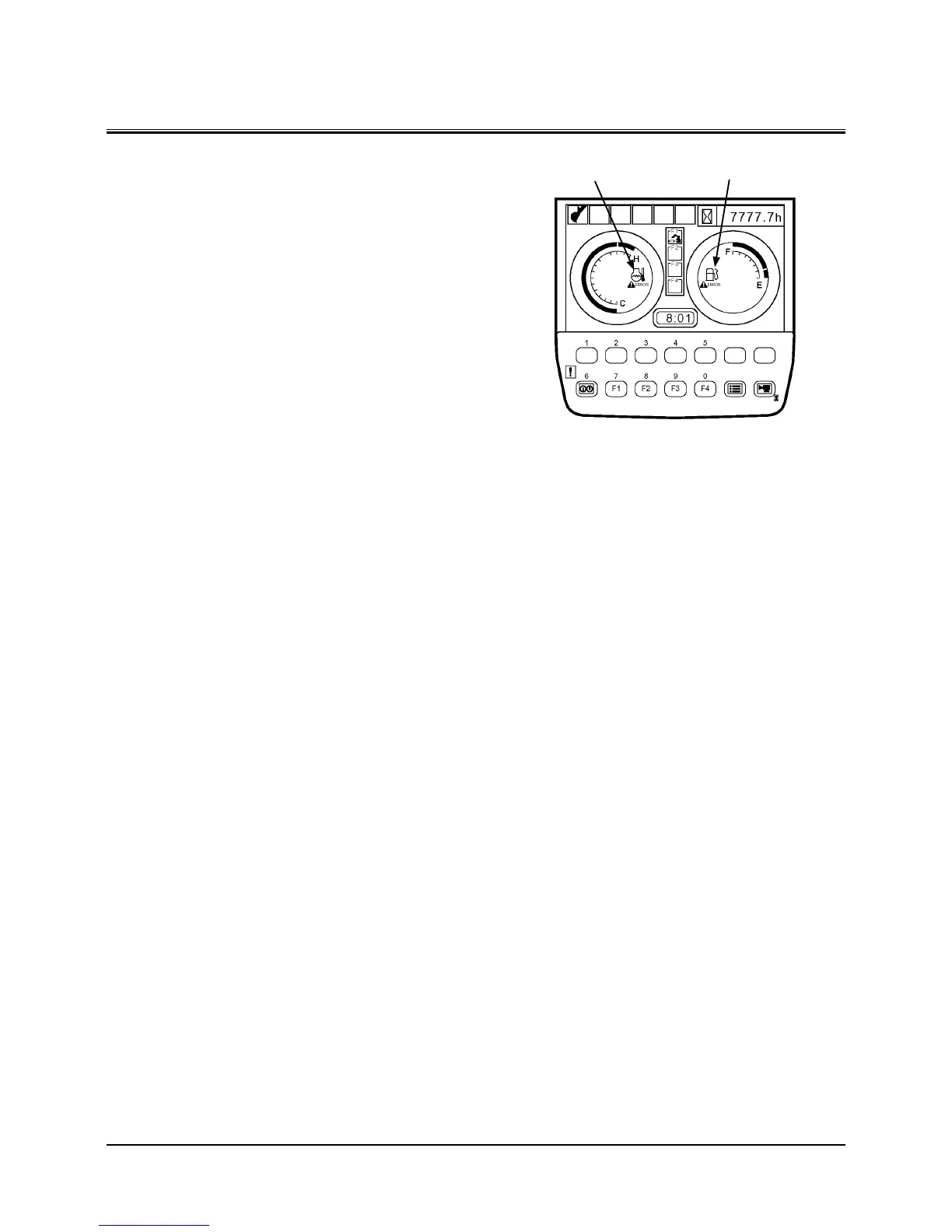

Coolant Temperature
Sensor Error Display
Fuel Sensor Error
Display
T1V1-05-02-005
To Next Page
