OPERATOR'S STATION
1-23

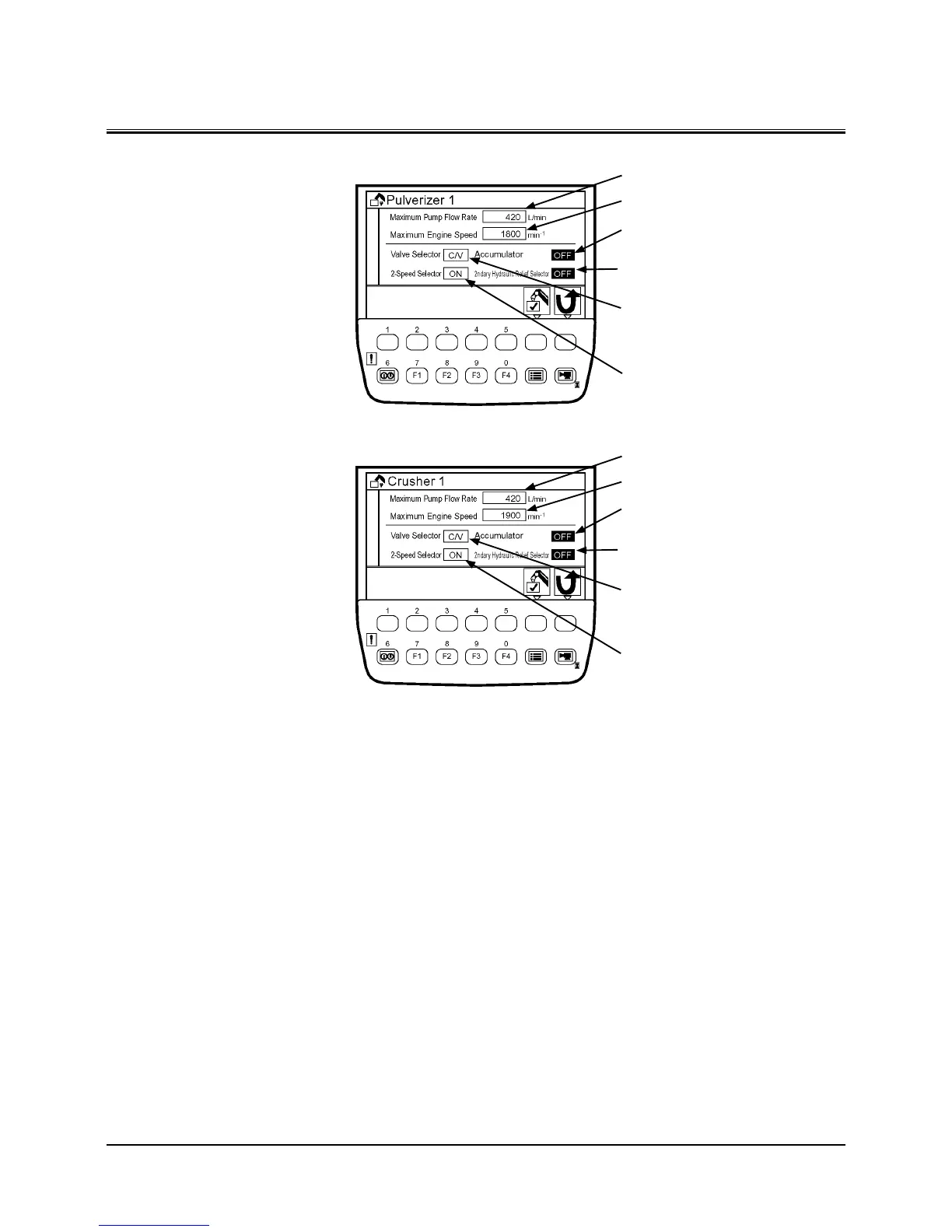

Pulverizer 1
Crusher 1
Maximum Pump 1 and 2 Flow Rate
Maximum Engine Speed
Accumulator Control Solenoid Valve: OFF
Secondary Relief Selector Control Solenoid
Valve: OFF
Three way Valve Control Solenoid Valve: OFF
The three way valve is connected to the
control valve.
Auxiliary Flow Combining Solenoid Valve: ON
Maximum Pump 1 and 2 Flow Rate
Maximum Engine Speed
Accumulator Control Solenoid Valve: OFF
Secondary Relief Selector Control Solenoid
Valve: OFF
Three way Valve Control Solenoid Valve: OFF
The three way valve is connected to the
control valve.
Auxiliary Flow Combining Solenoid Valve: ON
T1V5-05-01-011
T1V5-05-01-028
