5.1.To avoid mistake touching, please put up warning notice on the mechanisms or
lifters.

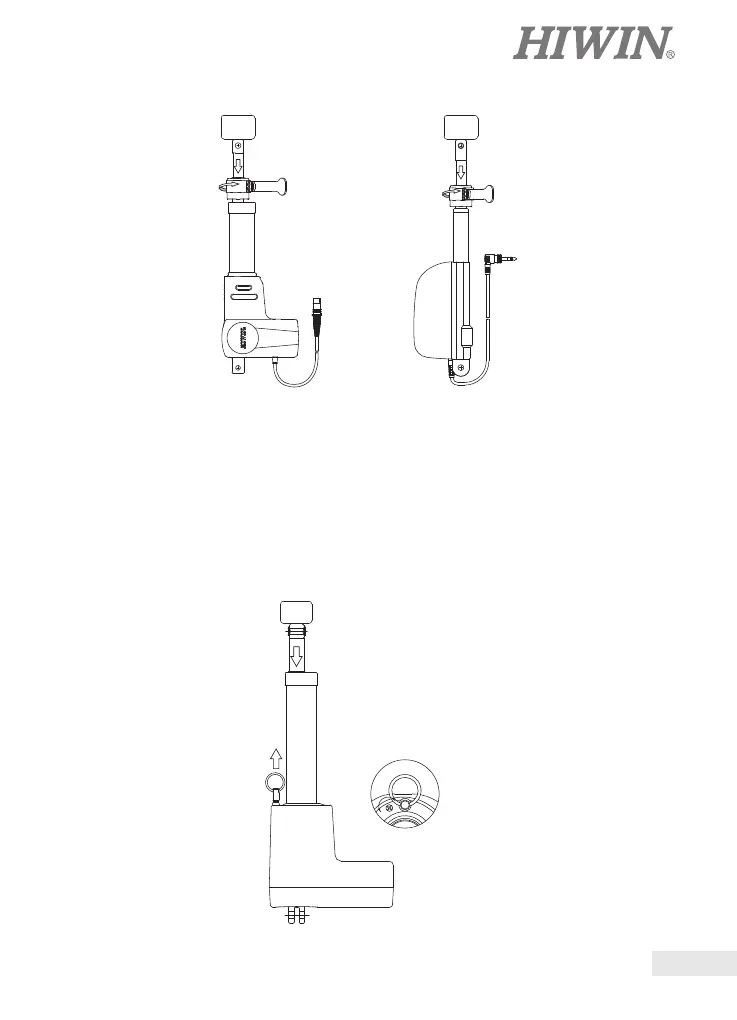

5.2.The way to active quick-release is pulling the handle as the following drawing.
5.3.When the speed of quick-release is too fast, please adjust the handle extending
length immediately; The screw beside the handle can adjust and limit the max.
extending length of the handle.
5.4.The quick-release function for LAN3 series can only be used in vertical pushing
force condition, it may inactive in pulling force or slopping force.
5. LAN3 Series:
Load
Load
slow
quick
Load
