Hiwin LAS3-1 - Connector Drawings

A99UE13-1304
64
20
21.1
15
3x Ø 1.6
True Table
C B A Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7 Description
0 0 0 0 1 1 1 1 1 1 1 Axis 1,2 Control Enable
0 0 1 1 0 1 1 1 1 1 1 Axis 3,4 Control Enable
0 1 0 1 1 0 1 1 1 1 1 Axis 5 Control Enable
0 1 1 1 1 1 0 1 1 1 1 No Used
1 0 0 1 1 1 1 0 1 1 1 Charge 25 % LED ON
1 0 1 1 1 1 1 1 0 1 1 Charge 50 % LED ON
1 1 0 1 1 1 1 1 1 0 1 Charge 75 % LED ON
1 1 1 1 1 1 1 1 1 1 0 Charge 100 % LED ON

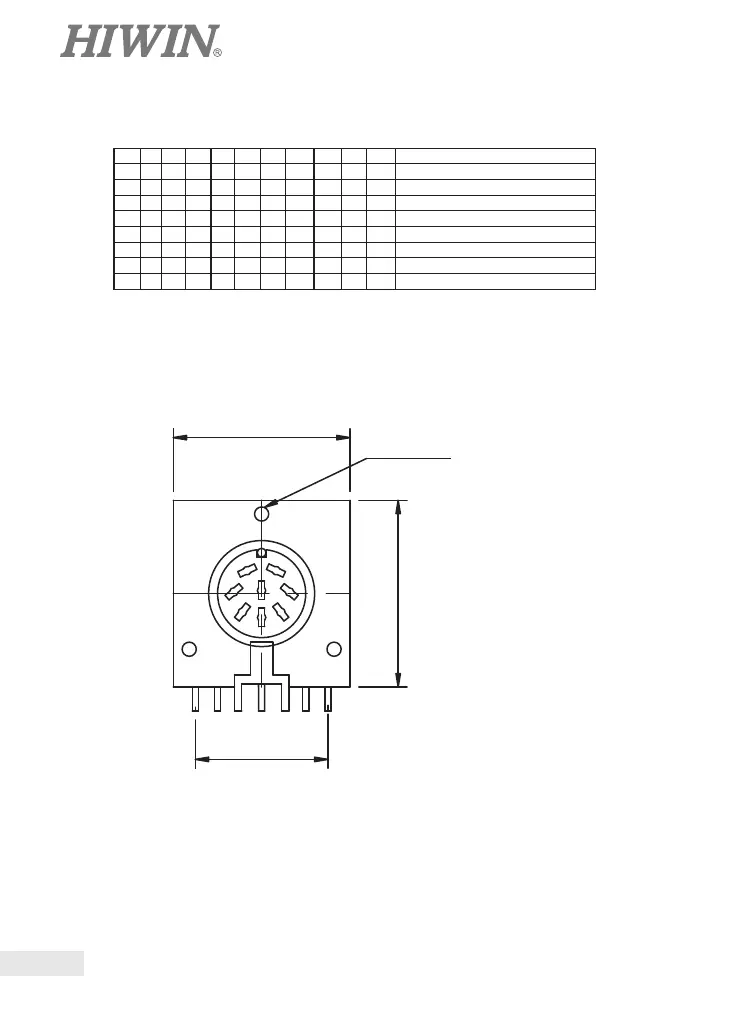

8. Connector Drawings
1. LAK2/LAK2LR/LAK2D/LAK2B/LAK2BN/LAK2J/LAK4/LAK4N/LAK4D/LAK6B
KEYPAD DIN drawings
