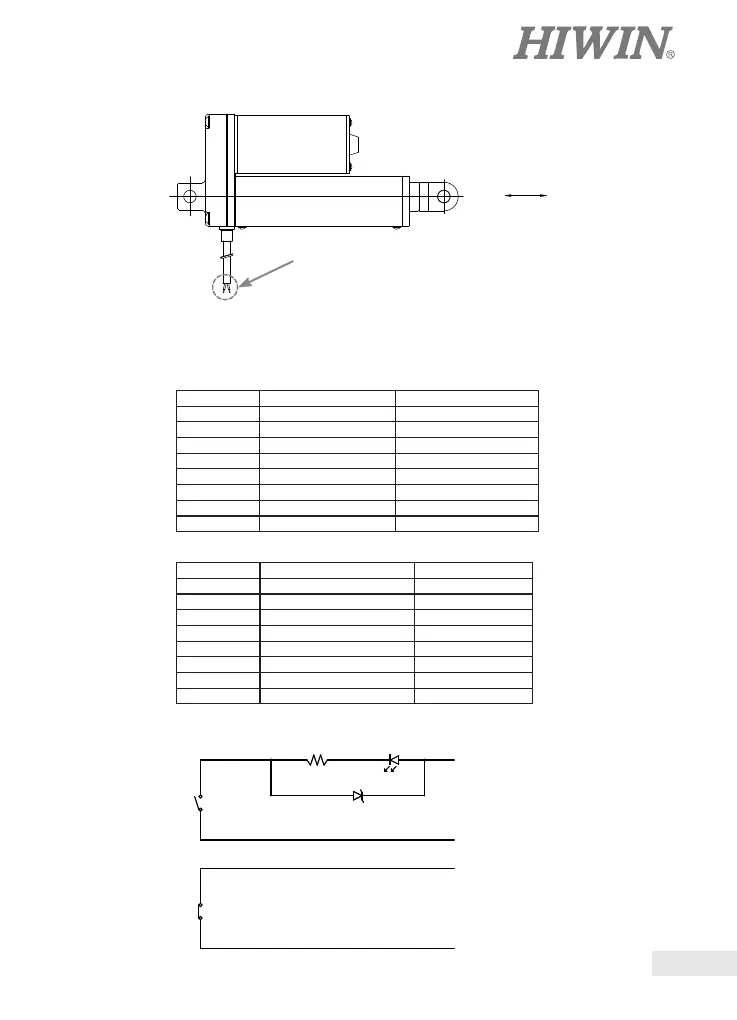

2. Reed Switch Specication & Application Circuitry:
1. Feature:
2. Circuit Diagram:
Common-open Type (standard) with red LED
Common-close Type (optional)
R1
51
LED
ZD1
+Brown
-Blue
-Blue
+Brown
Common-open Type
Common-close Type
No Feature Specication
1 Operation Voltage DC/AC 5~110V
2 Operating temperature -10℃~70℃
3 Storage Temperature -20℃~70℃
4 Operation Current 30mA(Max.)
5 ON Resistance 51Ω
6 Protection Class IP67
7 Response Time ON+OFF<1 mS
8 Signal Wire Φ3.8, 2C
No Feature Specication
1 Operation Voltage DC/AC 5~100V
2 Operating temperature -10℃~70℃
3 Storage Temperature -20℃~70℃
4 Operation Current 30mA(Max.)
5 ON Resistance 250mΩ
6 Protection Class IP67
7 Response Time ON+OFF<1 mS
8 Signal Wire Φ3.8, 2C
