Hiwin LAS3-1 User Manual

A99UE13-1304
62
Wiring Specication

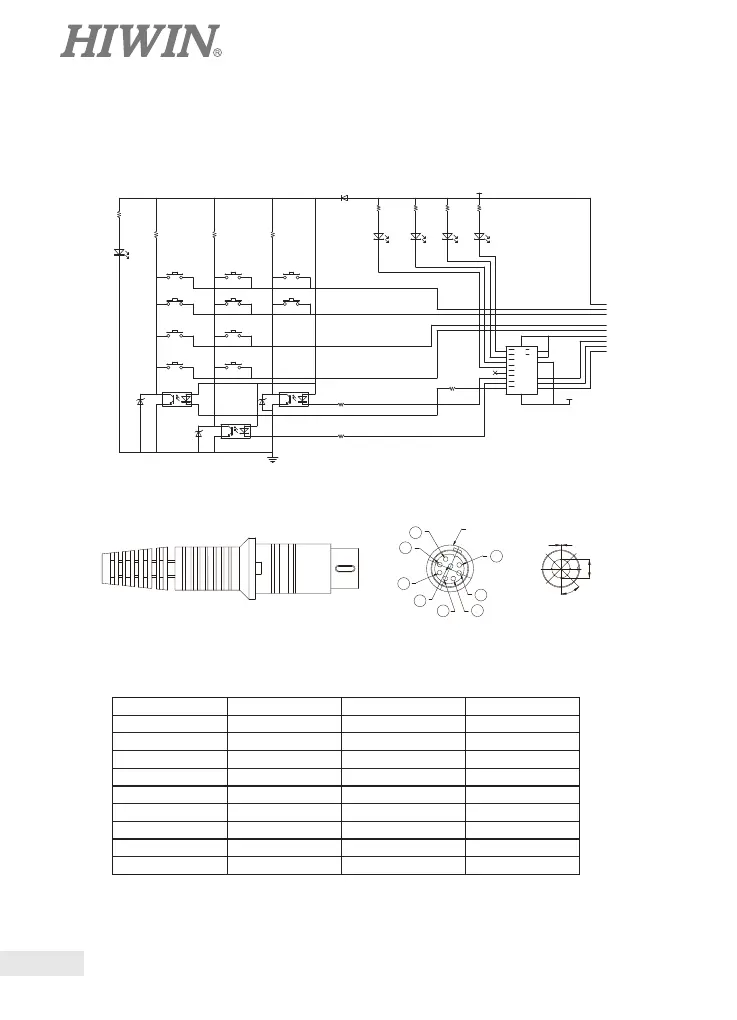

7. LAP5 Wiring
7.1. For LAK6B
DIN Connector WIRING LAK6B Specication
1 GRAY Axis 2,4 UP 50mA
2 BLACK GND --
3 WHITE VCC 220mA
4 YELLOW Address C 50mA
5 GREEN Address B 50mA
6 BLUE Axis 1,3,5 UP 50mA
7 BROWN Axis 1,3,5 DOWN 50mA
8 RED Address A 50mA
9 SHELL Axis 2,4 DOWN 50mA
7
6
5
8
1
2
3
4
SHELL
Ø13.25mm
45¢X
0.7mm
3UP
*
5UP
5DN
3DN
4UP
4DN
1UP
1DN
2UP
2DN
A
1
B
2
C
3
G2A
4
G2B
5
G1
6
Y7
7
GND
8
Y6
9
Y5
10
Y4
11
Y3
12
Y2
13
Y1
14
Y0
15
VCC
16
U1
VCC
WHITE
BLUE
BROWN
GRAY
SHEEL
BLACK
YELLOW
GREEN
RED
