A99UE13-1304
10
3.3. For xing the extension tube in this actuator on one guding mechanism, please
refer to the installation guide. If it is not xed on any mechanism, it could idle.

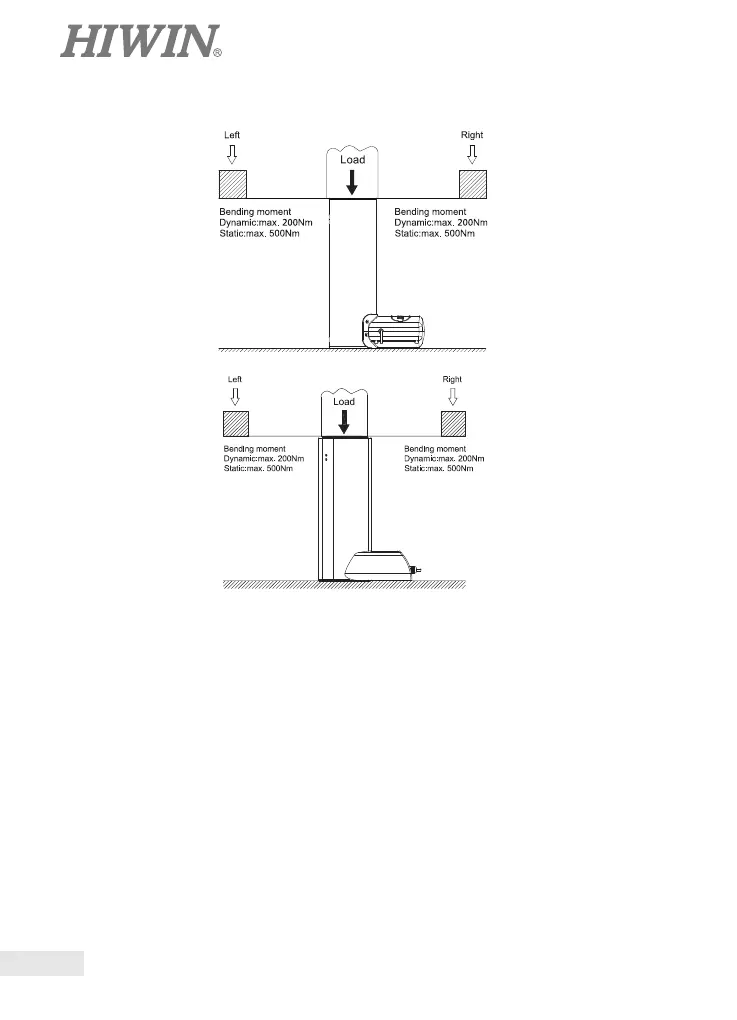

3.2.2 LAC1 Series
LAC3 Series
4.1 LAN1、LAN2 Series:
4.1.1 Be sure the moving ambits of handle will not interfere with other mechanisms
when assembling.
4.2.1 To avoid mistake touching, please put up warning notice on the mechanisms.
4.3.1 There must have load on the actuator to active quick-release.
4.4.1 The way to active quick-release is rotating the handle as the following drawing.
4.5.1 When the speed of quick-release is too fast, please free or reverse the handle
immediately.
4.6.1 The quick-release function for LAN1 and LAN2 series can only be used in
vertical pushing force condition, it may inactive in pulling force or slopping
force.
4. Linear Actuator with Quick-Release User
’
s Guide
