• The upper and lower limit switches are operated normally.
• The motor stops when the extension tube reaches upper and lower limit switch
positions.
If the linear actuator fails to meet any of these conditions, please repeat steps 2.2
to 2.4 until the above mentioned clauses are met
2.7. The entire installation is nished only if steps 2.1 to 2.6 are executed successfully.
2.8. HIWIN Mikrosystem Corp. cannot take any responsibility for any injuries and/or
damages caused as a result of not complying with the clauses of this section.
3.1. Don't use this product to make current transient inversion. If you try to backwardly
move the present extension tube that forwardly moves, you must stop the motor and
apply the reverse current to make backward movement. On the contrary, if you want
the extension tube backward moved to forward, the way to supply current will be the
same as mentioned above.

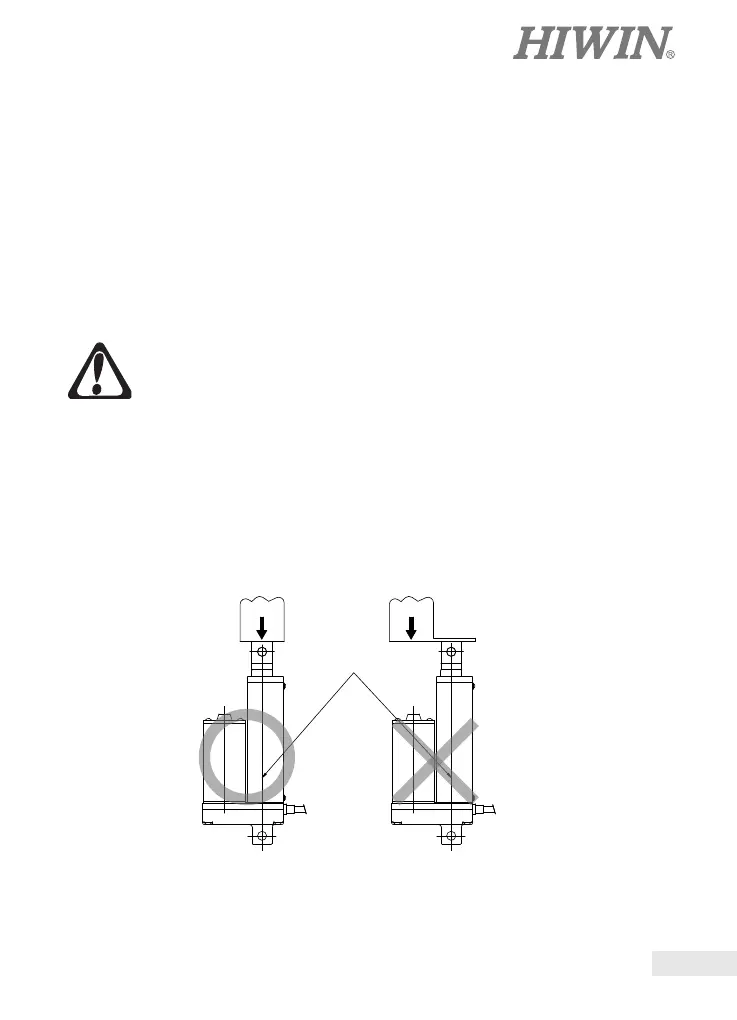

3.2. Don't use this product with a radial load (Please refer to gures and tables below.)
because an actuator more appropriately applies to take the axial load. If there is
product damage, accident or personal injury caused by improper load, we will not
take any legal responsibility.
3.2.1 LA Series
3. Note:
Load Load
Actuator
Axial Direction
