A99UE13-1304
54
5
8
4
3
2
1
6
7
SHELL
Ø 13.25mm
45
0
0.7mm

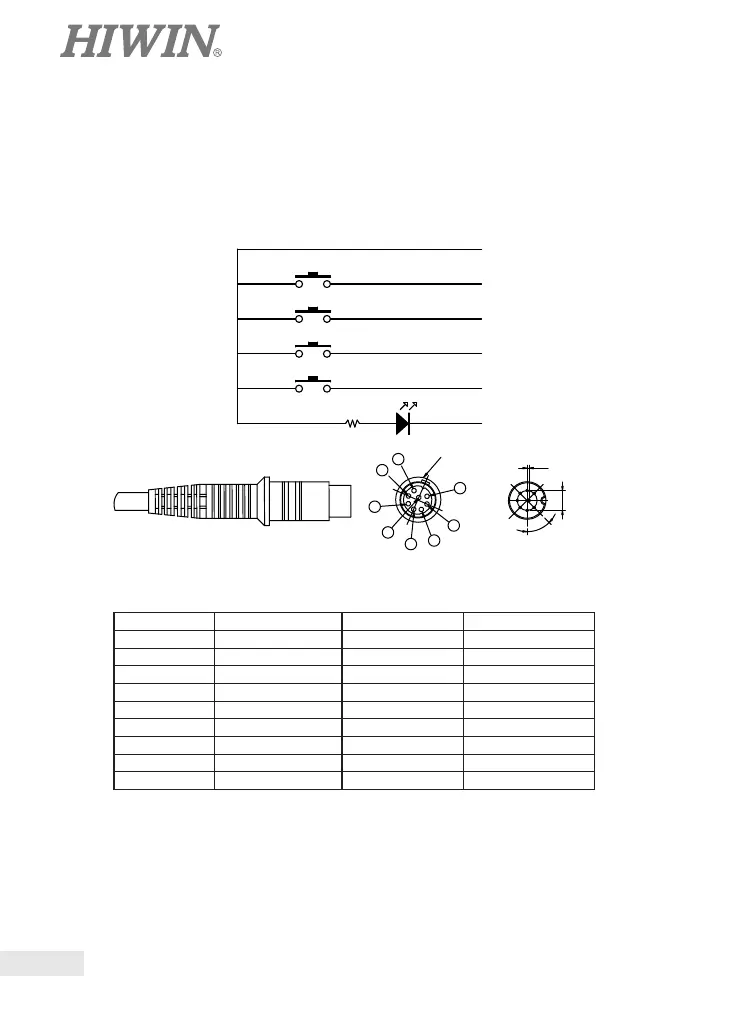

Chapter 5 LAK\LAP Wiring and Installation:
1. LAP1/LAP2 Wiring
1. LAP1/LAP2 for LAK2/LAK2D Circuit Diagram
Wiring Specication
DIN connector WIRING LAK2/LAK2D Specication
1 WHITE DC_12V 220mA
2 BLACK GND 50mA
3 NO used NO used --
4 NO used NO used --
5 GREEN Axis 1 UP 50mA
6 BLUE Axis 2 UP 50mA
7 YELLOW Axis 2 DOWN 50mA
8 RED Axis 1 DOWN 50mA
9 SHELL NO used --
1 UP
1 Down
2 UP
2 Down
BLACK
Green
RED
BLUE
YELLOW
WHITE
