SHELL
Ø 13.25mm
45
0
0.7mm

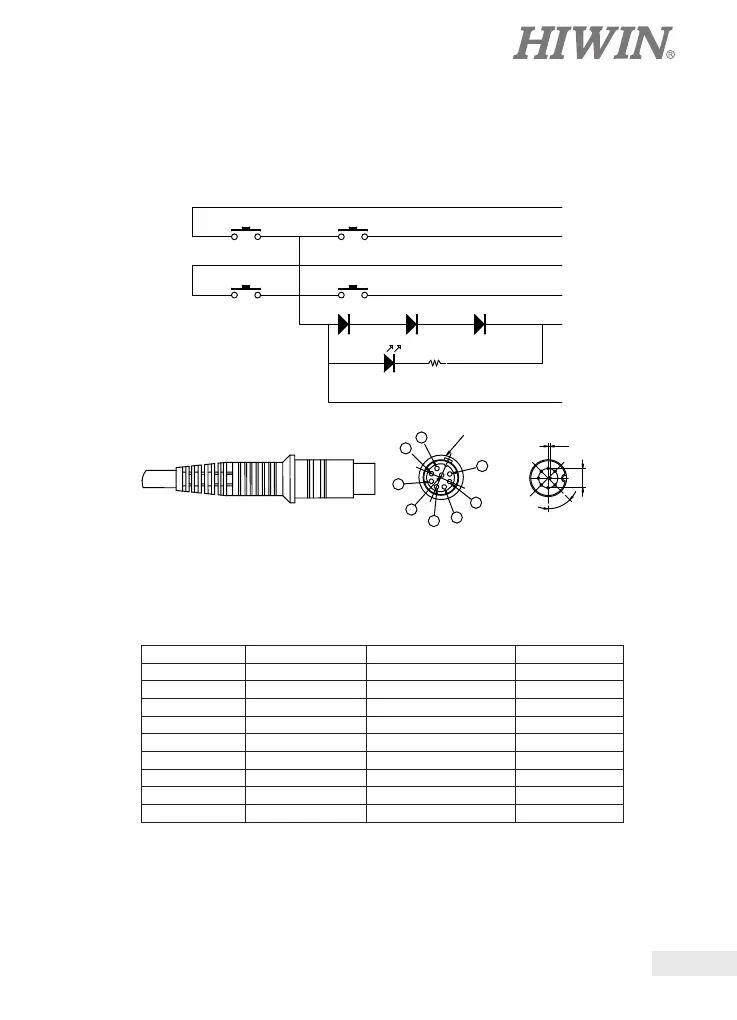

2 LAP1/LAP2 for LAK4&LAK2LR Circuit Diagram
POWER-RED
1 UP
1 DN
2 UP
2 DN
10R
BLACK
RED
BLUE
YELLOW
WHITE
SHELL
Wiring Specication
DIN Connector WIRING LAK4 & LAK2LR Specication
1 WHITE Axis 1 UP 50mA
2 BLACK Axis 2 DOWN 50mA
3 YELLOW Axis 2 UP 50mA
4 NO used NO used --
5 NO used NO used --
6 BLUE NO used --
7 NO used NO used --
8 RED GND --
9 SHELL Axis 1 DOWN 50mA
