Hiwin LAS3-1 User Manual

A99UE13-1304
32
1. Specication and Operation Environment:
1.1 Suitable for LAS1~LAS4,LAM1,LAN1~LAN5 series.
1.2 LAKC-1 is an over current protector for uniaxial linear actuator, which can avoid over
current caused by actuator overload or other abnormal situations.
1.3 Power supply: 12VDC or 24VDC; the required input power is indicated on a label of
specication.
1.4 The value of over current is indicated on the specication label.
1.5 Duty cycle: 10%
1.6 Protection class: IP54 (upgrade to IP66 by demand)
1.7 Operation and environment temperature: +5℃~40℃ (41°F~104°F)
2. LAKC-1 Installation Guide:
Fix two screw holes when installing, and avoid the fall of power wire by shaking an over
current protector.
3. Operation Guide:
3.1 The installation of LAKC-1 is shown in a gure below. An actuator for LAKC-1 is
connected to an output connector of LAKC-1.
6.LAKC Over Current Protection Box
3.2 The input power (Power IN 12V/24VDC) is connected to the input connector of
LAKC-1.

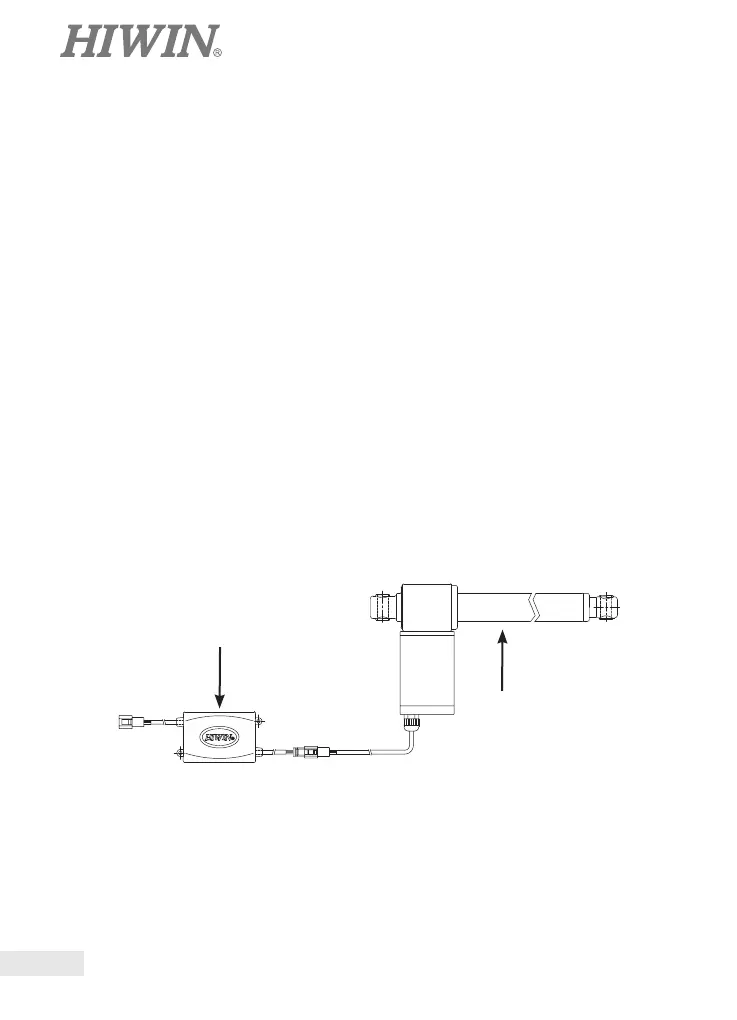

3.3 When the input power is connected (connecting as a gure below), the inner tube of
actuator will extend outward.
HIWIN actuator
LAKC Over Current Protector
Power IN (12/24VDC)
