61
A99UE13-1304
5
8
4
3
2
1
6
7
SHELL
Ø 13.25mm
45
0
0.7mm

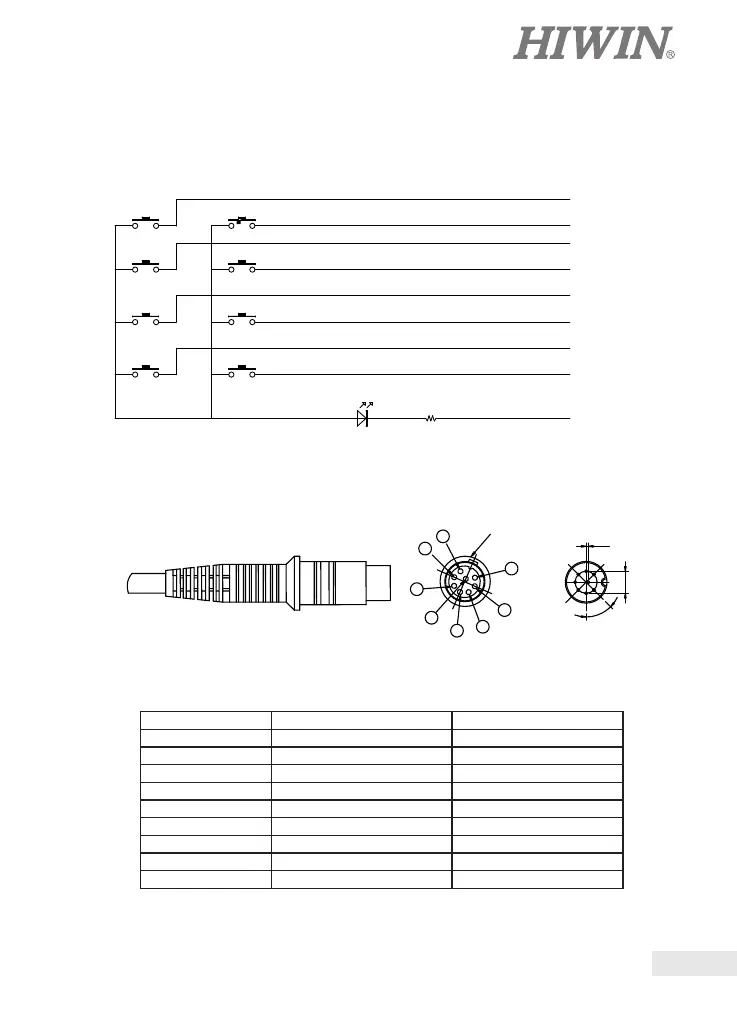

Wiring Specication
GRAY(1UP)
BLACK(1DN)
WHITE(2UP)
YELLOW(2DN)
GREEN(3UP)
BLUE(3DN)
BROWN(4UP)
RED(4DN)
SHELL(GND)
SW1
1UP
SW3
SW2
SW4
1DN
2UP
SW5
3UP
SW7
4UP
2DN
SW6
3DN
SW8
4DN
LED1
R
LED
DIN connector WIRING LAK4N & LAK4D
1 GRAY Axis 1UP
2 BLACK Axis 1 DOWN
3 WHITE Axis 2UP
4 YELLOW Axis 2 DOWN
5 GREEN Axis 3UP
6 BLUE Axis 3 DOWN
7 BROWN Axis 4UP
8 RED Axis 4 DOWN
9 SHELL GND
6. LAP4N/LAP4M/LAP4R Wiring
For LAK4D & LAK4N
