A99UE13-1304
60
5
8
4
3
2
1
6
7
SHELL
Ø 13.25mm
45
0
0.7mm

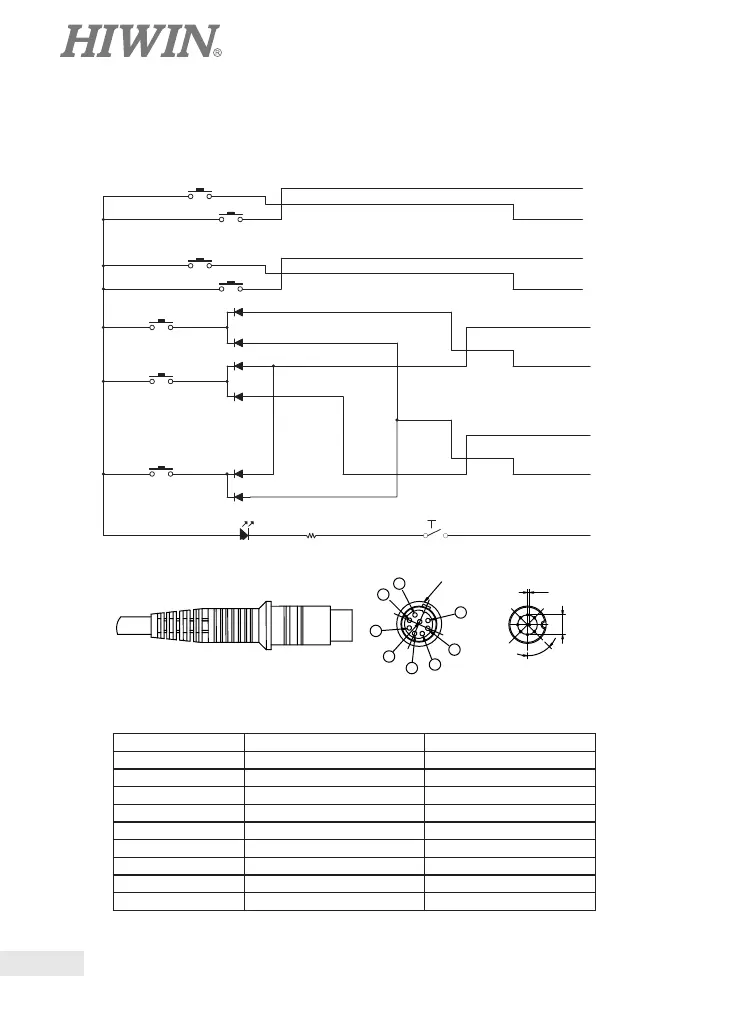

Wiring Specication
DIN connector WIRING LAK4D
1 GRAY Axis 1UP
2 BLACK Axis 1 DOWN
3 WHITE Axis 2UP
4 YELLOW Axis 2 DOWN
5 GREEN Axis 3UP
6 BLUE Axis 3 DOWN
7 BROWN Axis 4UP
8 RED Axis 4 DOWN
9 SHELL GND
SW4
SW6
LED
R1
SW1
SW2
SW5
1UP
1DN
3UP
3DN
4UP
4DN
GND
SW8
D1
D2
D4
D3
D5
SW3
2UP
2DN
D6
GRAY
BLACK
WHITE
YELLOW
GREEN
BLUE
BROWN
RED
SHELL
5. LAP4G Wiring
