Hiwin LAS3-1 - LAP4;LAP4 M;LAP4 R Wiring

59
A99UE13-1304

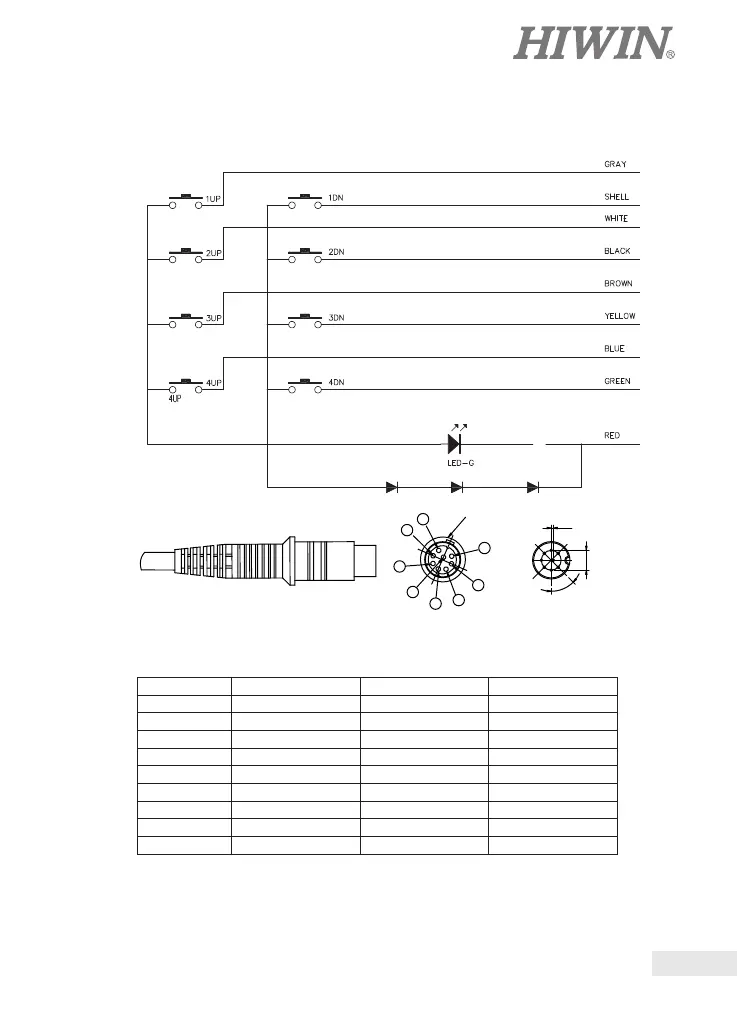

4. LAP4/LAP4M/LAP4R Wiring
For LAK4
5
8
4
3
2
1
6
7
SHELL
Ø 13.25mm
45
0
0.7mm
Wiring Specication
DIN Connector WIRING LAK4 Specication
1 GRAY Axis 1 UP 50mA
2 BLACK Axis 2 DOWN 50mA
3 WHITE Axis 2 UP 50mA
4 YELLOW Axis 3 DOWN 50mA
5 GREEN Axis 4 DOWN 50mA
6 BLUE Axis 4 UP 50mA
7 BROWN Axis 3 UP 50mA
8 RED GND --
9 SHELL Axis 1 DOWN 50mA
