Hiwin LAS3-1 User Manual

A99UE13-1304
44

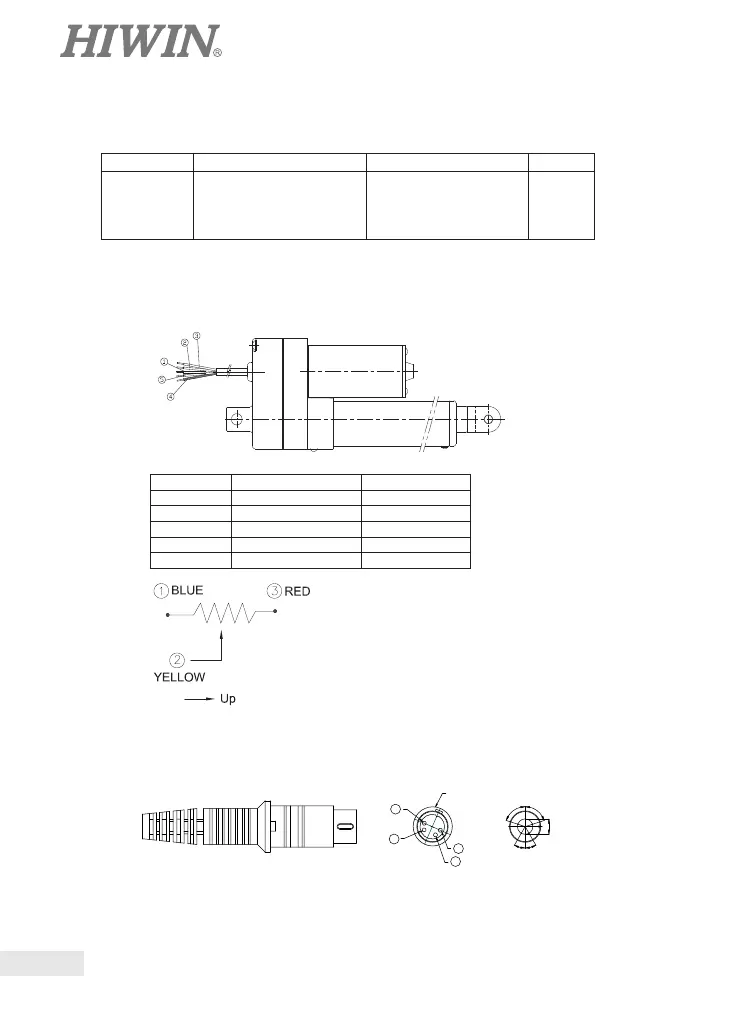

1.4 Bare Wire for Potentiometer
1.3 Specication of Positioning Feedback (Optical sensor)
1.5 4-pin Connector for Potentiometer
位置回饋規格(Optical Sensor)
WIRING COLOR REMARK
1 BLUE (AWG 20) GND
2 YELLOW (AWG 20) OUTPUT
3 RED (AWG 20) 24/12VDC
4 BLACK (AWG 20) MOTOR(-)
5 WHITE (AWG 20) MOTOR(+)
4
3
1
2
SHELL
36¢X
0.7mm
36¢X
72¢X
72¢X
Supply voltage 24VDC 12DC 5VDC
Output
Hight level 24VDC
Low level 0.2V/40mA PNP
PS.Open collector
(NPN)
Hight level 12VDC
Low level 0.2V/40mA PNP
PS.Open collector
(NPN)
TTL
