Hiwin LAS3-1 User Manual

51
A99UE13-1304
DIN Connector COLOR REMARK
1 YELLOW OUTPUT
2 BLACK MOTOR(+)
3 WHITE MOTOR(-)
4 RED 24VDC
SHELL GREEN GND

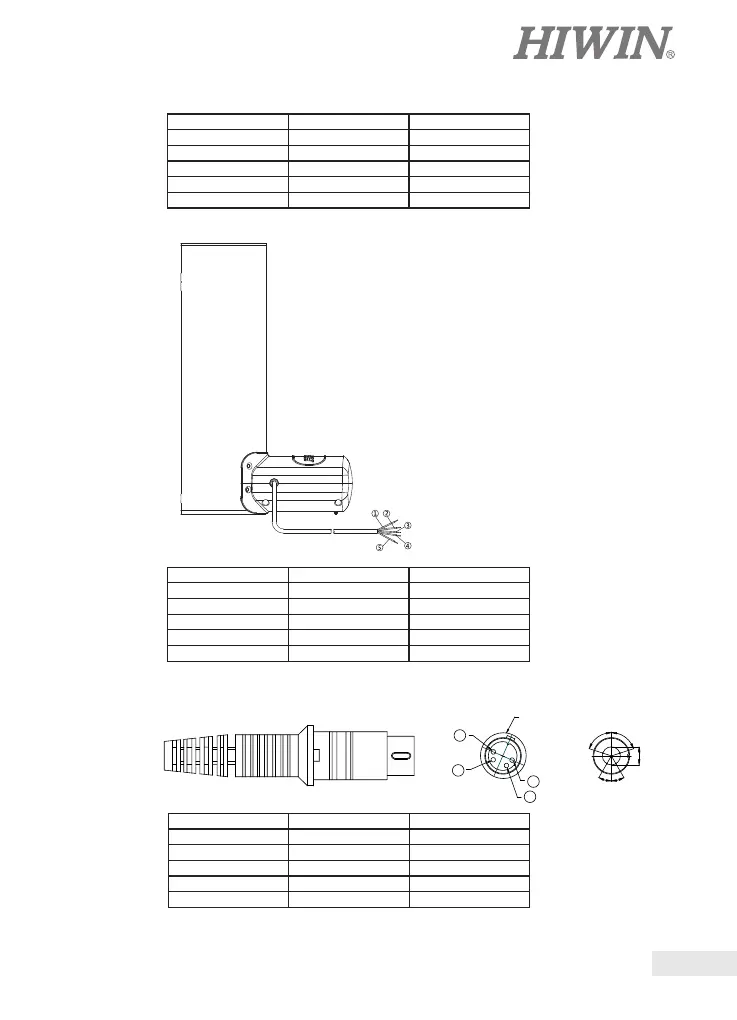

6.4 Bare Wire for Potentiometer
WIRING COLOR REMARK
1 WHITE (AWG18) MOTOR(-)
2 YELLOW (AWG24) OUTPUT
3 GREEN (AWG24) GND
4 RED (AWG24) 24VDC
5 BLACK (AWG18) MOTOR(+)
DIN Connector COLOR REMARK
1 YELLOW OUTPUT
2 BLACK MOTOR(+)
3 WHITE MOTOR(-)
4 RED 24VDC
5 GREEN GND
4
3
1
2
SHELL
36¢X
0.7mm
36¢X
72¢X
72¢X
6.5 4-pin Connectorfor Potentiometer
