Configuration 3-8
© 2005 HMS Industrial Networks AB7607 User manual

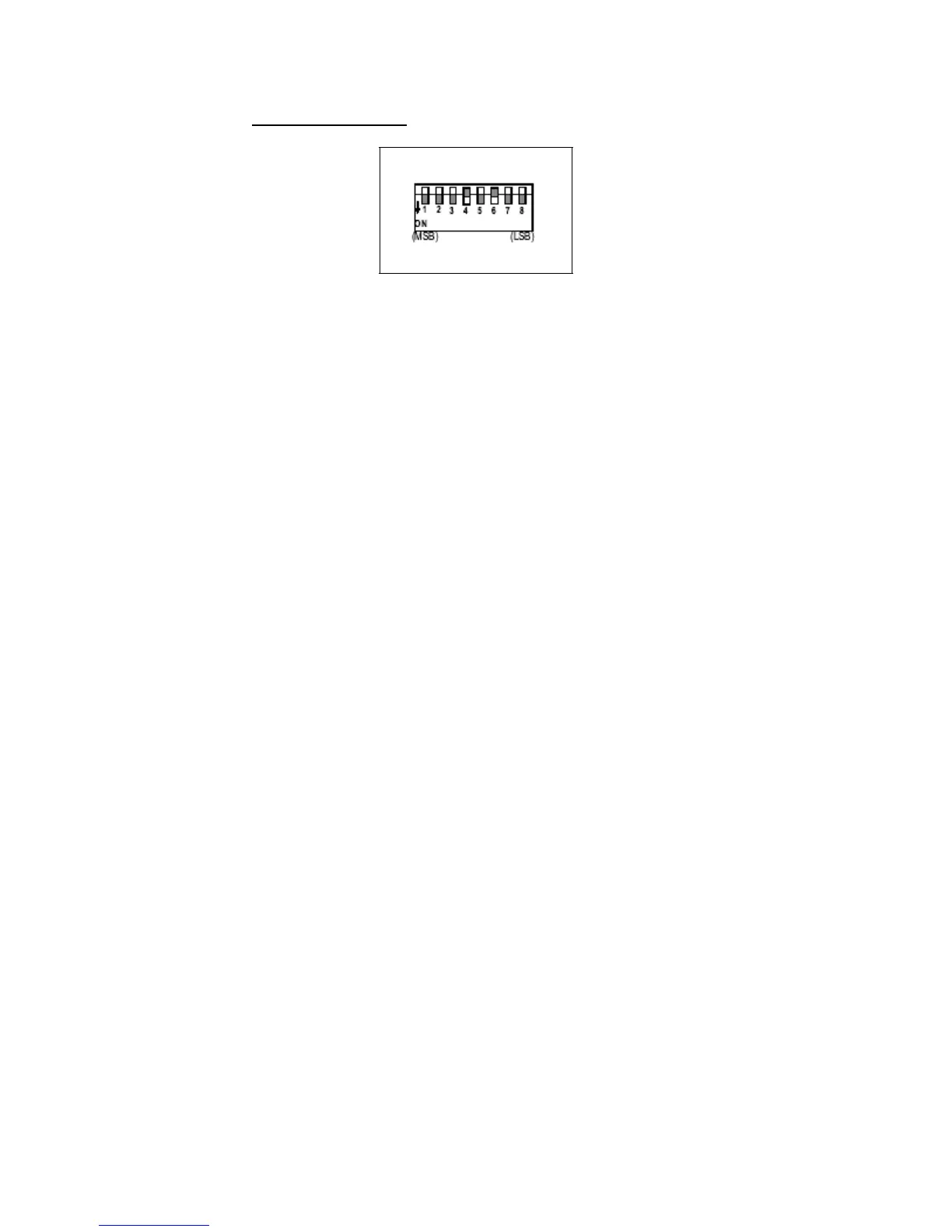

DIP Switch Example
The switches are set to 00010100 (20 decimal) (The switch position is shown in
White in the diagram.)
The IP address of the module will be set to 192.168.1.20.
Note: The numbers on the switches on the IP configuration DIP switch do NOT
correspond to bit locations in the address value. In fact, they are reversed. i.e. bit 0
is set by switch 8.
Setting the IP Address Using DHCP/BootP
When DHCP/BootP is enabled and a DHCP or BootP server is found, the IP
address, Subnet mask, and Gateway address is automatically configured by the
DHCP/BootP server. It can be enabled using the Anybus-X’s Settings web page.
Note: The use of DHCP is the default configuration for the Anybus-X as shipped.
Figure 3-2 IP Configuration DIP Switch
