Hobart Handler 190 User Manual

. A complete Parts List is available at www.HobartWelder.com
OM-923 Page 23

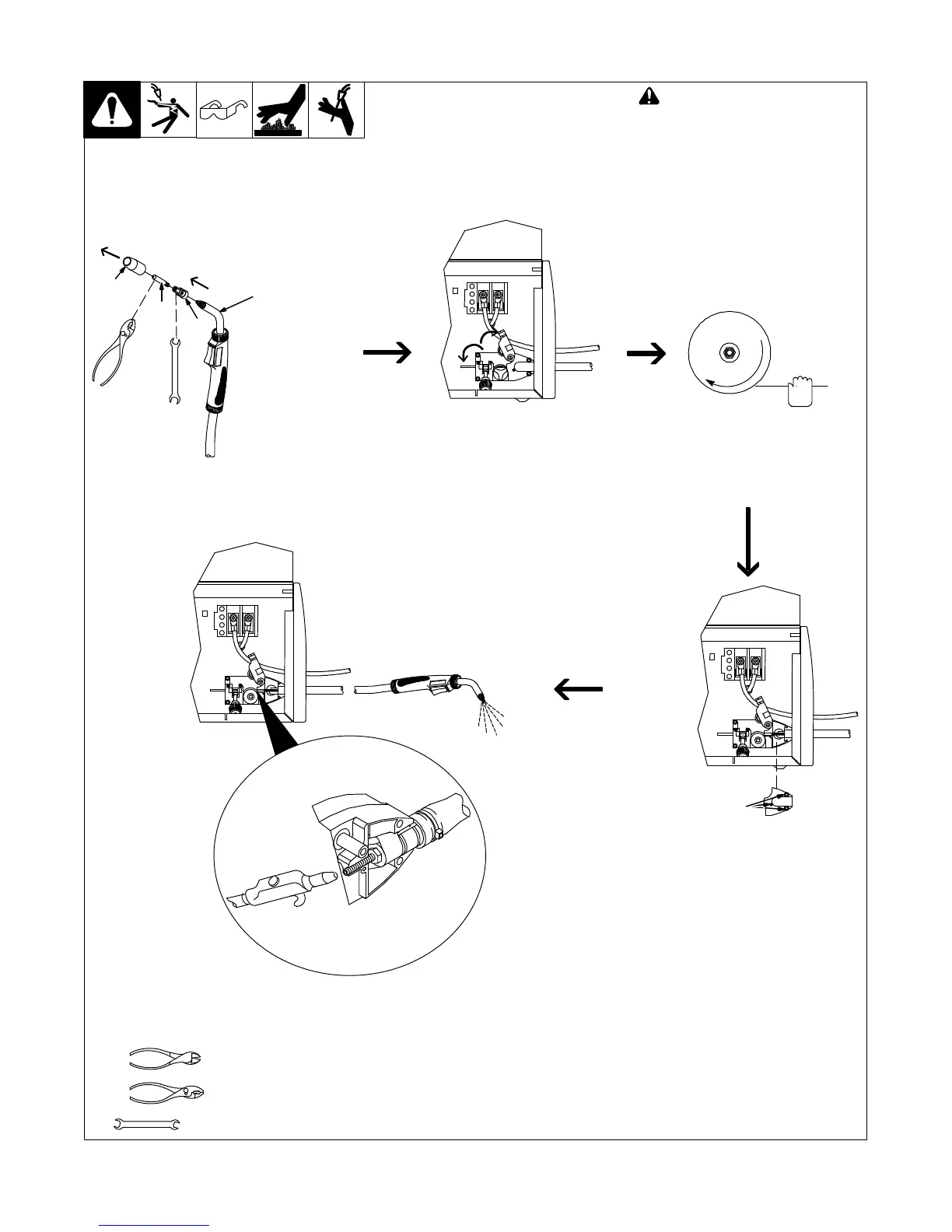

7-6. Cleaning Gun Liner
804 241-A / Ref. 804 123-A / 804 128-A / Ref. 803 837-A
! Turn Off welding power source.
1 Nozzle
2 Contact Tip
3 Adapter
Head
Tube
Tools Needed:
8 mm
Lay gun cable out straight,
and blow out liner.
Remove nozzle. Cut off wire
at contact tip, and remove
contact tip and tip adapter.
. Thread wire according to
Section 5-8.
Reassemble drive cover
and gun in reverse order
from taking it apart.
Open pressure assembly. Retract
wire from liner onto spool.
. Hold wire tightly to keep it
from unraveling. Secure
end of wire at spool.
Remove screws (3) from
cover, and remove cover
from wire drive assembly.
8 mm
1
2
3
+ −
+ −
+
−
