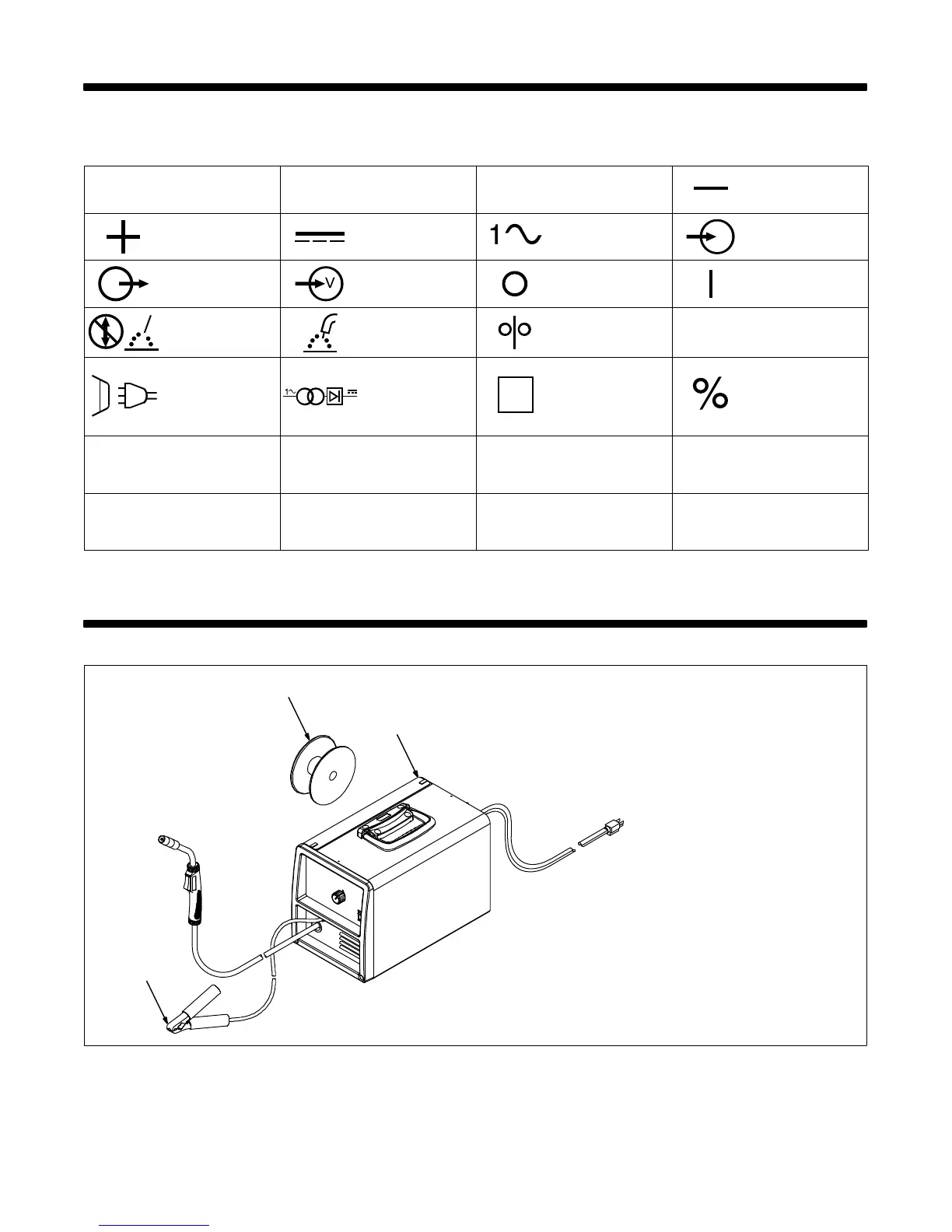

SECTION 3 − DEFINITIONS
3-1. Miscellaneous Symbols And Definitions
. Some symbols are found only on CE products.
A
Amperage
V
Voltage
Hz
Hertz Negative
Positive
Direct Current
(DC)
Single Phase Input
Output Voltage Input Off On
Do Not Switch
While Welding
Flux Cored Arc
Welding (FCAW)
Wire Feed
X
Duty Cycle
Line Connection
Single Phase
Transformer-
Rectifier
S
Suitable For
Welding In An
Environment With
Increased Risk Of
Electric Shock
Percent
U
0
Rated No Load
Voltage (Average) U
1
Primary Voltage
U
2
Conventional Load
Voltage
I
1
Rated Supply
Current
I
2
Rated Welding
Current
SECTION 4 − SPECIFICATIONS
4-1. Included With Your Unit
1 Welding Power Source
With:
S 7 ft (2.3 m) 115 Volt Primary
Cord With Plug
S H-9B Welding Gun With 8
Ft. (2.6 m) Cable
S 10 ft (3 m) Work Cable
2 Work Clamp
3 Sample Spool Flux-Cored
Welding Wire
Also Included are flux cored
nozzle and contact tip.
. Some assembly is required.
For options and accessories,
and consumables information
contact your distributor.
804 122-C
1
2
3

Hobart Handler 190 Specifications

General

Brand	Hobart
Model	Handler 190
Category	Welding System
Language	English
