Hobart Handler 190 User Manual

OM-923 Page 28

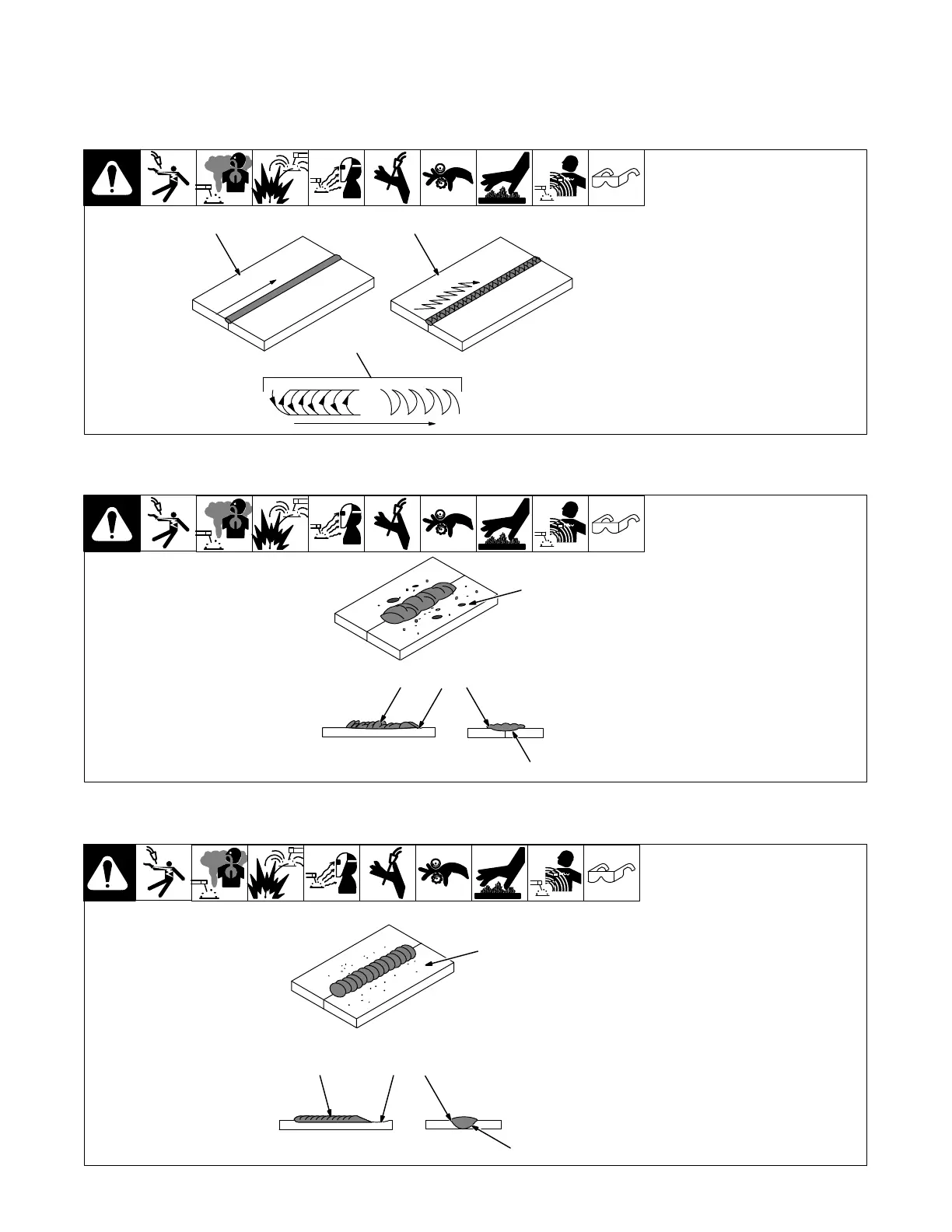

SECTION 9 − FCAW WELDING GUIDELINES
9-1. Typical FCAW Process Connections
Wire Feeder/
Power Source
Workpiece
Gun
Work Clamp
Self-Shielding Flux
Core Wire
FCAW1 2011−03 − Ref. 803 444-A
! Weld current can damage
electronic parts in vehicles.
Disconnect both battery
cables before welding on a
vehicle. Place work clamp as
close to the weld as possible.
Notes
Work like a Pro!
Pros weld and cut
safely. Read the
safety rules at
the beginning
of this manual.

Hobart Handler 190 Specifications

General

Input Voltage	230 V
Amperage Output	25-190 A
Weldable Materials	Steel, Stainless Steel, Aluminum
Weight	68 lbs
Spool Size Capacity	4 or 8 inch
Input Current	20 A
Input Frequency	60 Hz
Processes	MIG (GMAW), Flux-Cored (FCAW)
Input Phase	Single Phase
Duty Cycle	30% at 130 A
Material Thickness	24 ga. - 5/16 in. (Steel)
Wire Size Range	0.023-0.035 in (0.6-0.9 mm) solid, 0.030-0.045 in (0.8-1.2 mm) flux-cored
