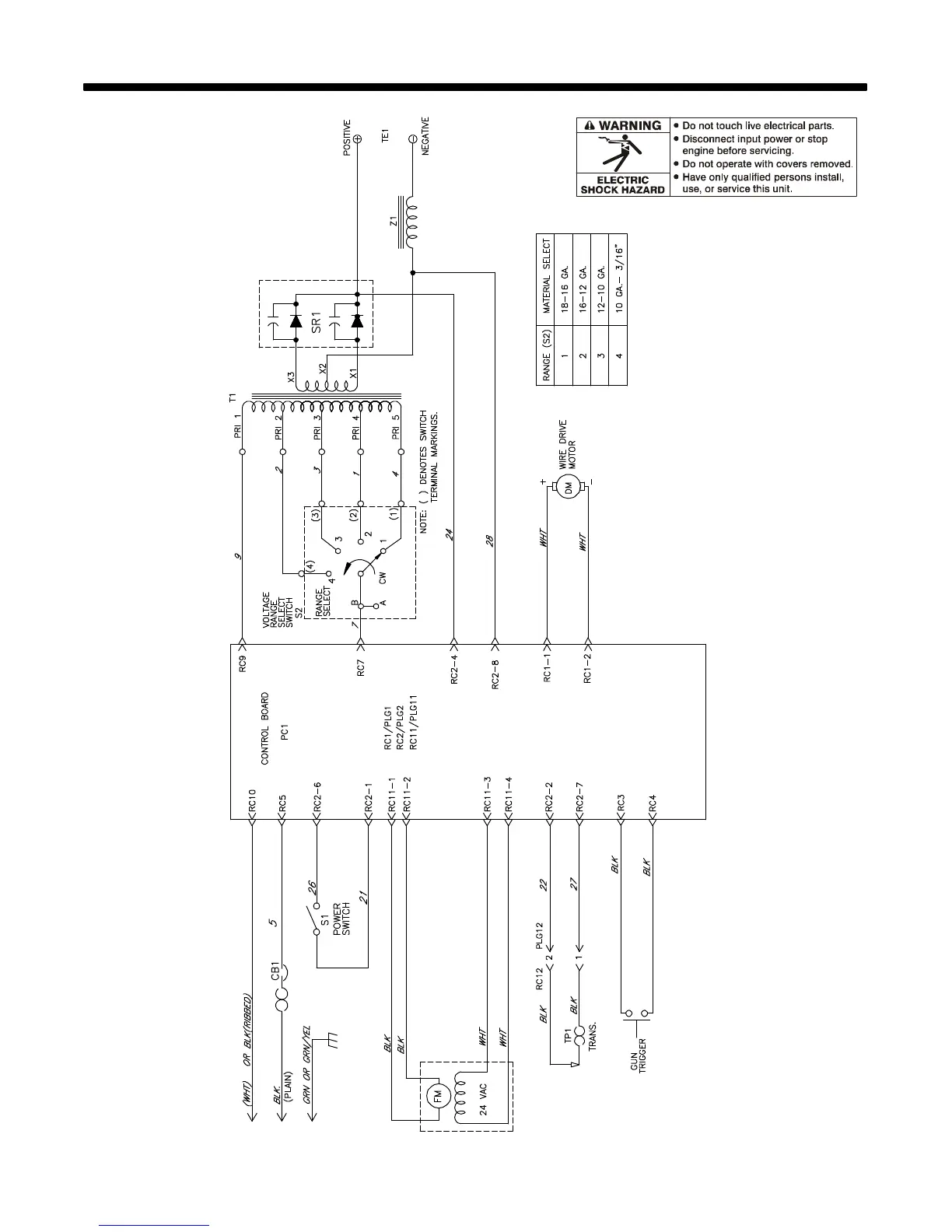

Hobart Handler 190 - Section 8 − Electrical Diagram

Hobart Handler 190
40 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
OM-260 273 Page 29
9-3. Holding And Positioning Welding Gun
. Welding wire is energized when gun trigger is pressed. Before lowering helmet and pressing trigger, be sure wire is no more than 1/2 in. (13 mm)
past end of nozzle, and tip of wire is positioned correctly on seam.
1 Hold Gun and Control Gun
Trigger
2 Workpiece
3 Work Clamp
4 Electrode Extension (Stickout)
Solid Wire 3/8 to 1/2 in.
(9 to 13 mm)
5 Cradle Gun and Rest Hand on
Workpiece
2
3
5
4
90 90
0-15
45
45
1
0-15
S-0421-A
End View of Work Angle Side View of Gun Angle
GROOVE WELDS
End View of Work Angle Side View of Gun Angle
FILLET WELDS
9-4. Conditions That Affect Weld Bead Shape
. Weld bead shape depends on gun angle, direction of travel, electrode extension (stickout), travel speed, thickness of base metal, wire feed speed
(weld current), and voltage.
Slow
FILLET WELD ELECTODE EXTENSIONS (STICKOUT)
ELECTRODE EXTENSIONS (STICKOUT)
GUN ANGLES AND WELD BEAD PROFILES
10
10
GUN TRAVEL SPEED
S-0634
Push
Perpendicular
Drag
Short Normal Long
Short Normal Long
Normal Fast
