3.13 Laser spot
The laser spot of the UST is as shown in figure 3-12. The spread of laser spot differs on the front and side
of the unit.
*
The size value is for reference only.

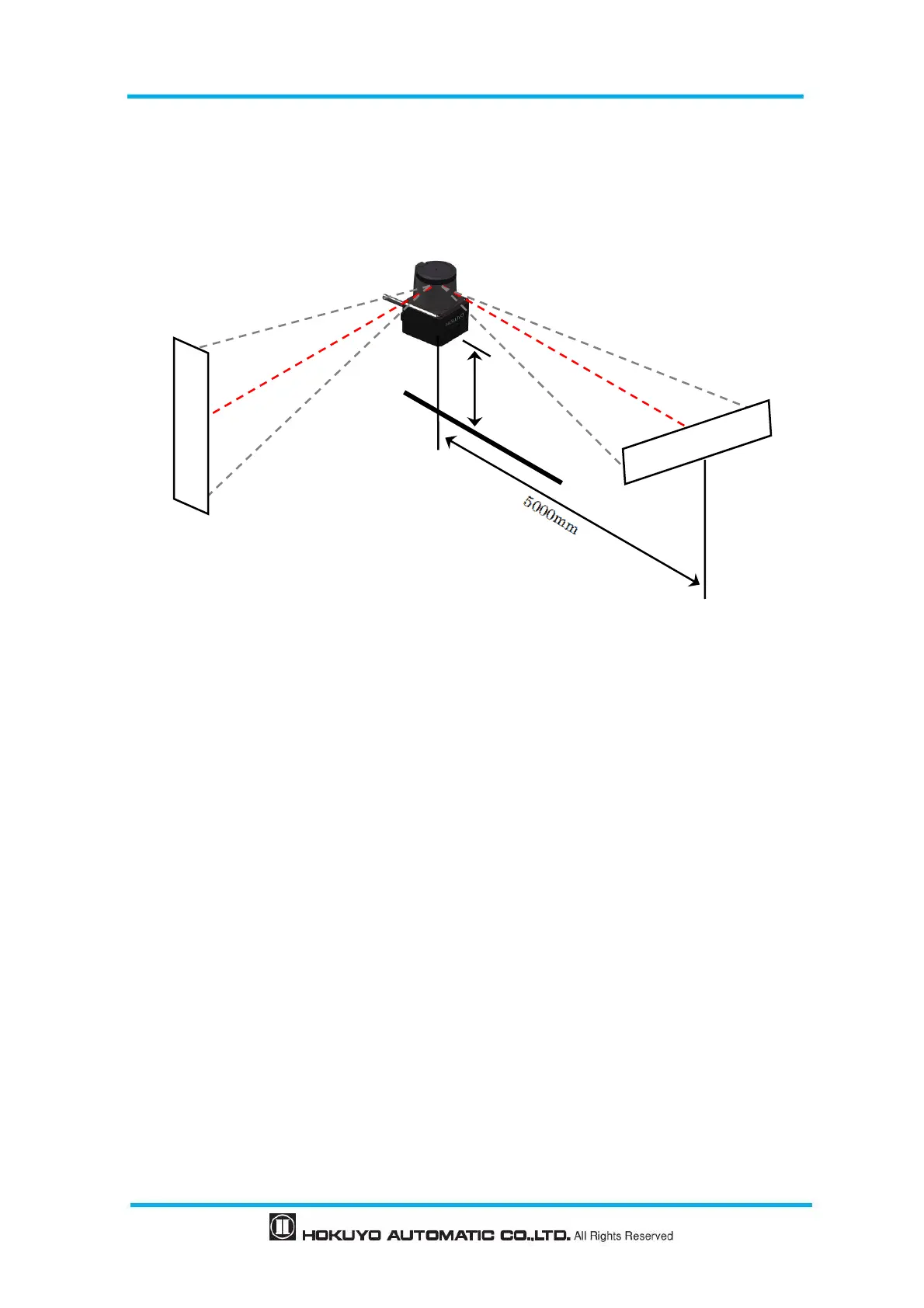

Figure 3-12 Size of laser spot
Side view
15×80mm
Front view
80×5mm
200mm
Floor surface
