6.5 RS422 (For UST-05LA only)

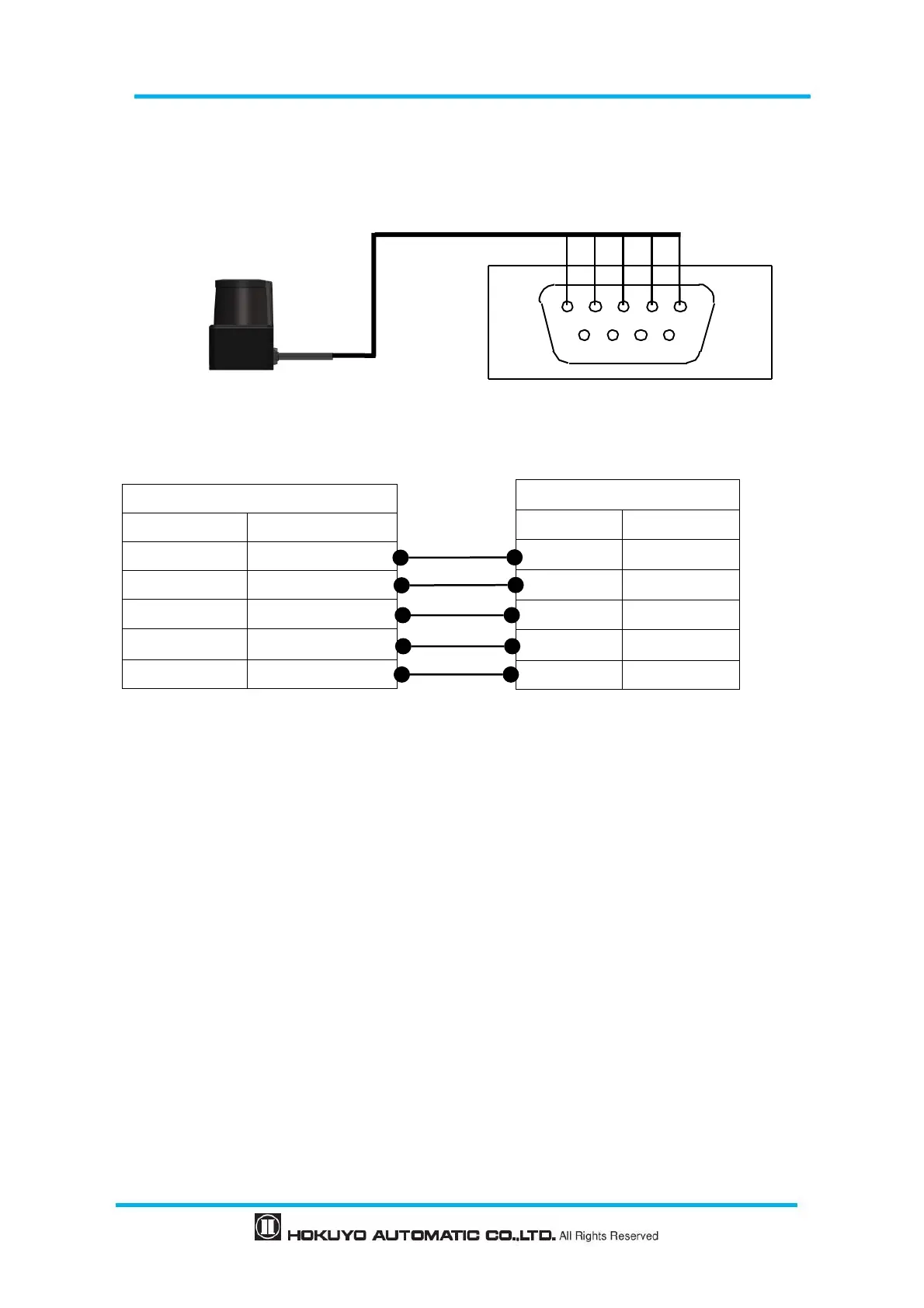

Figure 6-3 shows the example of connection of RS422
Figure 6-3 Example of RS422 Connection
The serial baud rates can be selected from 115.2kbps (default), 230.4kbps, 460.8kbps, and 921.6kbps and
can be set by using the Area Designer.
UST
Wire color
Signal
Pink
RS422 GND
Yellow (Red)
RS422 TXD+
Yellow (Black)
RS422 TXD-
Light Blue (Red）
RS422 RXD+
Light Blue（Black）
RS422 RXD-
RS422 RXD-
D-SUB 9pin
Signal
Pin No.
GND
5
RX+
3
RX-
4
TX+
2
TX-
1
1 5
6 9
D-SUB 9pin male
UST
