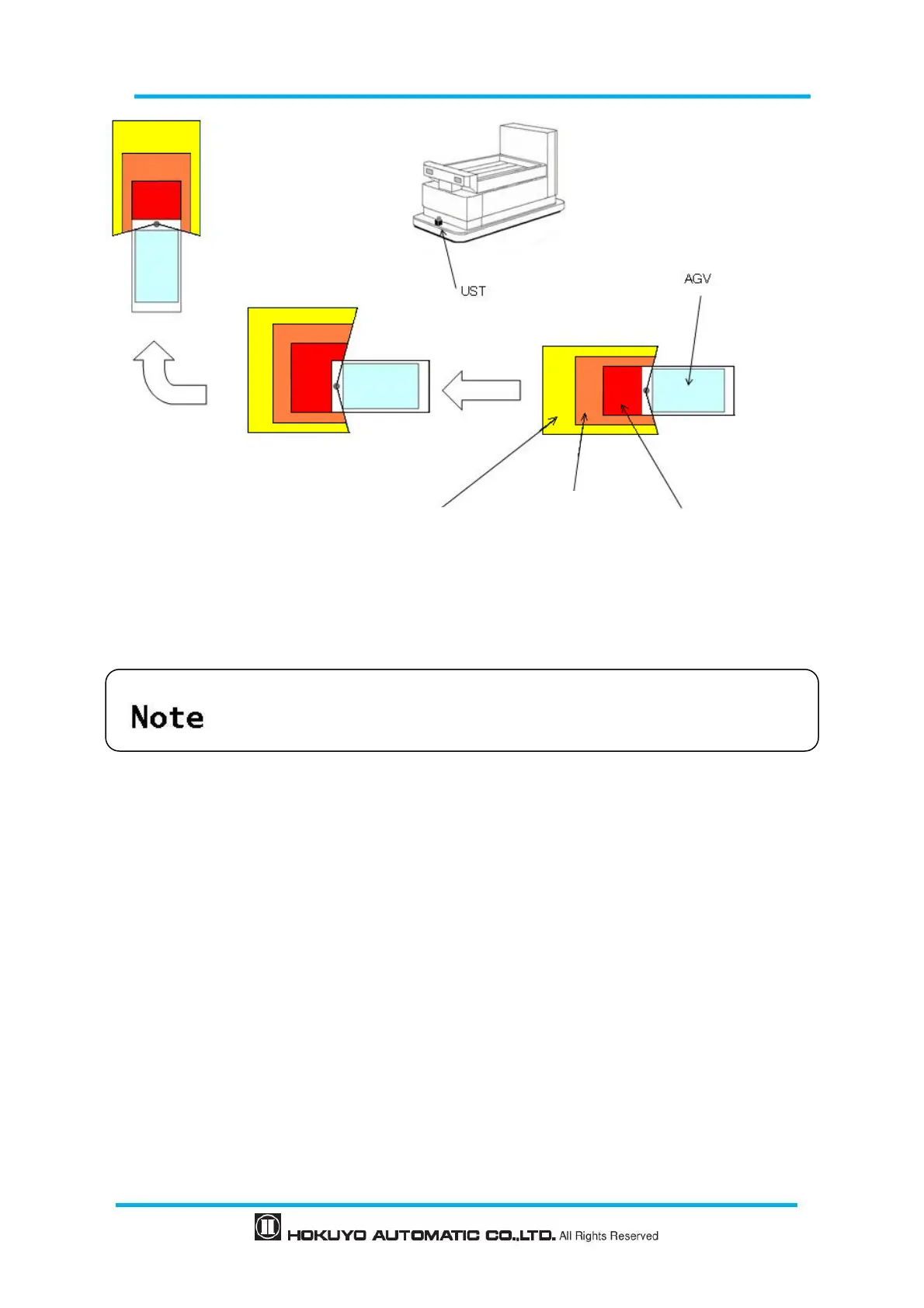

Figure 4-4 Example of area switching of AGV while turning right
 Check that there is no object or background in the configured area. If any object
is detected then output 1 to 3 will remain in OFF state.
Output region 2
Output region 1
Output region 3
