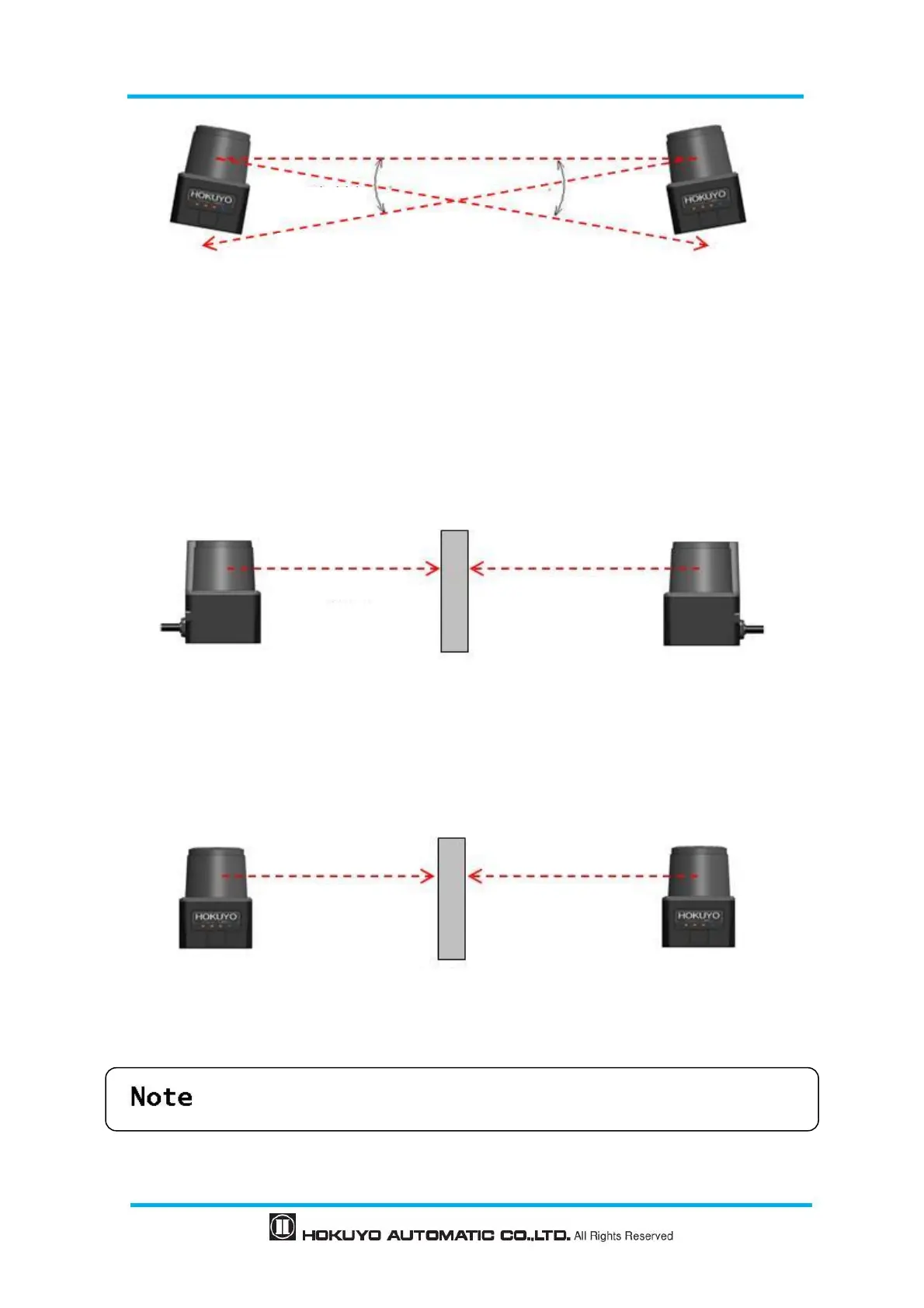

Figure 5-5 Parallel installation
C) Adding shield in between UST
By adding a shield in between the UST units, laser beam cannot reach the opposite sensor so this will
avoid possible mutual interference
Figure 5-6 Opposite facing installation
Figure 5-7 Parallel installation
Material must be of solid opaque non-transparent material.
