Important: The screws that hold the auxiliary caster bars must be re-tightened
(Figure 3-12) to prevent the unit from dropping when moved.

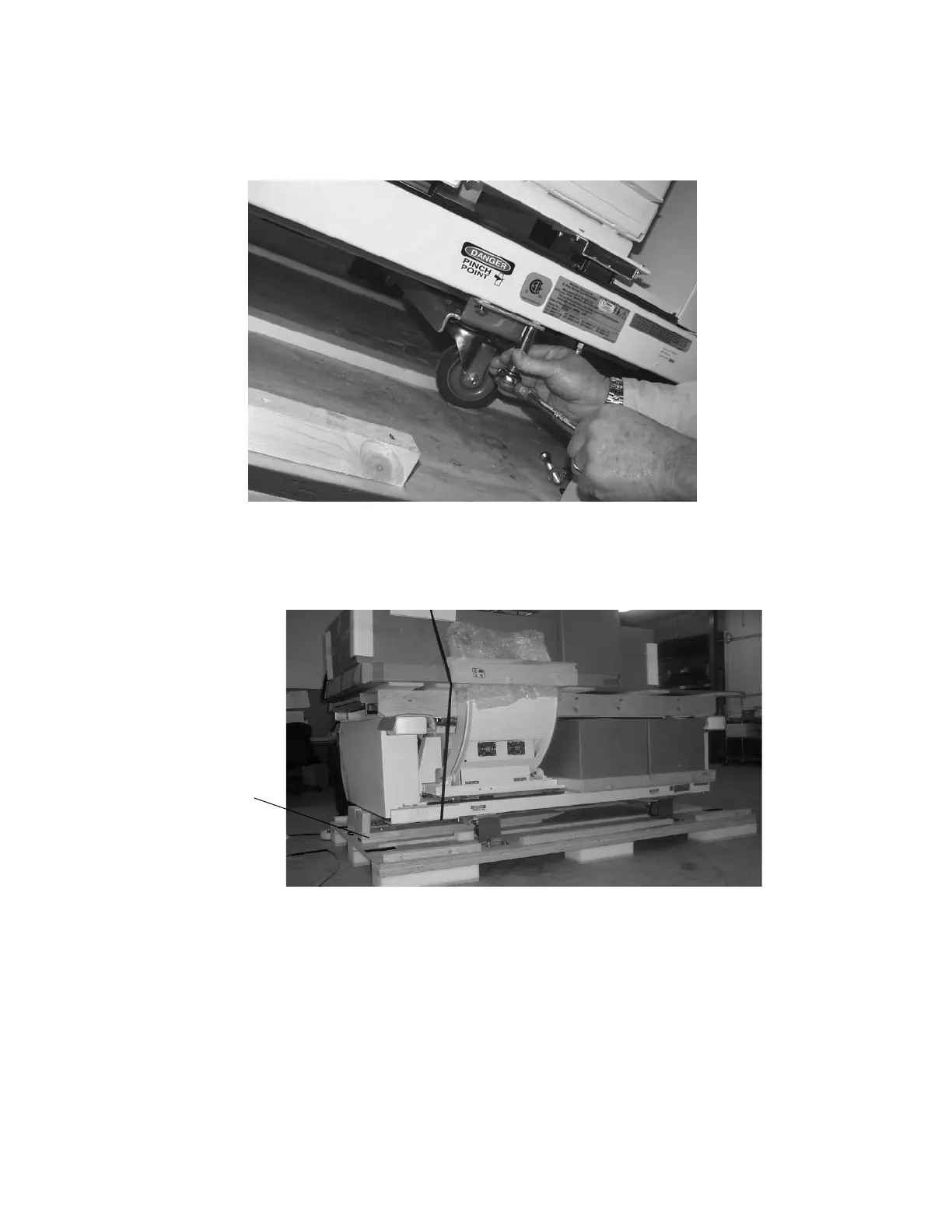

Figure 3-12. Re-tighten Caster Bar Screws
2. Locate the two off-load ramps supplied with the unit. Ramps are attached to the
shipping skid base (Figure 3-13).
Figure 3-13. Off-load Ramps (as packed)
3. Install the two off-load ramps. Ramps may be installed at the end of the skid
(Figure 3-14), or the side of the skid (Figure 3-15).
