Discovery QDR Series Technical Manual
3-14

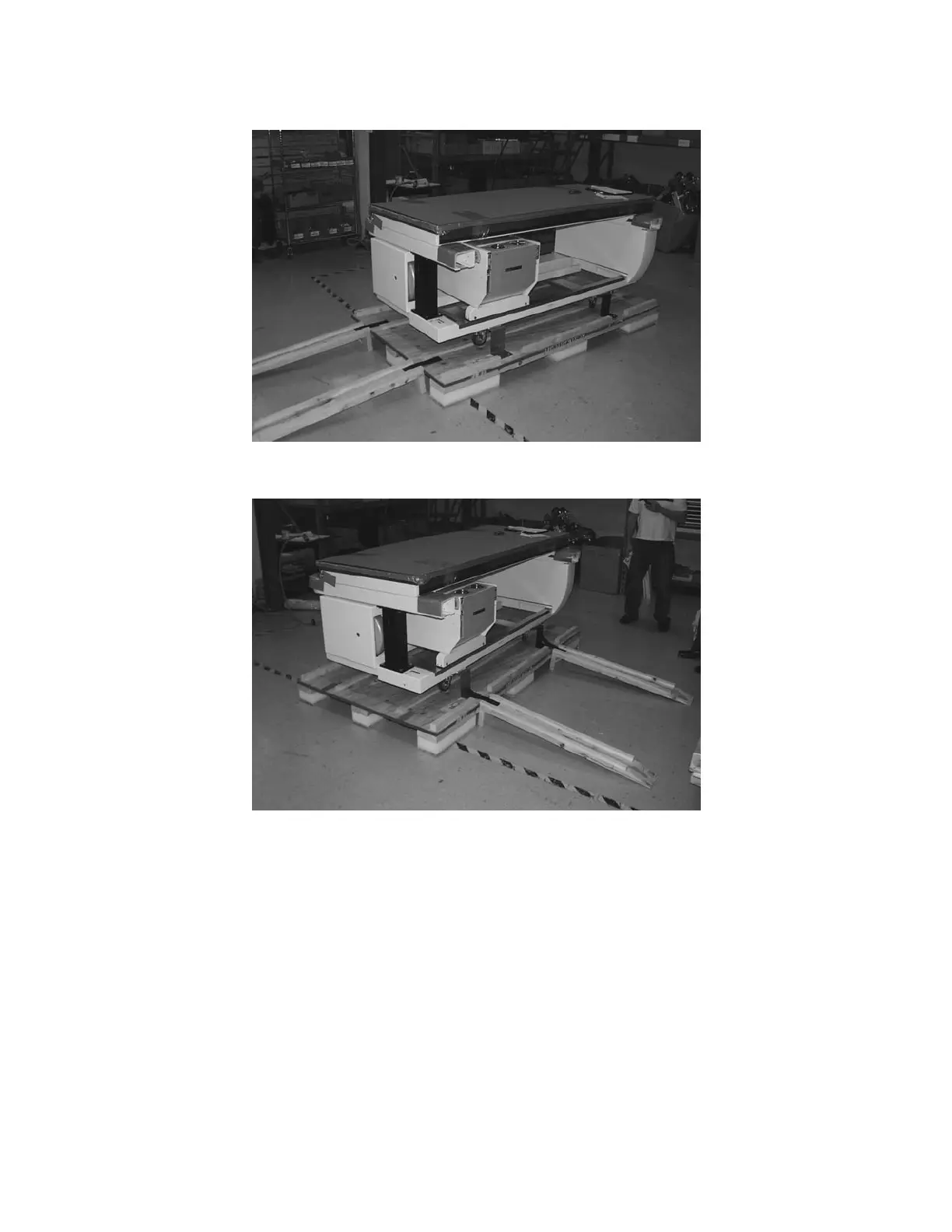

Figure 3-14. Ramps Installed at End of Skid
Figure 3-15. Ramps Installed at Side of Skid
4. Move the unit down the ramp and away from the skid.
5. If hallways to the destination room are wide enough to move the unit in the hori-
zontal position, move the unit and everything that shipped with it to the destina-
tion room. Continue the install by following the procedure starting at Step 2 of
Setting Up Unit on
Page 16 of this addendum.
If the unit must be placed in the vertical position continue with the procedure
below.
