3.2.8.1 Stand Unit on End (if necessary)
1. Attach the caster bars and cross brace located in the separate shipping box
(Figure 3-16).

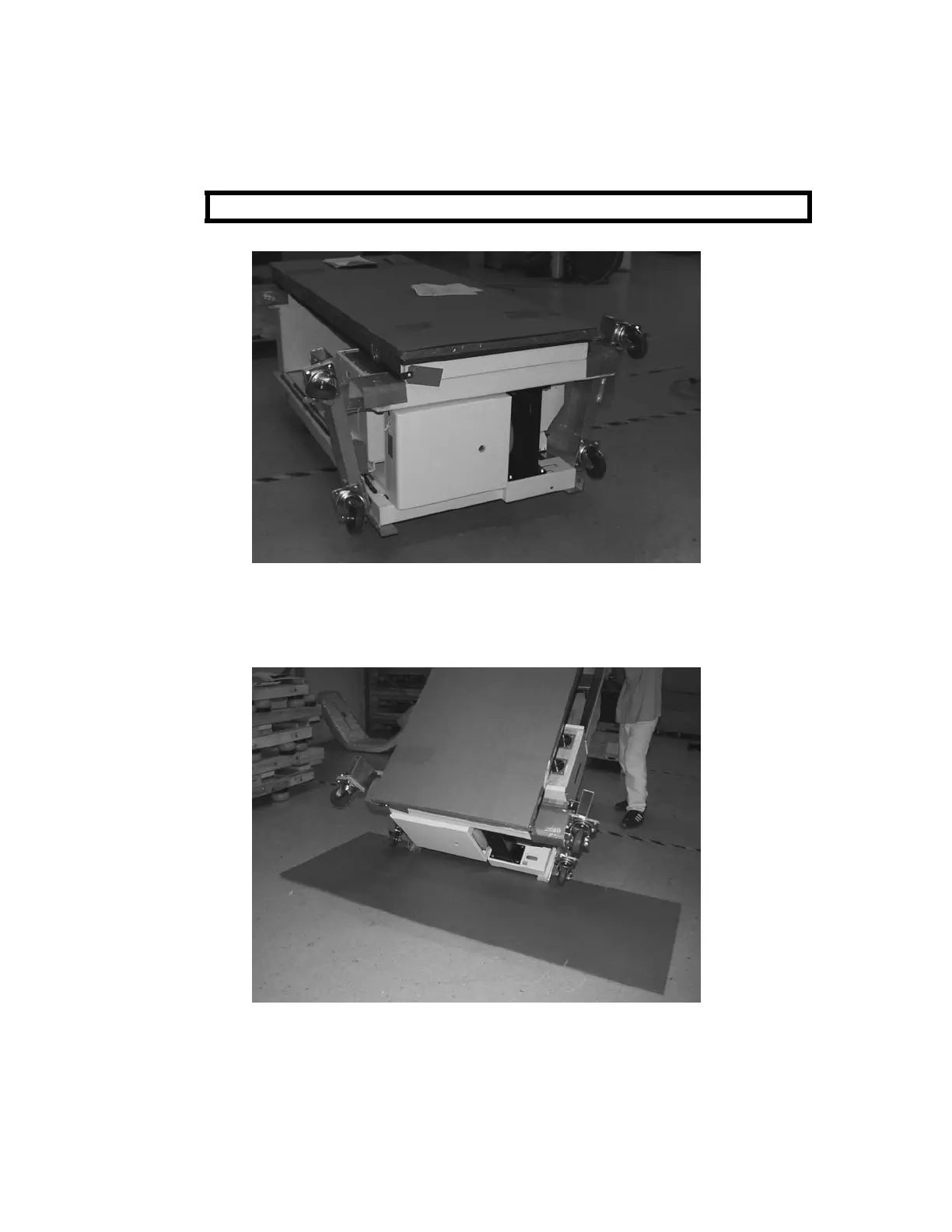

Figure 3-16. Caster Bars Installed
2. With two people, tip the unit on end, Figure 3-17 and Figure 3-18 (cardboard, or
equivalent, can be used to protect the floor).
Figure 3-17. Tipping Unit on End
WARNING: Cross brace must be installed before tipping the unit on its end.
