Holtek HT66F002 - 8-pin SOP (150 mil) Outline Dimensions

Rev. 1.71 136 April 11, 2017 Rev. 1.71 137 April 11, 2017
HT66F002/HT66F0025/HT66F003/HT66F004
Cost-Effective A/D Flash MCU with EEPROM
HT66F002/HT66F0025/HT66F003/HT66F004
Cost-Effective A/D Flash MCU with EEPROM

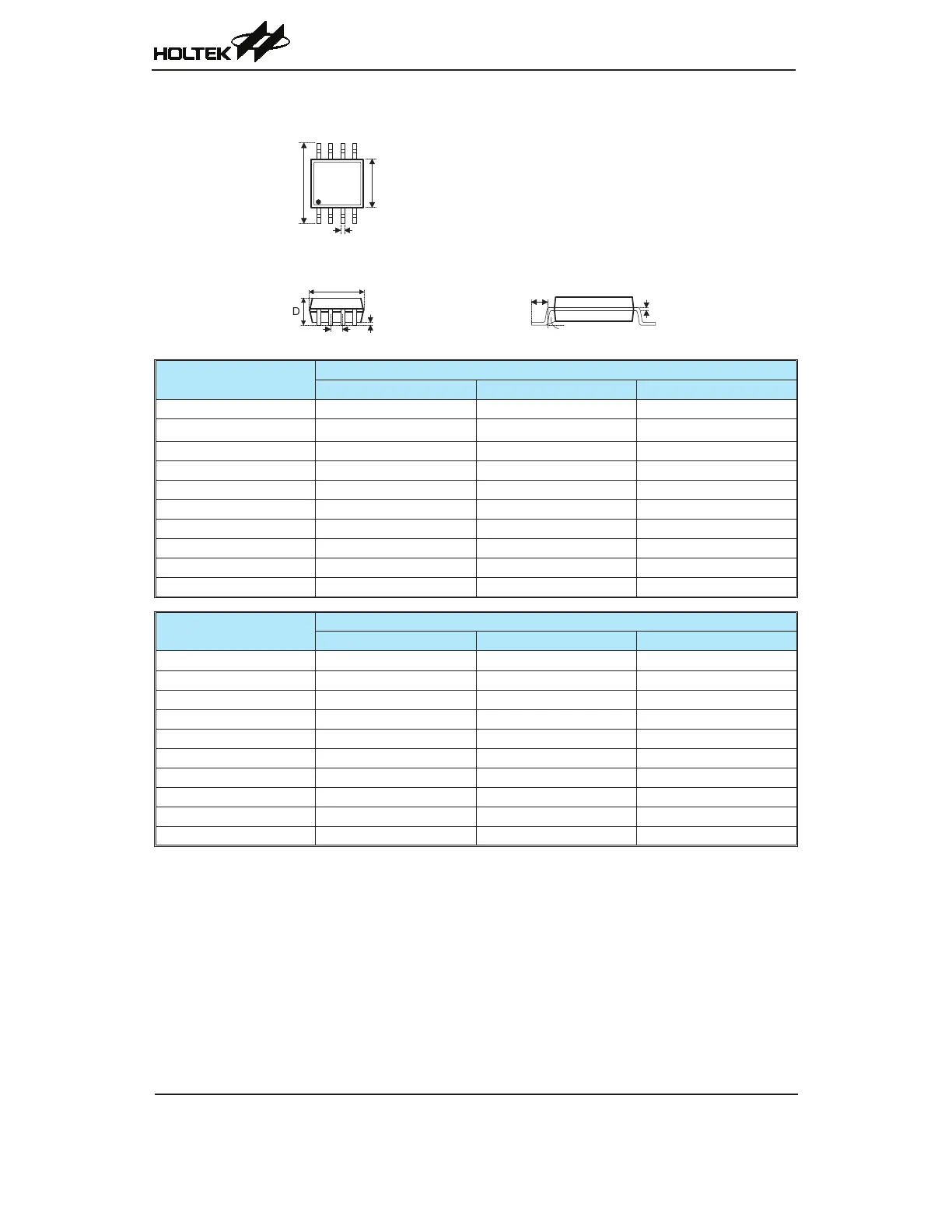

8-pin SOP (150mil) Outline Dimensions














Symbol
Dimensions in inch
Min. Nom. Max.
A — 0.236 BSC —
B — 0.154 BSC —
C 0.012 — 0.020
C’ — 0.193 BSC —
D — — 0.069
E — 0.050 BSC —
F 0.004 — 0.010
G 0.016 — 0.050
H 0.004 — 0.010
α 0° — 8°
Symbol
Dimensions in mm
Min. Nom. Max.
A — 6.00 BSC —
B — 3.90 BSC —
C 0.31 — 0.51
C’ — 4.90 BSC —
D — — 1.75
E — 1.27 BSC —
F 0.10 — 0.25
G 0.40 — 1.27
H 0.10 — 0.25
α 0° — 8°
