Holtek HT66F002 User Manual

Rev. 1.71 138 April 11, 2017 Rev. 1.71 139 April 11, 2017
HT66F002/HT66F0025/HT66F003/HT66F004
Cost-Effective A/D Flash MCU with EEPROM
HT66F002/HT66F0025/HT66F003/HT66F004
Cost-Effective A/D Flash MCU with EEPROM

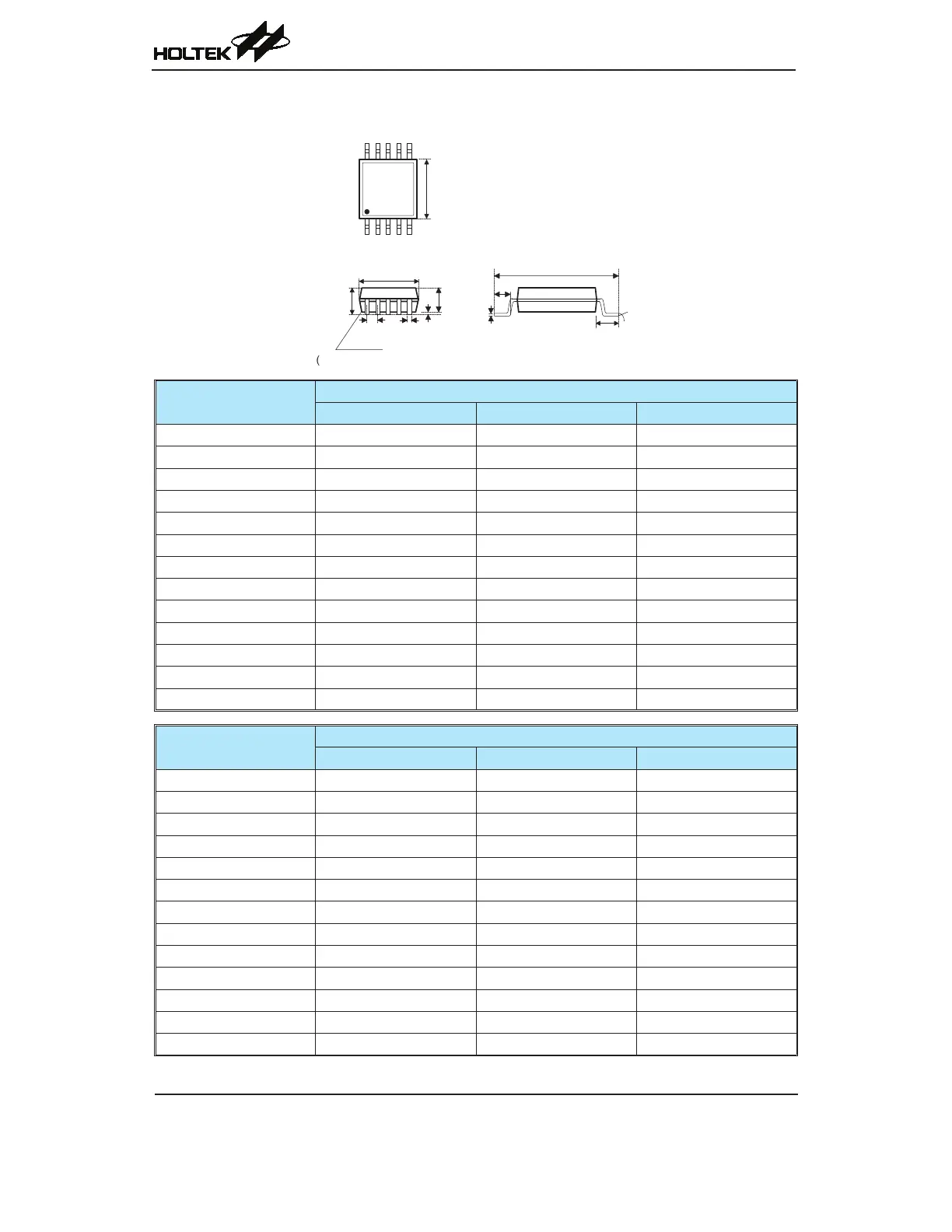

10-pin MSOP Outline Dimensions







  










Symbol
Dimensions in inch
Min. Nom. Max.
A — — 0.043
A1 0.000 — 0.006
A2 0.030 0.033 0.037
B 0.007 — 0.013
C 0.003 — 0.009
D — 0.118 BSC —
E — 0.193 BSC —
E1 — 0.118 BSC —
e — 0.020 BSC —
L 0.016 0.024 0.031
L1 — 0.037 BSC —
y — 0.004 —
θ 0° — 8°
Symbol
Dimensions in mm
Min. Nom. Max.
A — — 1.10
A1 0.00 — 0.15
A2 0.75 0.85 0.95
B 0.17 — 0.33
C 0.08 — 0.23
D — 3.0 BSC —
E — 4.9 BSC —
E1 — 3.0 BSC —
e — 0.5 BSC —
L 0.40 0.60 0.80
L1 — 0.95 BSC —
y — 0.1 —
θ 0° — 8°
