HT66F002/HT66F0025/HT66F003/HT66F004
Cost-Effective A/D Flash MCU with EEPROM
HT66F002/HT66F0025/HT66F003/HT66F004
Cost-Effective A/D Flash MCU with EEPROM
CCRP
CCRA
Counter
Value
Counter Clearedby CCRP
CCRA Int.
Flag STMA0F
CCRP Int.
Flag STMP0F
STM O/P Pin
(ST0OC=1)
ST0ON
PWM Duty Cycle
set by CCRA
PWM Period
set by CCRP
Counter Stop If
ST0ON bit low
Counter reset when
ST0ON returns high
PWM resumes
operation
Output controlled by
Other pin-shared function
Time
ST0DPX=0;ST0M[1:0]=10
ST0POL
Output Inverts
When ST0POL = 1
ST0PAU
Resume
Pause
STM O/P Pin
(ST0OC=0)

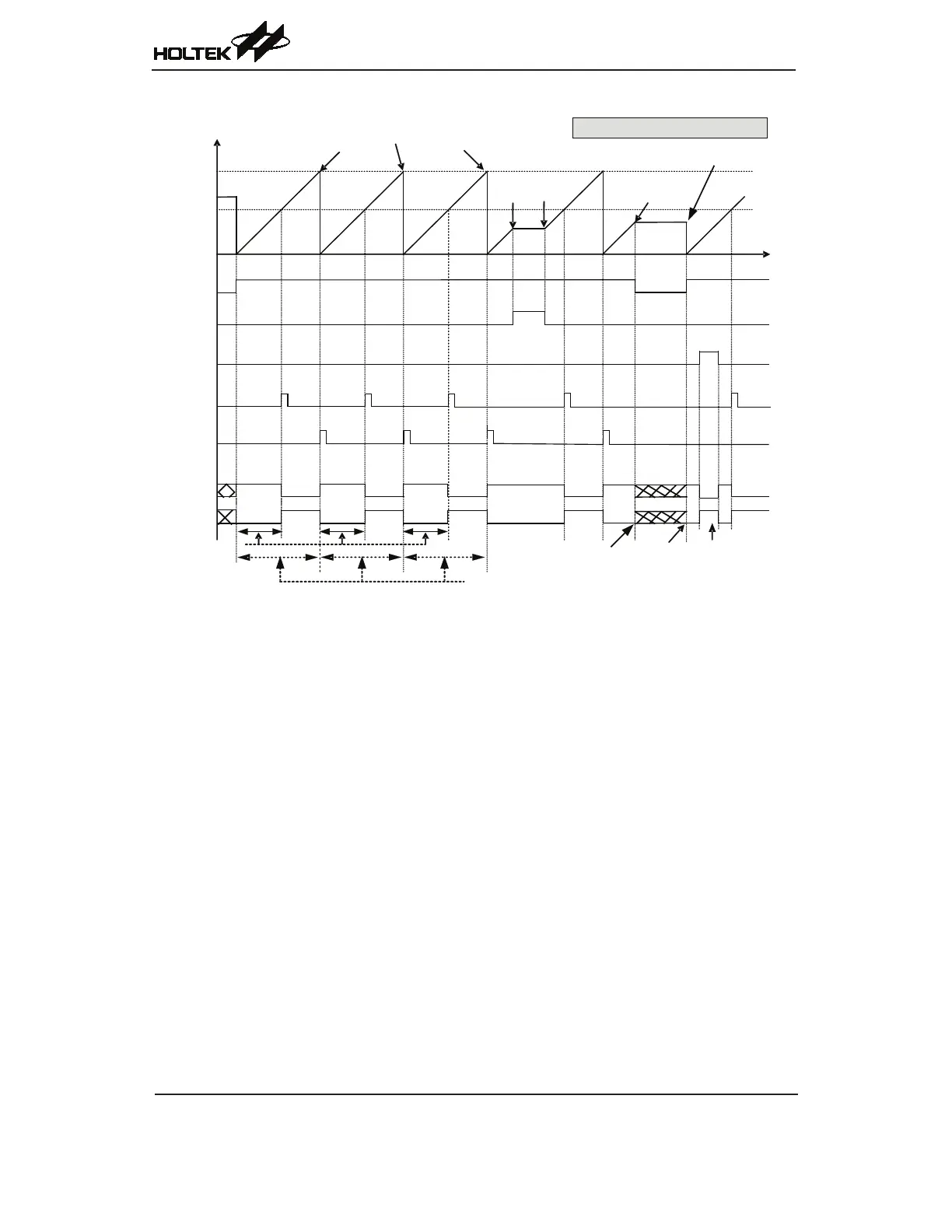

PWM Output Mode – ST0DPX = 0
Note:1.HereST0DPX=0-CounterclearedbyCCRP
2.AcounterclearsetsPWMPeriod
3.TheinternalPWMfunctioncontinuesrunningevenwhenST0IO[1:0]=00or01
4.TheST0CCLRbithasnoinuenceonPWMoperation
