KICKSTARTER/DRIVE AND DRIVEN PULLEYS/CLUTCH
9-8

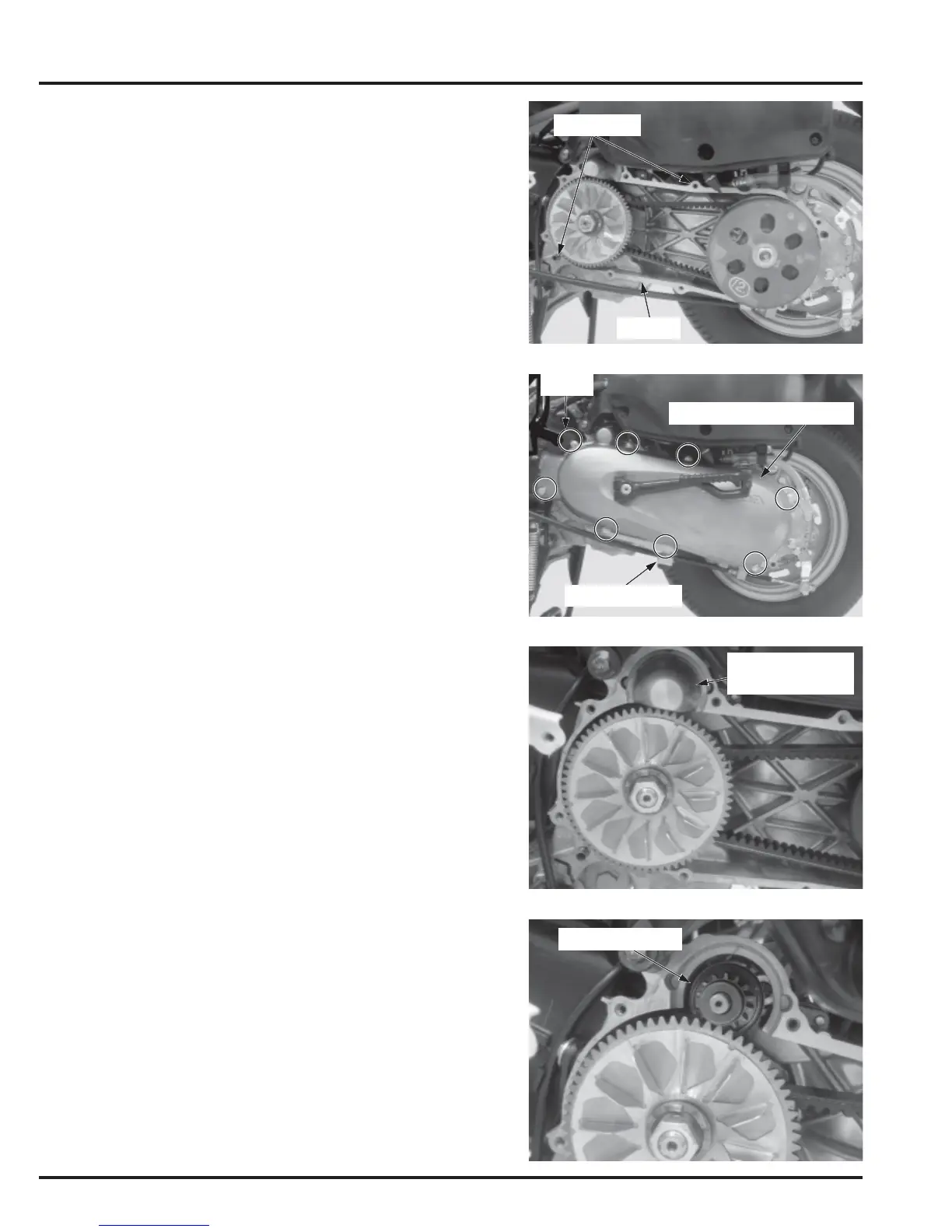

LEFT CRANKCASE COVER
INSTALLATION
Install the dowel pins (2 nos.) and apply liquid gasket.
Install the left crankcase cover and cable holder, and
tighten the bolts (8 nos.) in a crisscross pattern in 2 or 3
steps.
Install the rear brake cable in to the cable holder.
Connect the air duct to the left crankcase cover and tighten
the band screw (1 no.) securely.
After installation, check that the kickstarter pedal
operates properly.
Install the left floor side cover (page 2-5).
Install the pillion step cover.
STARTER PINION
REMOVAL
Remove the left crankcase cover (page 9-3).
Remove the starter pinion holder.
Remove the starter pinion.
GASKET
DOWEL PIN
BOLTS
CABLE HOLDER
LEFT CRANKCASE COVER
STARTER PINION
STARTER PINION
HOLDER
