13-3
FRONT WHEEL/BRAKE/SUSPENSION/STEERING

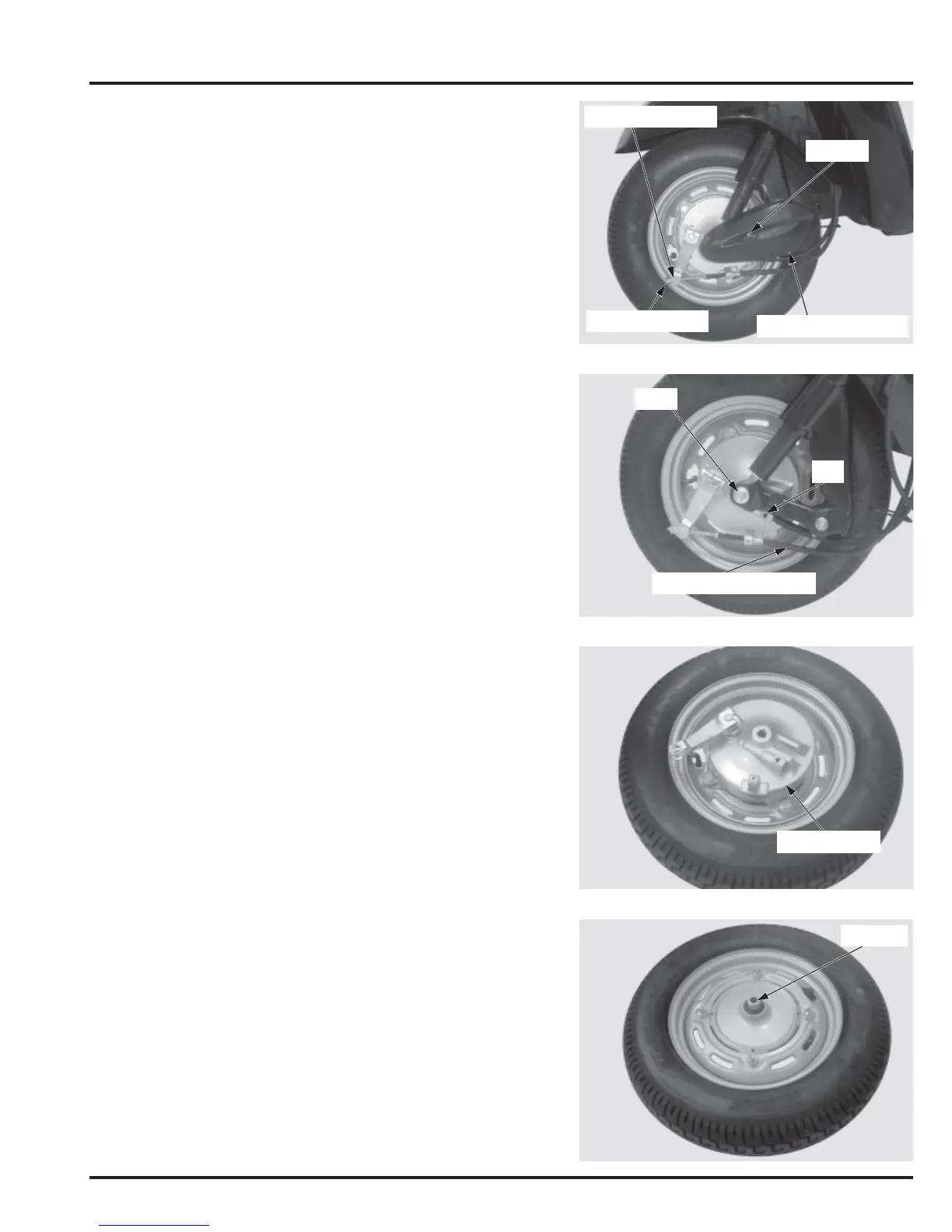

FRONT WHEEL
REMOVAL
Support the scooter on its center stand.
Remove the screw (1 no.) and front fork cover.
Remove the front brake adjusting nut, brake cable, brake
arm joint.
BRAKE PANEL
COLLAR
Push the tab and disconnect the speedometer cable.
Loosen the front axle nut.
Support the frame securely and raise the front wheel off
the ground.
Remove the axle nut, axle and front wheel.
DISASSEMBLY
Remove the brake panel from the left wheel hub.
Remove the collar from the right side of wheel hub.
BRAKE ARM JOINT
ADJUSTING NUT
FRONT FORK COVER
SCREW
AXLE
TA B
SPEEDOMETER CABLE
