3-14
MAINTENANCE
10 – 20 mm
(3/8 – 3/4 in)

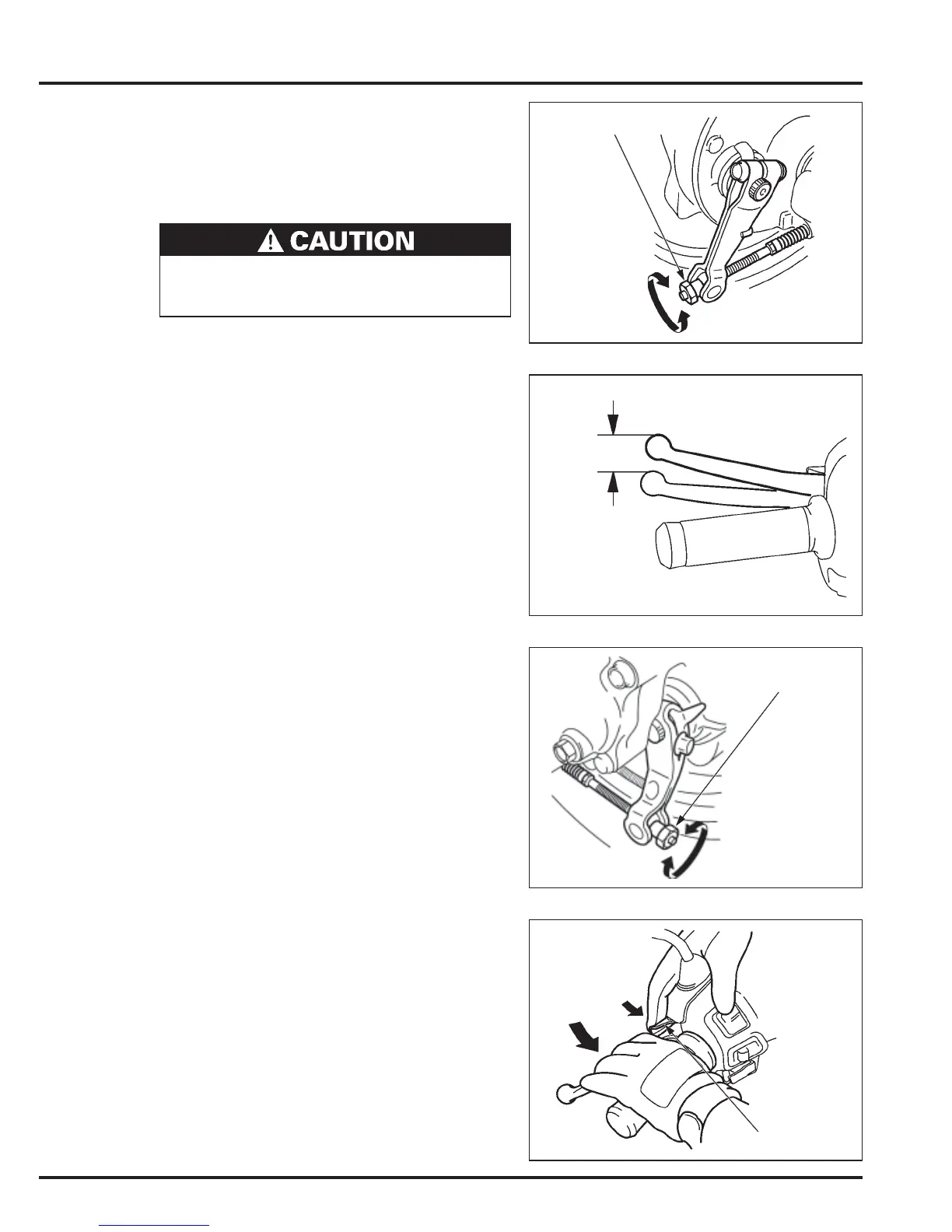

If adjustment is necessary, turn the front brake adjusting
nut.
Check the brake cable for kinks or other damage.
Check that the brake arm, spring and fasterners are in
good condition.
REAR BRAKE
Measure the rear brake lever free play at the tip of the
brake lever.
FREE PLAY: 10 – 20 mm (3/8 – 3/4 in)
If adjustment is necessary, turn the rear brake adjusting
nut.
Check the brake cable for kinks or other damage.
Check that the brake arm, spring and fasterners are in
good condition.
BRAKE LOCK OPERATION
NOTE:
Check the brake lock operation after the rear brake lever
free play check and adjusted.
Squeeze the rear brake lever and set the lock lever.
Check that the rear wheel is locked completely.
BRAKE LOCK LEVER
ADJUSTING NUT
ADJUSTING NUT
while installing Speedometer and brake cable make
sure that both are always routed via the given
hose-clamps
