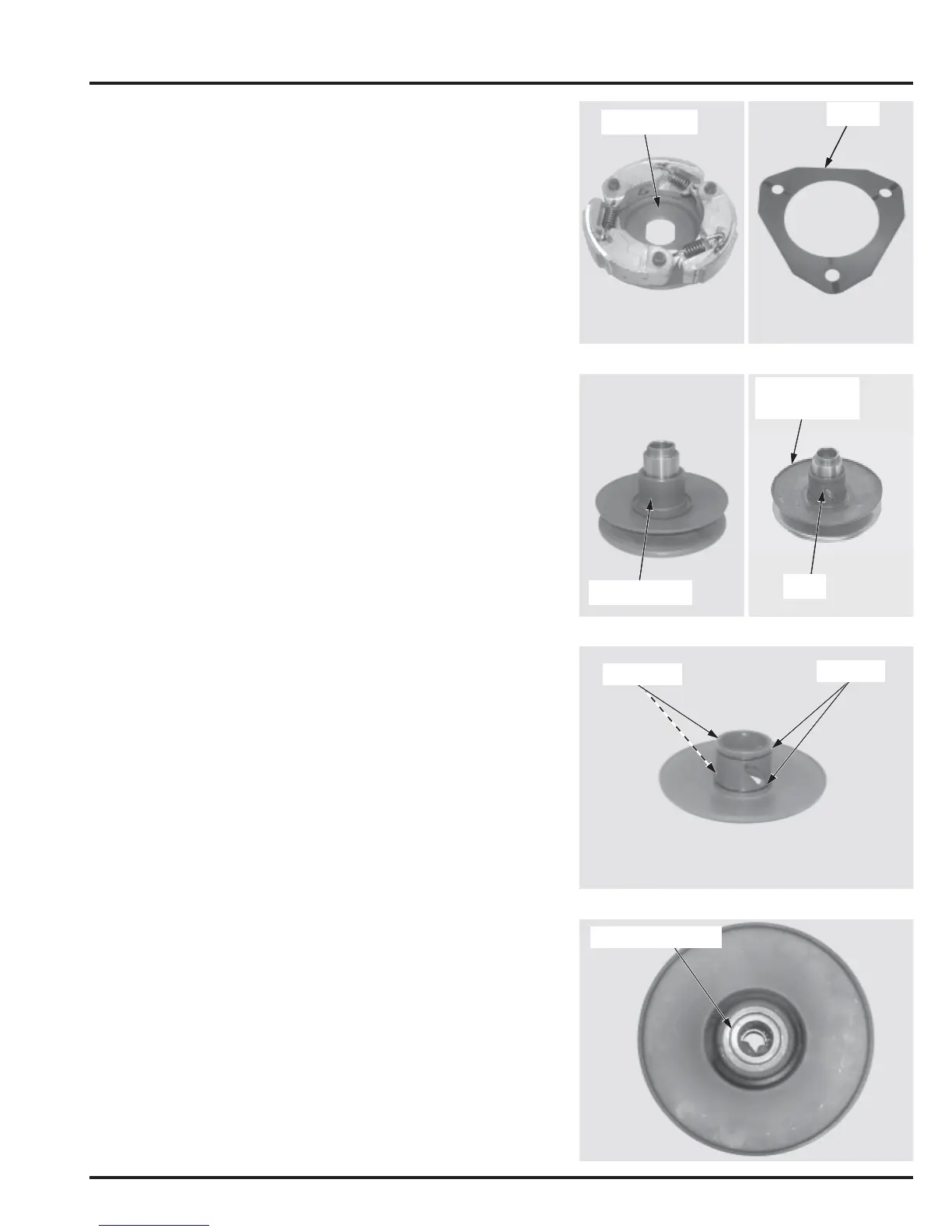

KICKSTARTER/DRIVE AND DRIVEN PULLEYS/CLUTCH
9-13
Remove the seal collar.
Pull out the guide roller pins (3 nos.).
Remove the moveable driven face from the driven face.
Remove the clutch shoe springs and clutch shoes from
the clutch drive plate.
Remove the damper rubbers (3 nos.).
Remove the oil seals and O-rings.
DRIVEN FACE BEARING
REPLACEMENT
Remove the needle bearing using the special tools.
TOOLS:
Bearing remover (Driven face) 070MC – KWP-410
PLATE
DRIVE PLATE
SEAL COLLAR
PINS
MOVABLE
DRIVEN FACE
O-RINGS
OIL SEALS
NEEDLE BEARING
