5-3
FUEL SYSTEM
AIR CLEANER HOUSING
For air cleaner housing cover removal and element
replacement (see page 3-5).

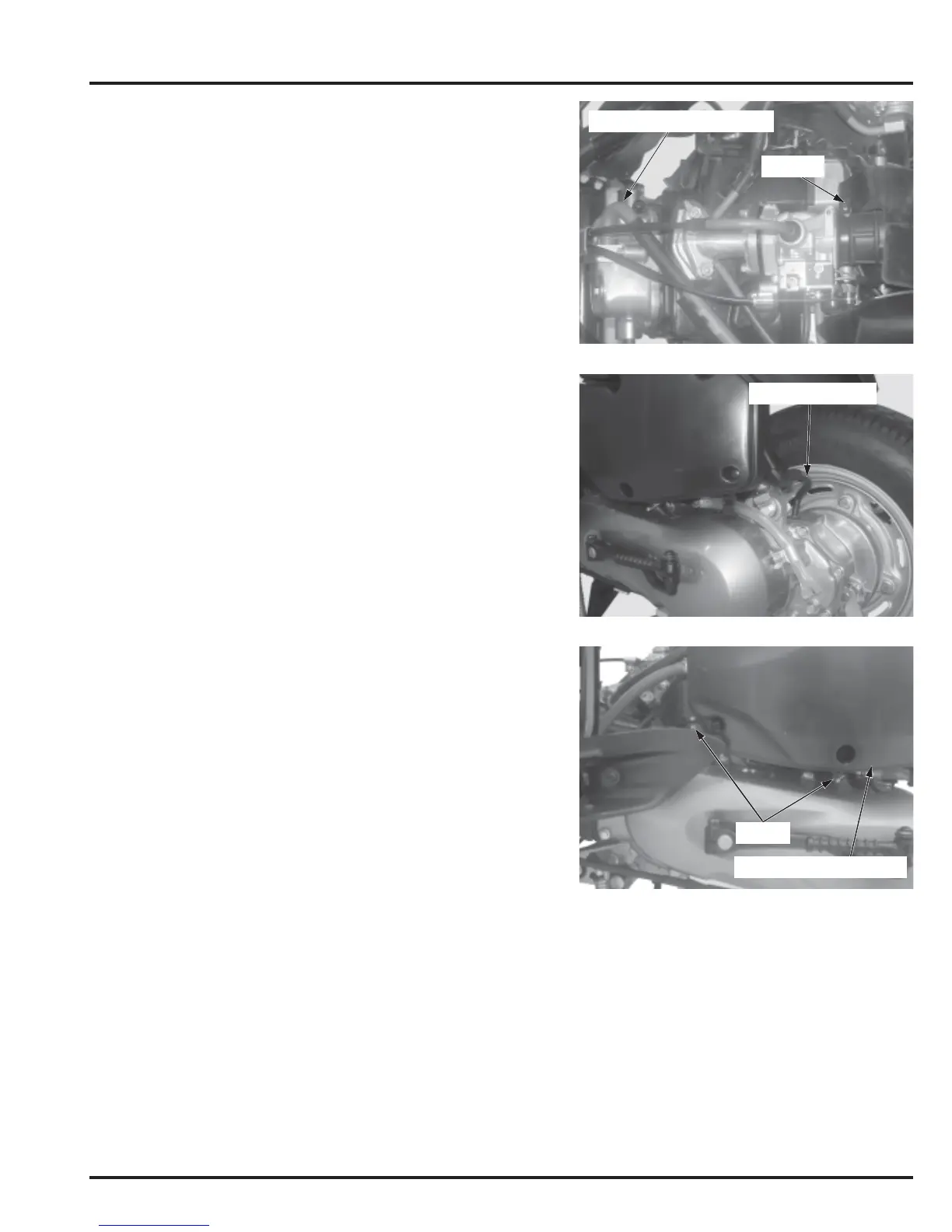

REMOVAL
Lift up the body cover (page 2-3).
Loosen the air cleaner connecting guide band screw.
Disconnect the engine breather hose from the cylinder
head cover.
BREATHER TUBE
AIR CLEANER HOUSING
Disconnect the transmission case breather tube from
the air cleaner housing.
Remove the mounting bolt (2 nos.) and air cleaner
housing.
INSTALLATION
Install the air cleaner housing in the reverse order of
removal.
Route the tubes properly (page 1-16).
Lift down the body cover.
SCREW
ENGINE BREATHER HOSE
BOLTS
